6.37~6.63GHz, 7.87~8.13GHz, 10.87~11.13GHz, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | / | / | 6.37 | ~ | 6.63 | GHz |
| Passband F2 | / | / | 7.87 | ~ | 8.13 | GHz |
| 通带频率f3 | / | / | 10.87 | ~ | 11.13 | GHz |
| Passband VSWR | 1.35 | |||||
| Passband IL | 1.5 | dB | ||||
| Ripple | 0.5 | dB | ||||
| 通带f1抑制度 | 6.15 | GHz≥ | 20 | dBc | ||
| 通带f1抑制度 | 7.1 | GHz≥ | 70 | dBc | ||
| 通带f2抑制度 | 7.65 | GHz≥ | 20 | dBc | ||
| 通带f2抑制度 | 8.6 | GHz≥ | 70 | dBc | ||
| 通带f3抑制度 | 10.65 | GHz≥ | 20 | dBc | ||
| 通带f3抑制度 | 11.6 | GHz≥ | 70 | dBc |

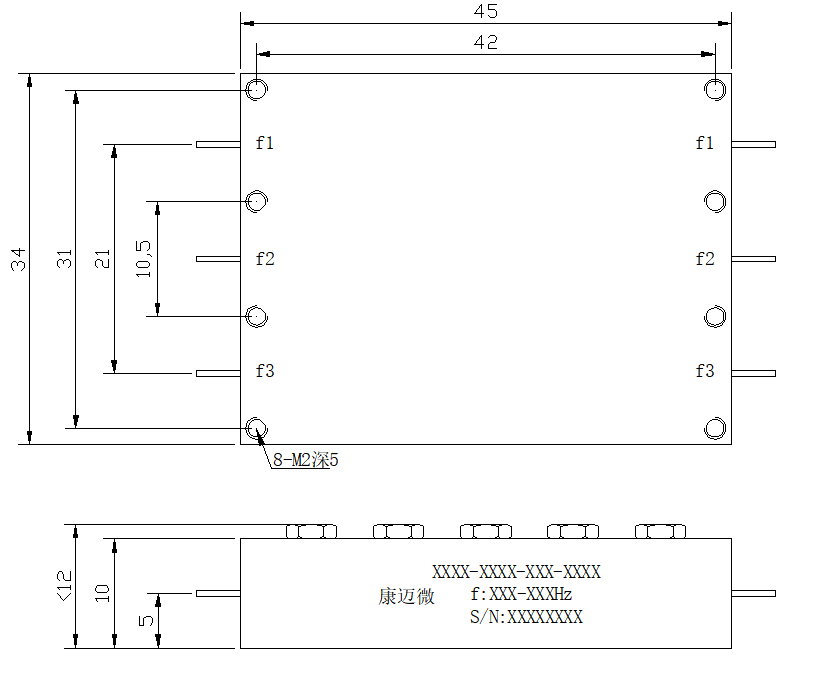

| Connector | Pin 0.38mm |
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 10W Design assurance |
| Operation Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
