Passband F CH1137.5~142.5MHz, Passband F CH2135~145MHz, Passband F CH3130~150MHz, Passband F CH4120~160MHz, Passband F CH5110~170MHz, DC-128MHz≥40dB, 152-280MHz≥40dB, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

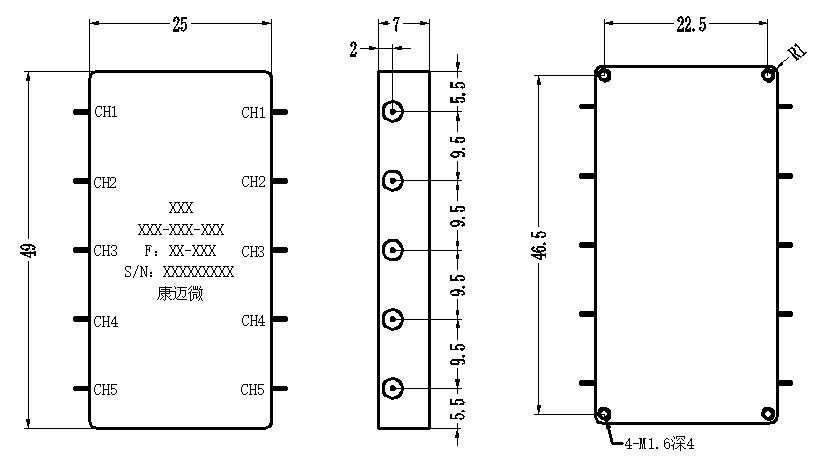

| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F CH1 | / | / | 137.5 | ~ | 142.5 | MHz |
| Passband F CH2 | / | / | 135 | ~ | 145 | MHz |
| Passband F CH3 | / | / | 130 | ~ | 150 | MHz |
| Passband F CH4 | / | / | 120 | ~ | 160 | MHz |
| Passband F CH5 | / | / | 110 | ~ | 170 | MHz |
| Passband IL | / | / | 5 | dB | ||
| Ripple | / | / | 0.5 | dB | ||
| Rejection CH1 | DC-128 | MHz≥ | 40 | dB | ||
| Rejection CH1 | 152-280 | MHz≥ | 40 | dB | ||
| Rejection CH2 | DC-120 | MHz≥ | 40 | dB | ||
| Rejection CH2 | 160-280 | MHz≥ | 40 | dB | ||
| Rejection CH3 | DC-110 | MHz≥ | 40 | dB | ||
| Rejection CH3 | 170-280 | MHz≥ | 40 | dB | ||
| Rejection CH4 | DC-94 | MHz≥ | 40 | dB | ||
| Rejection CH4 | 186-280 | MHz≥ | 40 | dB | ||
| Rejection CH5 | DC-80 | MHz≥ | 40 | dB | ||
| Rejection CH5 | 200-280 | MHz≥ | 40 | dB | ||
| 带外抑制CH1-CH5 | 280-400 | MHz≥ | 45 | dBc | ||
| Passband VSWR | / | / | 1.5 |
| Connector | Pin 0.38mm |
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 2W Design assurance |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| -40dB BW | CH1:≤24MHz，CH2:≤40MHz，CH3:≤60MHz，CH4:≤92MHz，CH5:≤120MHz |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
