Gain0dB, Noise figure15dB, P-1dB10dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| 通道一 | ||||

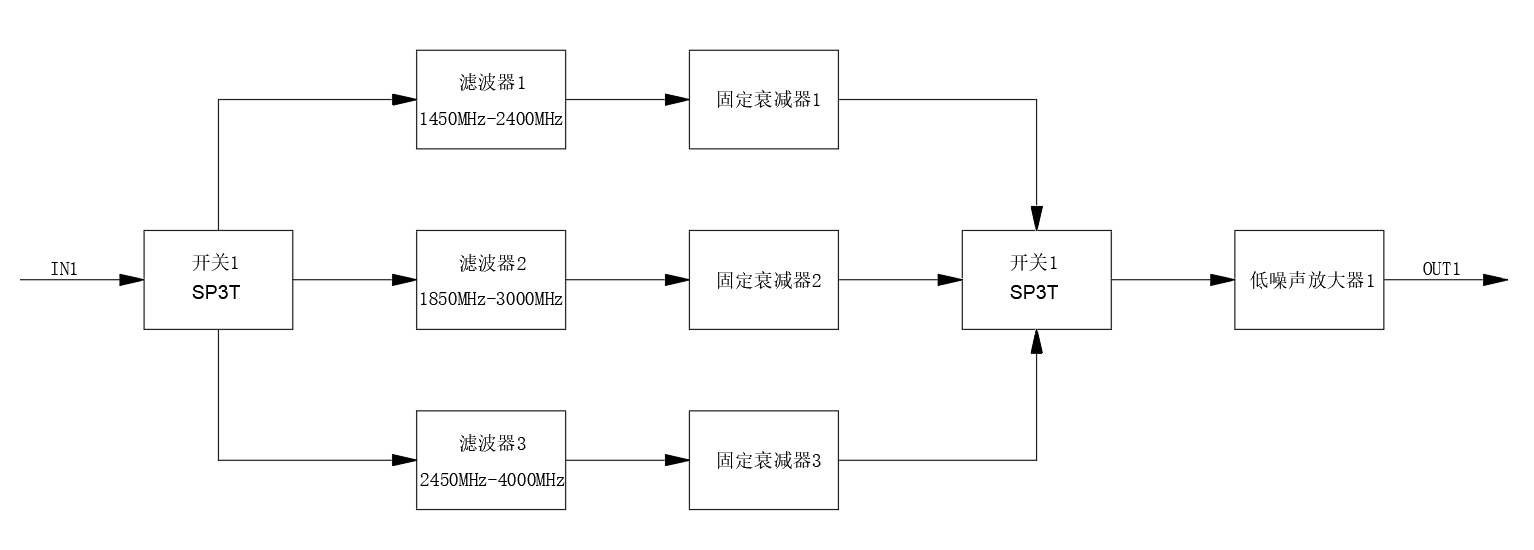

| Frequency | 1.45 | ~ | 2.4 | GHz |
| 1.85 | ~ | 3 | GHz | |
| 2.45 | ~ | 4 | GHz | |

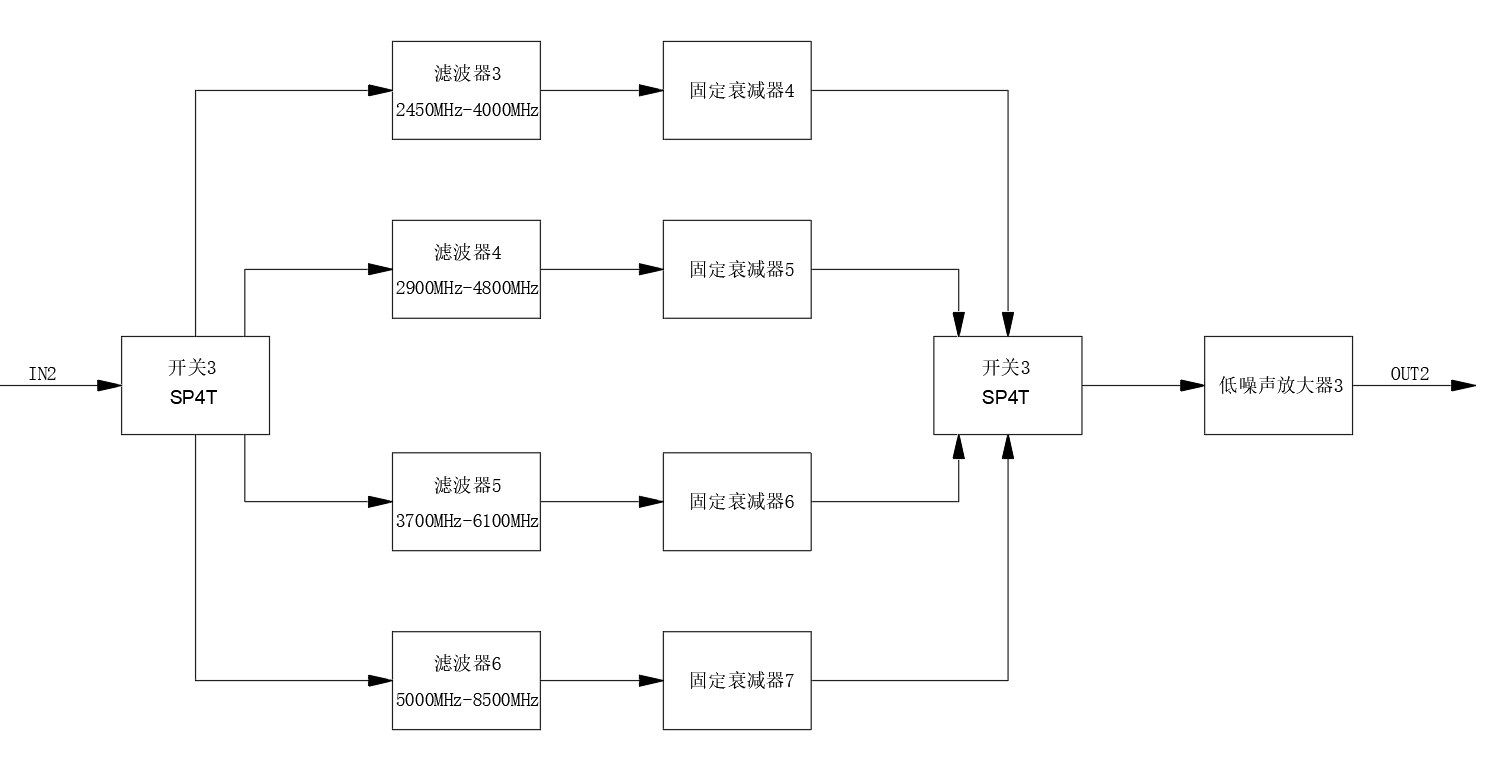

| Frequency | 2.45 | ~ | 4 | GHz |
| 2.9 | ~ | 4.8 | GHz | |
| 3.7 | ~ | 6.1 | GHz | |
| 5 | ~ | 8.5 | GHz | |

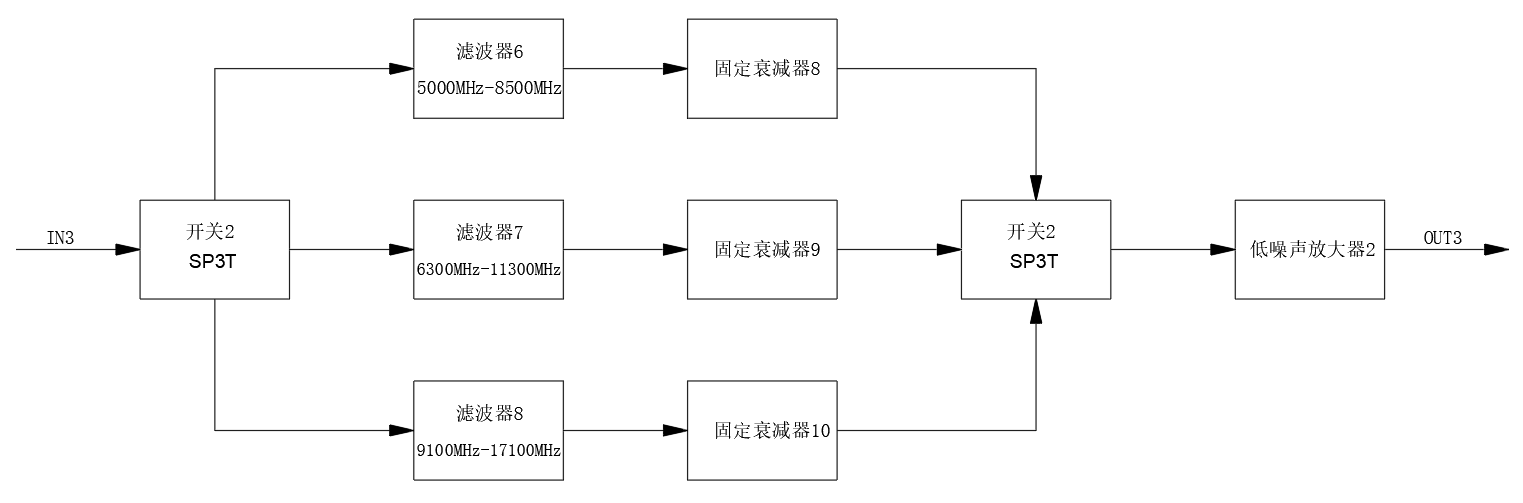

| Frequency | 5 | ~ | 8.5 | GHz |
| 6.3 | ~ | 11.3 | GHz | |
| 9.1 | ~ | 11.7 | GHz | |
| Rejection | 50@≥2.9GHz&≤1GHz | dB | ||
| 50 @≥3.7GHz&≤1.1GHz | dB | |||
| 50@≥4.9GHz&≤1.5GHz | dB | |||
| 50@≥5.8GHz&≤1.9GHz | dB | |||
| 50@≥7.4GHz&≤2.4GHz | dB | |||
| 50@≥10GHz&≤3.5GHz | dB | |||
| 50@≥12.6GHz&≤5 GHz | dB | |||
| 50@≥18.2GHz&≤8GHz | dB | |||
| 最大输入可工作功率 | 15 | dBm | ||
| Gain | 0 | 2 | dB | |
| Gain flatness | 1（任意1G 带宽） | dB | ||
| Noise figure | 15 | dB | ||
| VSWR | 1.8 | |||
| P-1dB | 10 | dBm |

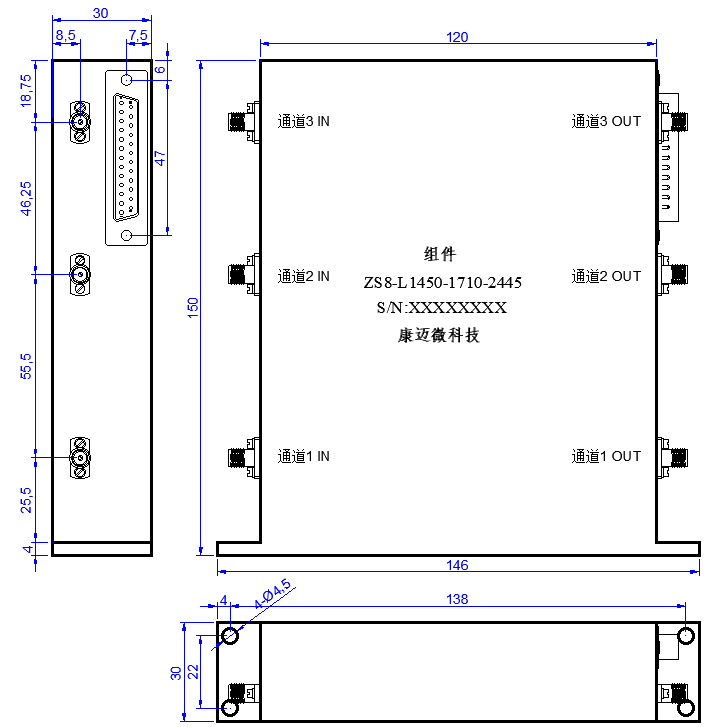

| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +12V盒体内部需要二次电源转换并加强滤波 |
| Working current | 500mA |
| Operation Temp. | -40~+55℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Power supply interface | DB25 |
| 筛选试验 | 电老化、温冲试验按SJ20527A-2003《微波组件通用规范》标准进行，设计保证。 |
| other | 电源告警高电平报警，低电平正常 |
| 产品周期试验（例行试验）随整机做 （ 注意事项:T1和T2，同为1；或者T5和T6，同为1，这种情况，电是不通的哈。逻辑上，我是处理了的，就是这两种情况，滤波器不选通任何一路） |
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
