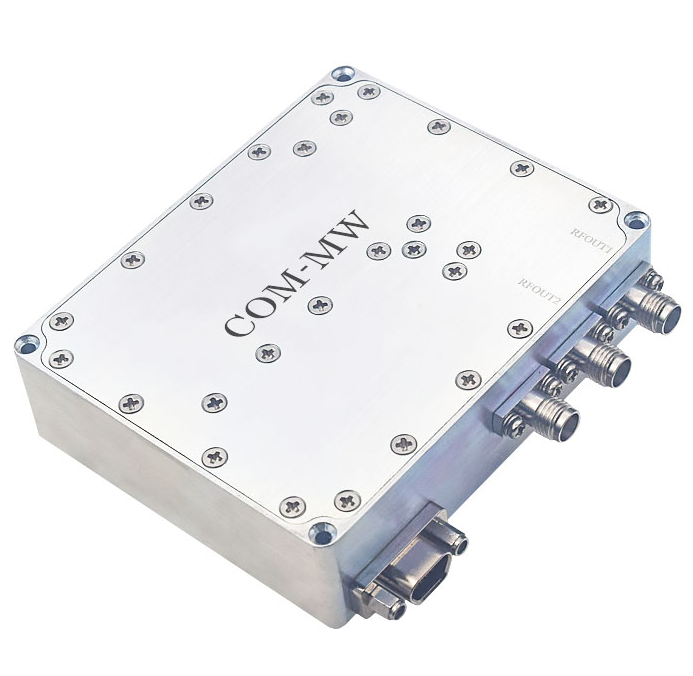

0.2~15GHz, Stepped frequency10MHz, spur reduction-60dBc, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

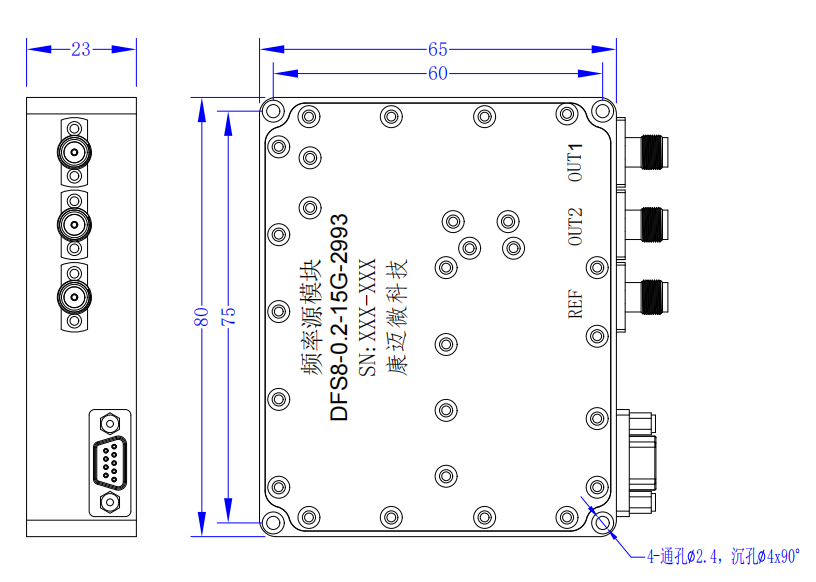

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.2 | ~ | 15 | GHz |
| Stepped frequency | 10 | MHz | ||
| Output power | -5 | ~ | 5 | dBm |
| spur reduction | -60 | dBc | ||
| harmonic | -5 | dBc | ||
| Output phase | 5 | ° | ||
| Power stability | ±0.5 | dB | ||
| Digital attenuator | 0.5~31.5 | dB |
| J30J-9 | |
| 1 | +12V |
| 2 | +12V |
| 3 | TXA(232) |
| 4 | RXA(232) |
| 5 | GND |
| 6 | ASK |
| 7 | NC |
| 8 | NC |
| 9 | GND |
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 400mA |
| Work Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |
1. A frequency step of 1MHz can yield the correct frequency output, with a spurious output of -50dBc;
2. Storage humidity less than 25%, dust-proof and anti-static;
3. Working or storage temperature less than 125 ℃;
4. Clean the surface of the product, do not soak the product in a cleaning solution.
