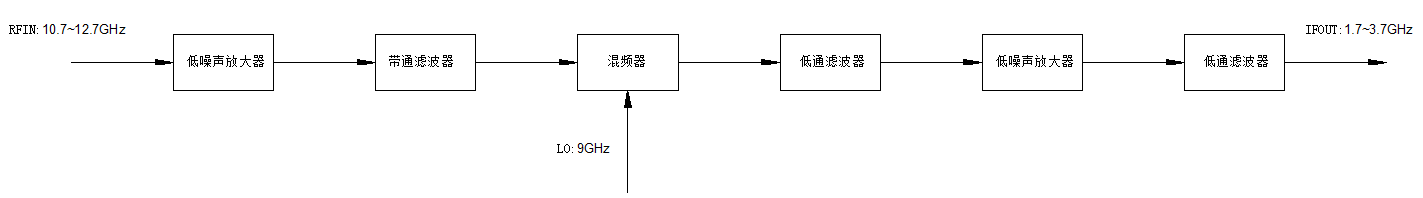

双通道变频，内置本振
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| 射频输入频率 | 10.7 | ~ | 12.7 | GHz |
| 中频输出频率 | 1.7 | ~ | 3.7 | GHz |
| 射频输入功率 | -100 | ~ | -60 | dBm |
| Noise figure | 1.8 | |||
| 通道增益 | 50 | dB |
| Impedance | 50Ω |
| Input connector | SMA-K |
| Output Connector | SMA-K |
| Connector material | Stainless steel |
| Product shell material | Aluminium |
| Working voltage | +12V |
| Working current | ≤600mA（稳定电流） |
| 时钟频率稳定度 | 0.5ppm设计保证 |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -40~+80℃ Design assurance |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
