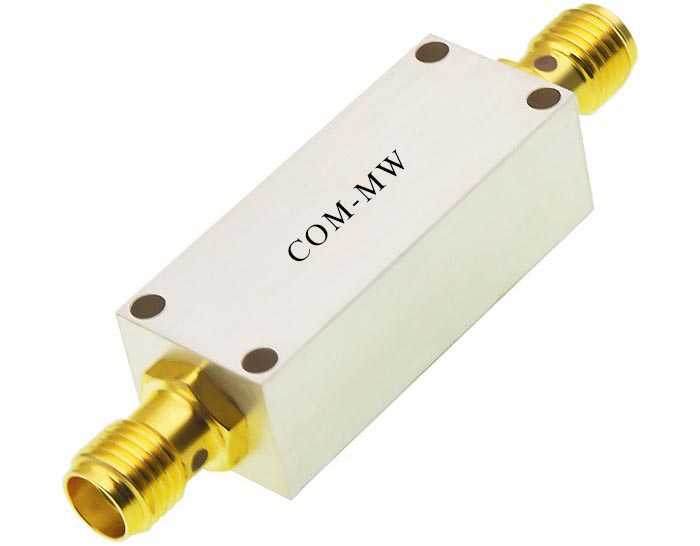

Frequency100~1300MHz, Equilibrium quantity3.5dB, Power Capacity1W, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 100 | ~ | 1300 | MHz |
| IL | (1300MHz) | 0.5 | dB | |
| Equilibrium quantity | 3.5 | dB | ||
| VSWR | 1.5 | dB |
| Power Capacity | 1W Design assurance |
| Impedance | 50Ω |
| Connector | SMA-F |
| Connector material | Shell copper plated with gold |
| Surface | silver-plate |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
