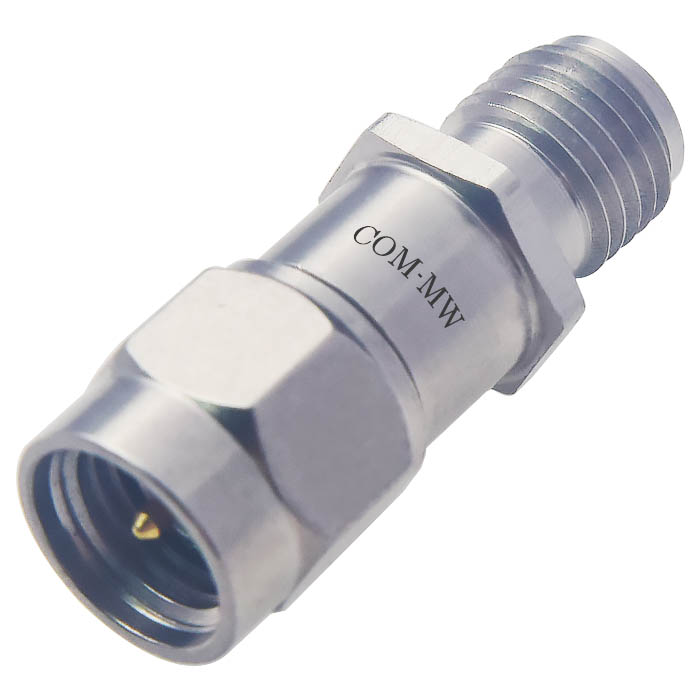

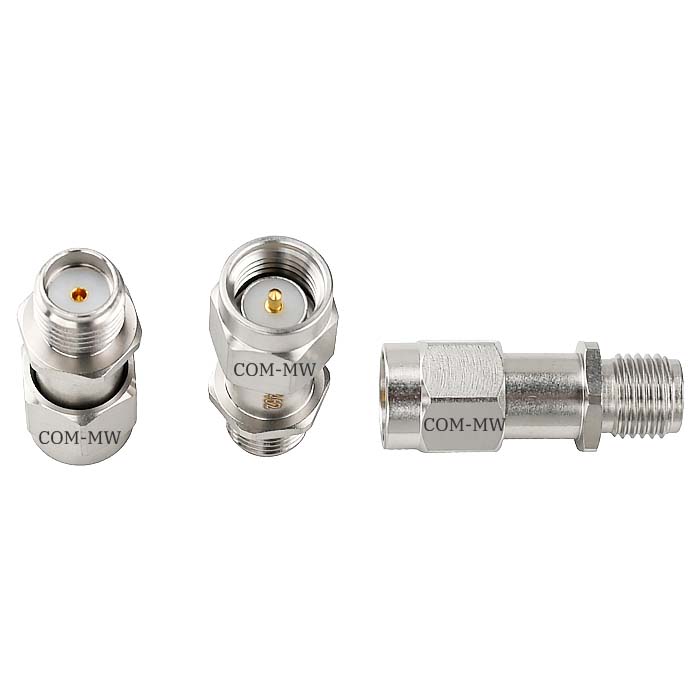

Frequency0.009~18000MHz, Withstand voltage100V, 50Ω, SMA-JK
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, low loss.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.009 | ~ | 18000 | MHz |
| IL | 0.6 | dB | ||
| VSWR | 1.3 | |||
| Withstand voltage | 100 | V |
| Power Capacity | 2W |
| Impedance | 50Ω |
| Connector | SMA-JK |
| Connector material | Stainless steel |
| Operation Temp. | -45~+85℃ Design assurance |
| Storage Temp. | -55~+125℃ Design assurance |

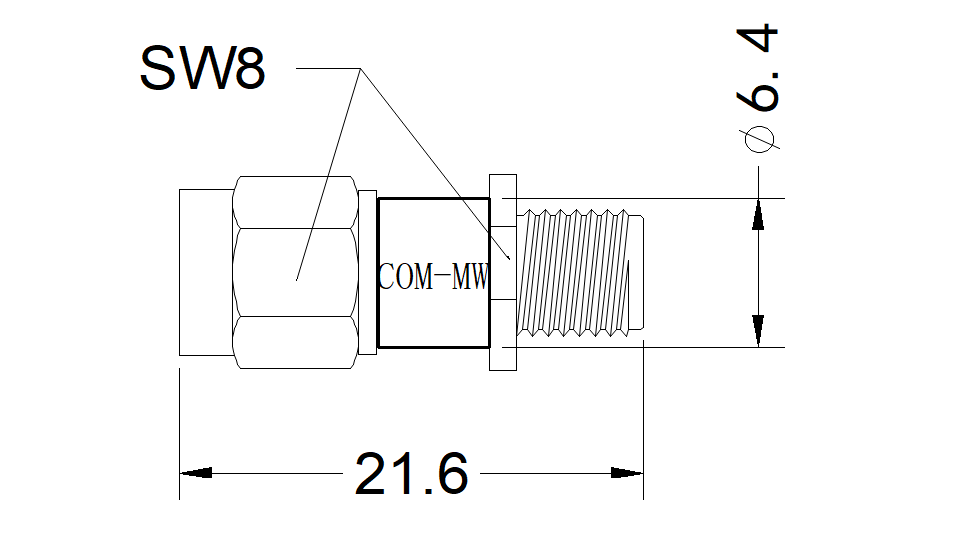

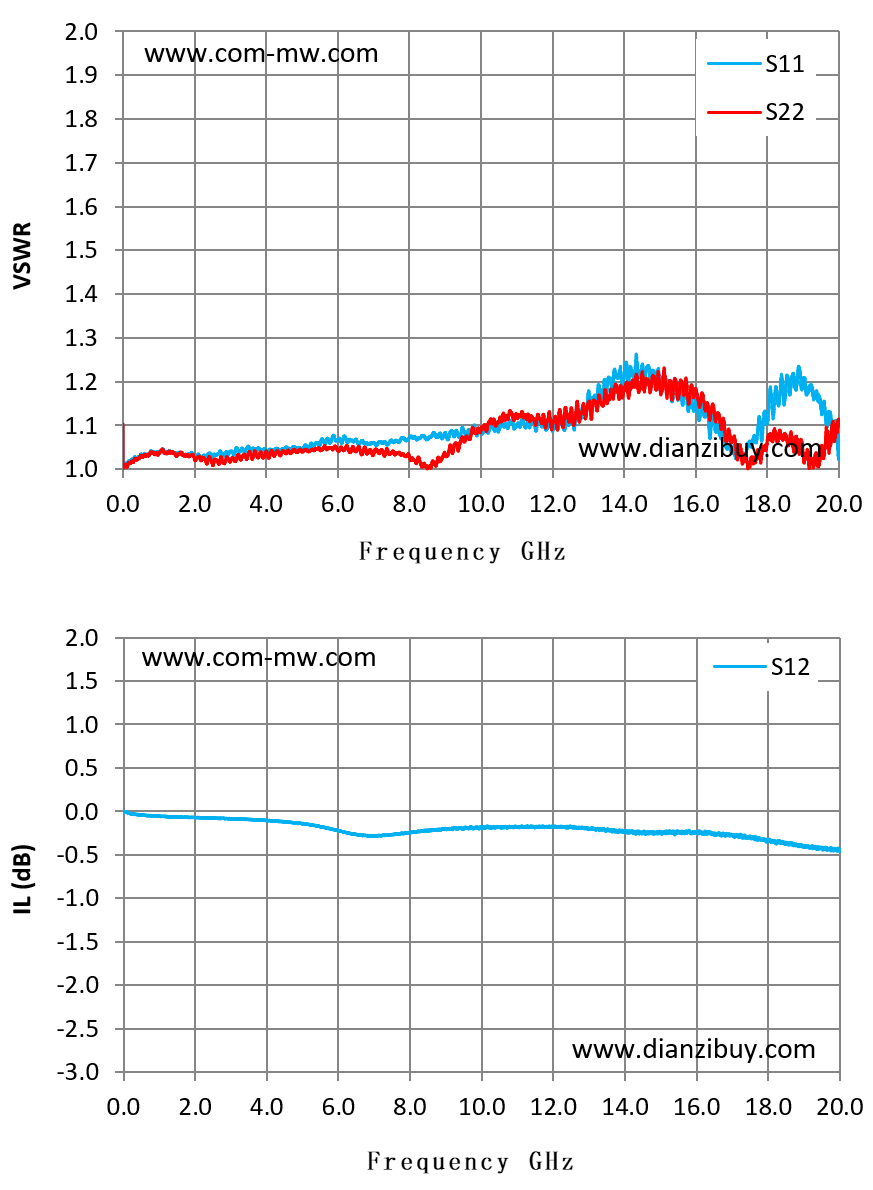

| Frequency(GHz) | S11 VSWR | S12 IL dB |
|---|---|---|
| 0.01 | 1.03 | 0.18 |
| 1.89 | 1.06 | 0.26 |
| 3.79 | 1.07 | 0.36 |
| 5.68 | 1.04 | 0.38 |
| 7.57 | 1.09 | 0.39 |
| 9.46 | 1.15 | 0.42 |
| 11.36 | 1.22 | 0.43 |
| 13.25 | 1.15 | 0.38 |
| 15.14 | 1.04 | 0.41 |
| 17.04 | 1.22 | 0.37 |
| 18.93 | 1.18 | 0.44 |
| 20.82 | 1.21 | 0.41 |
The frequency of theDC Block is low, the capacitance value is large, and the discharge of the capacitor will generate a very small voltage with low energy, which does not affect the safe use of the equipment. Cannot accept, please choose carefully or choose a higher starting frequency DC Block.
