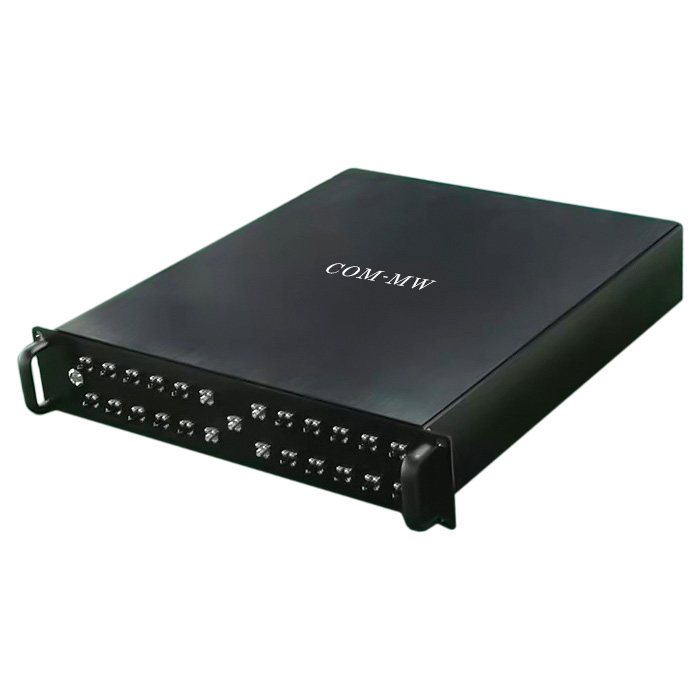

700~8000MHz, Attenuation range0~93dB, step0.5dB, 0.2W, SMA, 8 sets of programmable attenuators
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
--
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 700 | ~ | 8000 | MHz |
| Attenuation range | 0 | ~ | 93 | dB |
| IL | 15 | 17 | dB | |
| VSWR | 1.5 | 1.8 | ||
| 0.5-16dB Accuracy | ±0.5 | dB | ||
| 16-31.5dB Accuracy | ±1 | dB | ||
| 32-63dB Accuracy | ±2 | dB | ||
| 63-90dB Accuracy | ±3 | dB |
| step | 0.5dB |
| Power | 0.2W Design assurance |
| Impedance | 50Ω |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Product shell material | Aluminium |
| Working voltage | +220V |
| Control port | RJ-45 |
| Work Temp. | -30~+70℃ Design assurance |
| Other | 8 sets of programmable attenuators |
1. Clean the surface of the product, do not soak the product in a cleaning solution; 2. This product belongs to electrostatic sensitive devices. Pay attention to anti-static measures during installation or storage; 3. If the overall temperature is greater than 125 ℃, please consult with us before placing an order.
