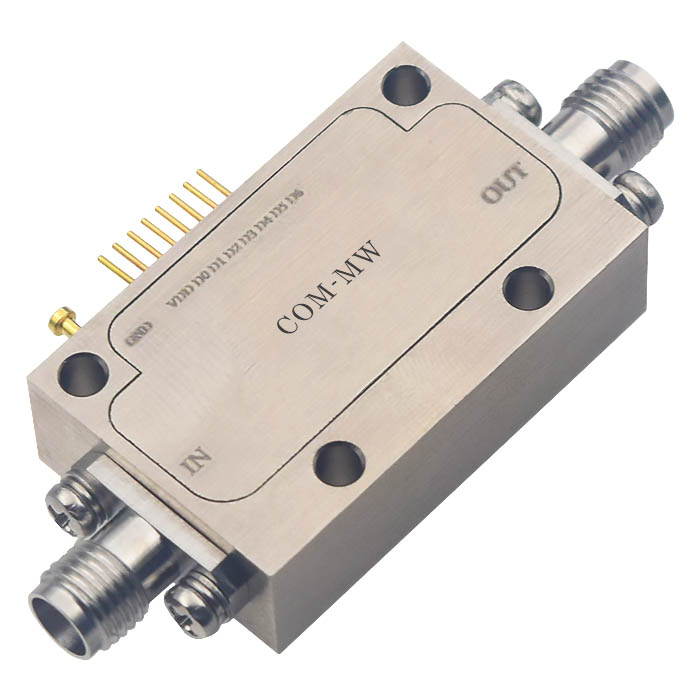

100~6000MHz, Attenuation range0.25~31.75dB, step0.25dB, 0.2W, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, small volume.

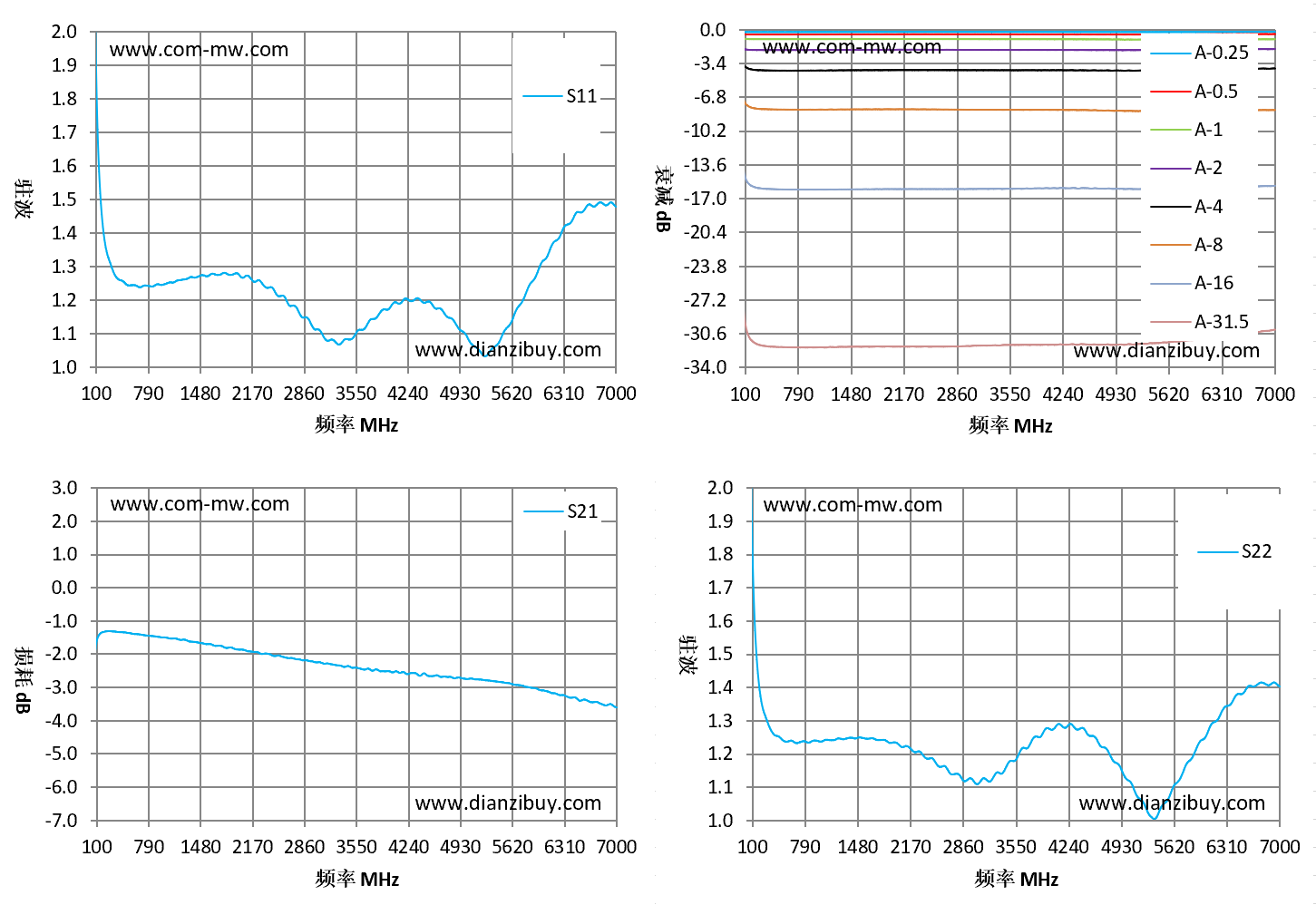

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 100 | ~ | 6000 | MHz |
| Attenuation range | 0.25 | ~ | 31.75 | dB |
| IL | 3.2 | dB | ||
| VSWR | 1.6 | |||
| 0.25dB Accuracy | 0.15 | 0.25 | 0.35 | dB |
| 0.5dB Accuracy | 0.4 | 0.5 | 0.6 | dB |
| 1dB Accuracy | 0.9 | 1 | 1.1 | dB |
| 2dB Accuracy | 1.9 | 2 | 2.1 | dB |
| 4dB Accuracy | 3.7 | 4 | 4.2 | dB |
| 8dB Accuracy | 7.3 | 8 | 8.5 | dB |
| 16dB Accuracy | 14 | 16 | 17 | dB |
| 31.75dB Accuracy | 29 | 31.75 | 33 | dB |
| step | 0.25dB |
|---|---|
| Power Capacity | 0.2W |
| Impedance | 50Ω |

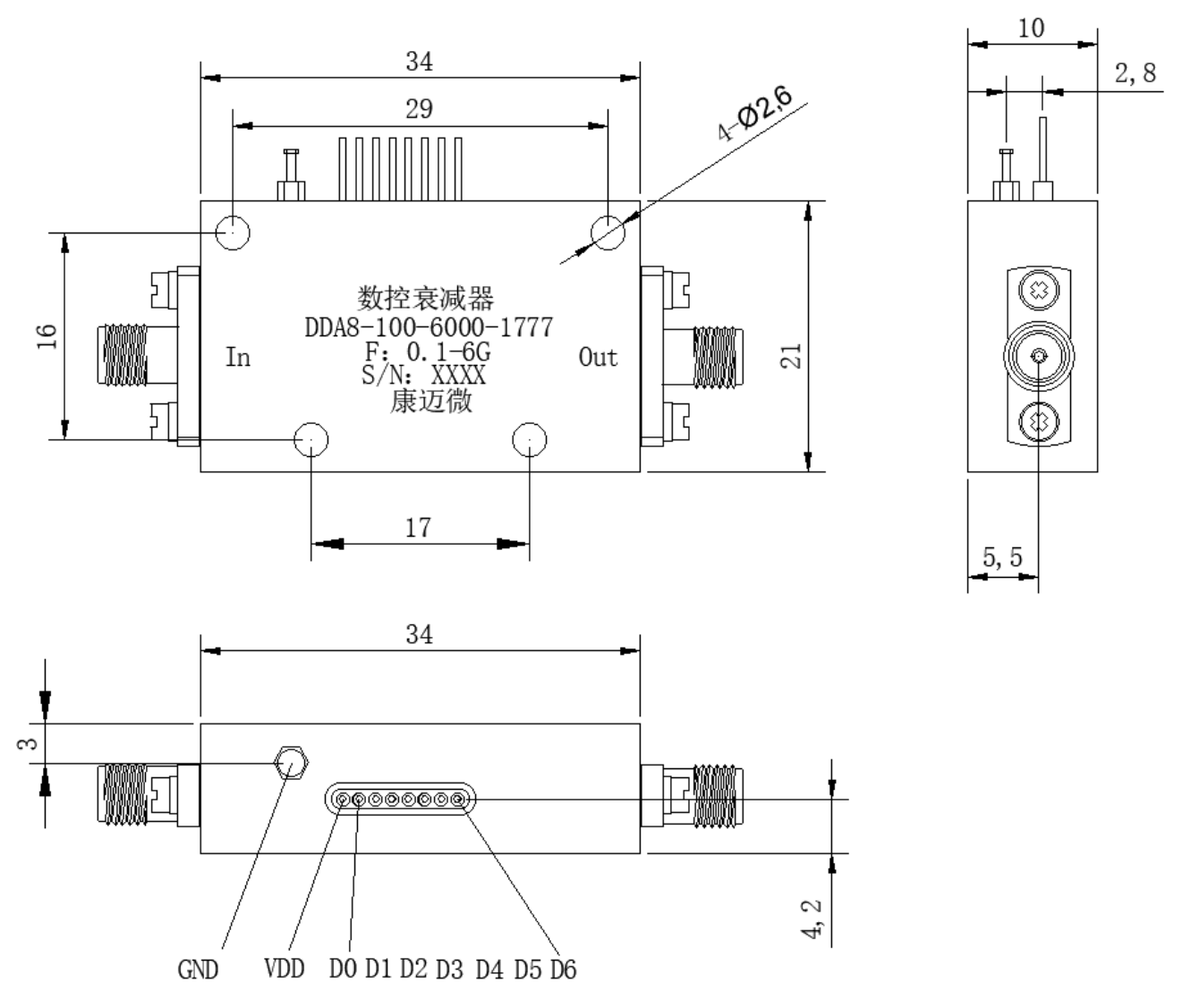

| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Product shell material | Aluminium |
| Working voltage | +5V |
| Working current | 10mA |
| Operation Temp. | -40~+70℃ Design assurance |
1. Clean the surface of the product, do not soak the product in a cleaning solution; 2. This product belongs to electrostatic sensitive devices. Pay attention to anti-static measures during installation or storage; 3. If the overall temperature is greater than 125 ℃, please consult with us before placing an order.
