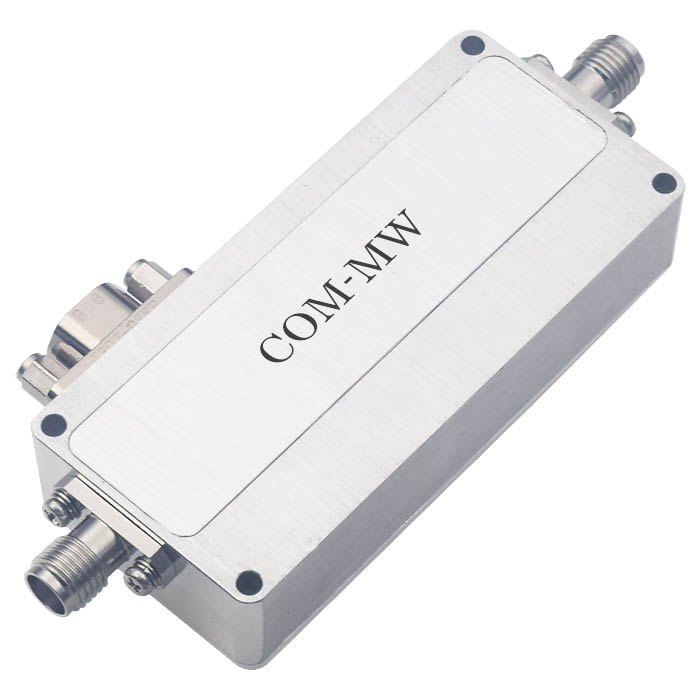

1~40GHz, Attenuation range0~62dB, step1dB, 0.3W, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1 | ~ | 40 | GHz |
| Attenuation range | 0 | ~ | 62 | dB |
| IL | 14 | dB | ||
| VSWR | 2 | |||
| 1dB Accuracy | 0.7 | 1 | 1.5 | dB |
| 2dB Accuracy | 1.8 | 2 | 2.7 | dB |
| 4dB Accuracy | 3.7 | 4 | 4.5 | dB |
| 8dB Accuracy | 7.7 | 8 | 9.2 | dB |
| 16dB Accuracy | 15.1 | 16 | 17.4 | dB |
| 31dB衰减精度（整衰） | 30.3 | 31 | 32.8 | dB |
| step | 1dB |
| Power Capacity | 0.3W Design assurance |
| Peak power | 25dBm Design assurance |
| Impedance | 50Ω |

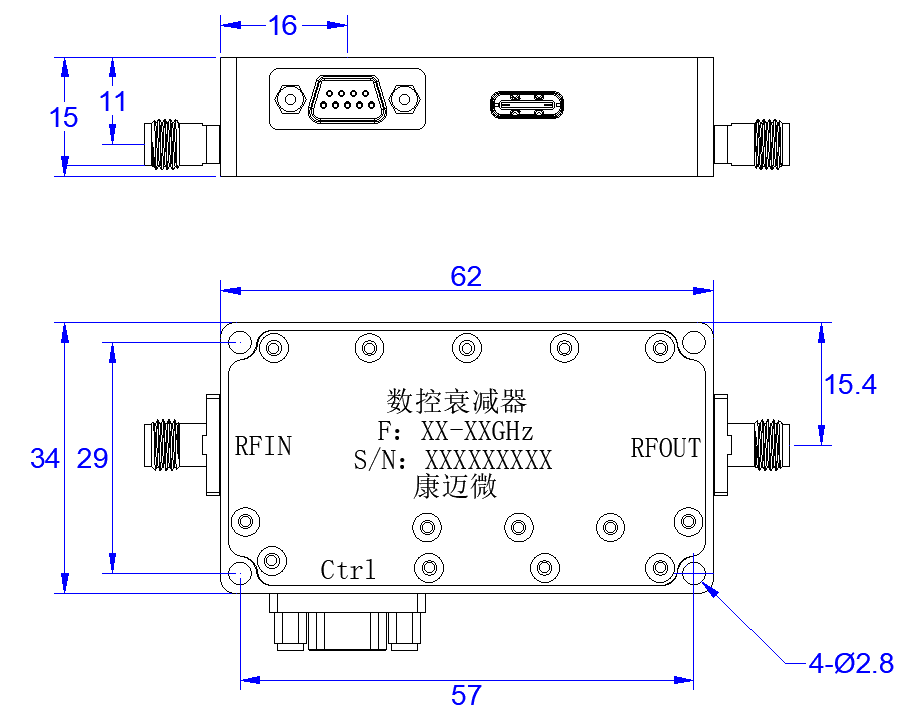

| Connector | 2.92 detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Surface | Nickel plating |
| Product shell material | Aluminium |
| Working voltage | +5V |
| Working current | 100mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | USB-C供电，J30J-9连接器控制 |
1. Clean the surface of the product, do not soak the product in a cleaning solution; 2. This product belongs to electrostatic sensitive devices. Pay attention to anti-static measures during installation or storage; 3. If the overall temperature is greater than 125 ℃, please consult with us before placing an order.
