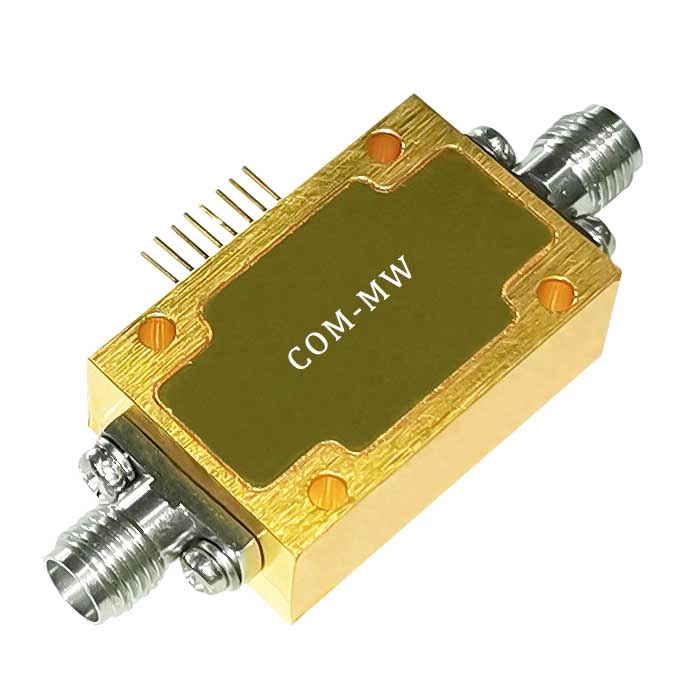

0.02~24000MHz, Attenuation range0.5~31.5dB, step0.5dB, 0.2W, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.02 | ~ | 24000 | MHz |
| Attenuation range | 0.5 | ~ | 31.5 | dB |
| IL | 4 | 4.5 | dB | |
| VSWR | 2 | 2.5 | ||
| 0.5dB Accuracy | 0.3 | 0.5 | 0.8 | dB |
| 1dB Accuracy | 0.5 | 1 | 1.5 | dB |
| 2dB Accuracy | 1.2 | 2 | 2.8 | dB |
| 4dB Accuracy | 3 | 4 | 5 | dB |
| 8dB Accuracy | 6.5 | 8 | 9.5 | dB |
| 16dB Accuracy | 14.5 | 16 | 17.5 | dB |
| step | 0.5dB |
| Power Capacity | 0.2W |
| Impedance | 50Ω |

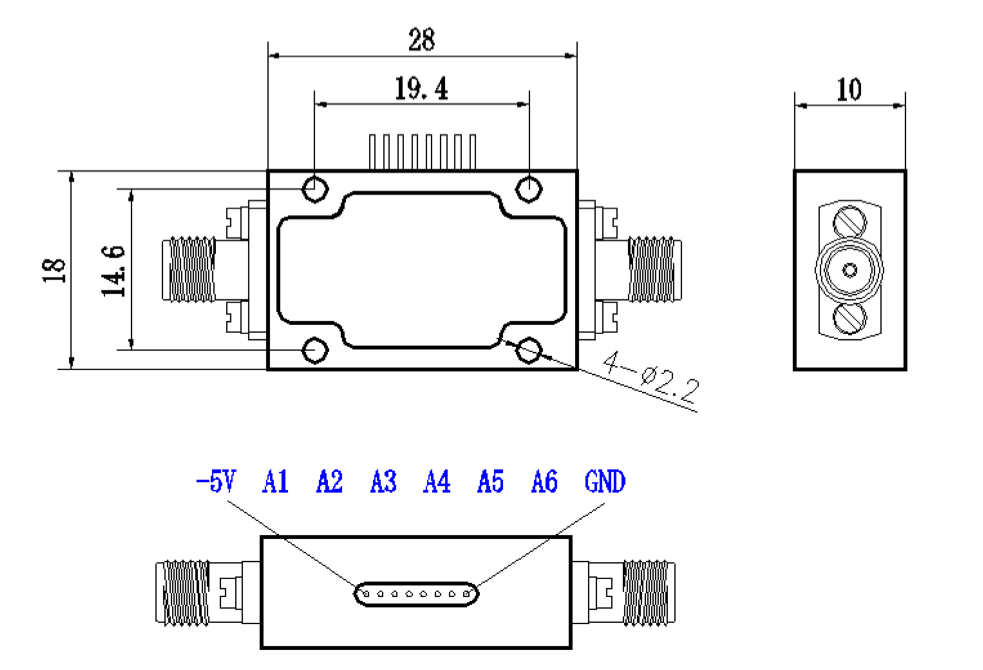

| Connector | SMA-F Detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Surface | Gold-plating |
| Working voltage | -5V |
| Working current | 50mA |
| Operation Temp. | -40~+85℃ Design assurance |
| Other | TTL Control |
| Attenuation | A6 | A5 | A4 | A3 | A2 | A1 |
|---|---|---|---|---|---|---|
| Through | 0 | 0 | 0 | 0 | 0 | 0 |
| 0.5dB | 0 | 0 | 0 | 0 | 0 | 1 |
| 1dB | 0 | 0 | 0 | 0 | 1 | 0 |
| 2dB | 0 | 0 | 0 | 1 | 0 | 0 |
| 4dB | 0 | 0 | 1 | 0 | 0 | 0 |
| 8dB | 0 | 1 | 0 | 0 | 0 | 0 |
| 16dB | 1 | 0 | 0 | 0 | 0 | 0 |

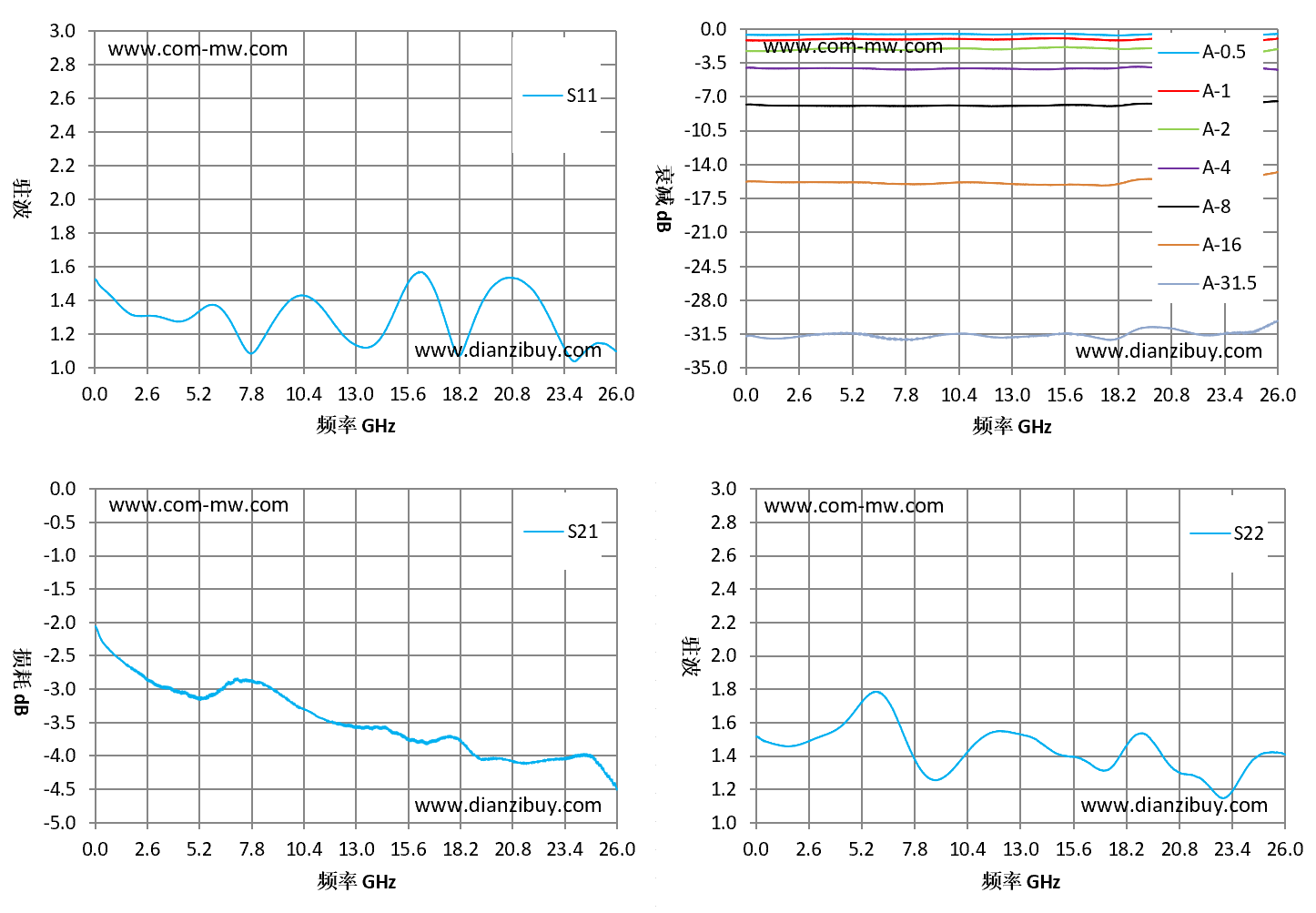

| Frequency(GHz) | ATT-0.5 dB | ATT-1dB | ATT-2dB | ATT-4 dB | ATT-8dB | ATT-16dB | ATT-31.5 dB |
|---|---|---|---|---|---|---|---|
| 0.01 | -0.62 | -1.19 | -2.3 | -4.03 | -7.81 | -15.79 | -31.74 |
| 2 | -0.63 | -1.18 | -2.24 | -4.09 | -7.92 | -15.84 | -31.9 |
| 4 | -0.56 | -1.06 | -2.02 | -4.05 | -7.95 | -15.83 | -31.48 |
| 6 | -0.56 | -1.07 | -2.08 | -4.1 | -7.93 | -15.87 | -31.59 |
| 9 | -0.54 | -1.06 | -2.11 | -4.17 | -7.94 | -16.01 | -31.82 |
| 13 | -0.57 | -1.08 | -2.1 | -4.13 | -7.96 | -16.01 | -31.85 |
| 17 | -0.6 | -1.1 | -1.98 | -4.09 | -7.9 | -16.12 | -31.8 |
| 20 | -0.55 | -1.03 | -2 | -3.98 | -7.72 | -15.5 | -30.78 |
| 24 | -0.64 | -1.25 | -2.4 | -4.11 | -7.64 | -15.35 | -31.39 |
| 26 | -0.52 | -1.01 | -2.1 | -4.23 | -7.48 | -14.79 | -30.13 |
1. Clean the surface of the product, do not soak the product in cleaning solution for cleaning;
2. Pay attention to anti-static during installation or storage;
3. If the overall temperature is greater than 125 ℃, please consult with us before placing an order.
