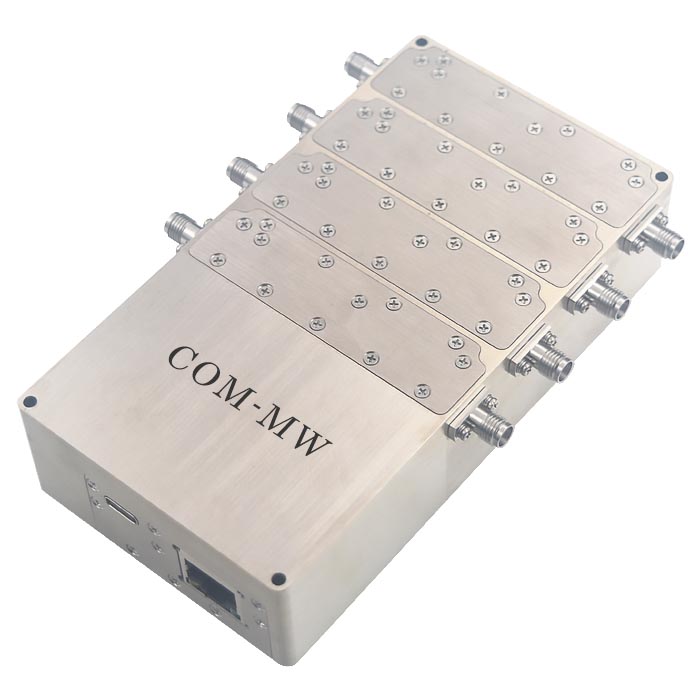

0.1~8GHz, Attenuation range0~63dB, step0.25dB, 0.3W, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.1 | ~ | 8 | GHz |
| Attenuation range | 0 | ~ | 63 | dB |
| IL | 8 | 10 | dB | |
| VSWR | 1.5 | 1.9 | ||
| Attenuation accuracy root mean square | 1.5 | 2 | dB | |
| Channel isolation | 60 | dB | ||
| Input power (RF input port) | +25 | dBm | ||
| Input power (RF output port) | +18 | dBm | ||

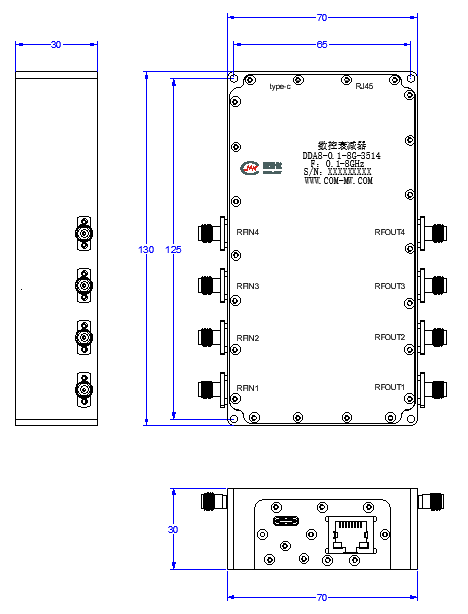

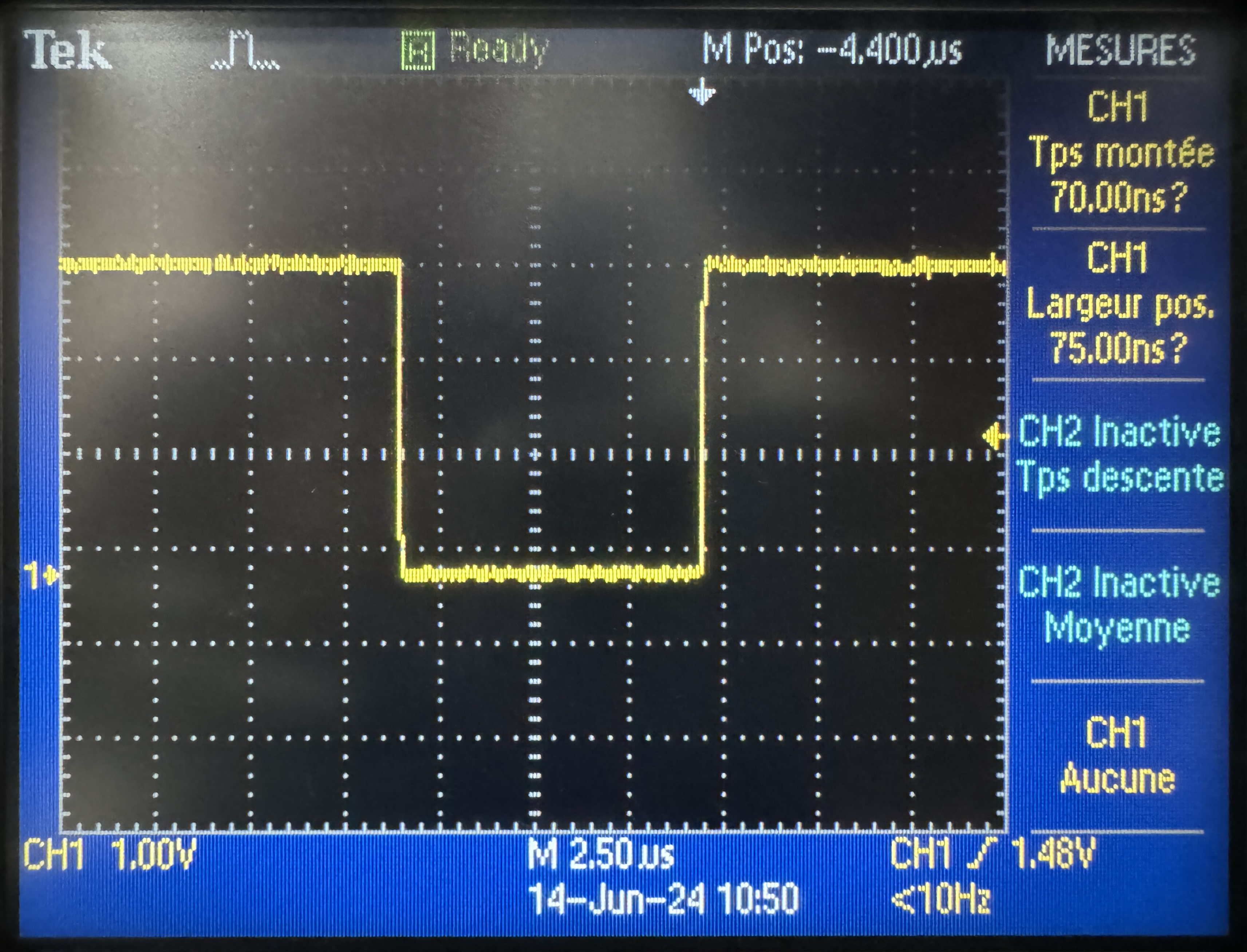

| Attenuation switching time | 100 | ns |
| step | 0.25dB |
| Power Capacity | 0.3W Design assurance |
| Impedance | 50Ω |
| Connector | SMA-K |
| Surface | Nickel plating |
| Working voltage | +5V, USB-C interface power supply, equipped with power adapter |
| Working current | 250mA |
| Operation Temp. | -0~+50℃ Design assurance |
| Storage Temp. | -30~+85℃ Design assurance |
| Control port | USB-C/RJ-45 |
| Other | Four sets of attenuation, independent control |
This product has 4 channels of attenuation and independent control. The control command format is AA TD ATT1 ATT2 00 00 55, where TD represents the selected attenuation channel (1-4), ATT1 and ATT2 represent the attenuation amount (the maximum attenuation amount for a single attenuation is 31.75dB), and control software can be provided
Select channel 1: AA 01 xx xx 00 00 00 55
Select channel 2: AA 01 xx xx 00 00 00 55
Select channel 3: AA 01 xx xx 00 00 00 55
Select channel 4: AA 01 xx xx 00 00 00 55
| 0 dB | AA 01 00 00 00 00 00 55 | |
|---|---|---|
| 0.25 dB | AA 01 01 00 00 00 00 55 | |
| 0.5 dB | AA 01 02 00 00 00 00 55 | |
| 1 dB | AA 01 04 00 00 00 00 55 | |
| 2 dB | AA 01 08 00 00 00 00 55 | |
| 4 dB | AA 01 10 00 00 00 00 55 | |
| 8 dB | AA 01 20 00 00 00 00 55 | |
| 16 dB | AA 01 40 00 00 00 00 55 | |
| 31.7 dB | AA 01 FF 00 00 00 00 55 | |
| 32.25dB | AA 01 FF 02 00 00 00 55 | |
| 32.75dB | AA 01 FF 04 00 00 00 55 | |
| 33.75dB | AA 01 FF 08 00 00 00 55 | |
| 35.75dB | AA 01 FF 10 00 00 00 55 | |
| 39.75dB | AA 01 FF 20 00 00 00 55 | |
| 47.75dB | AA 01 FF 40 00 00 00 55 | |
| 63.5dB | AA 01 FF FF 00 00 00 55 |

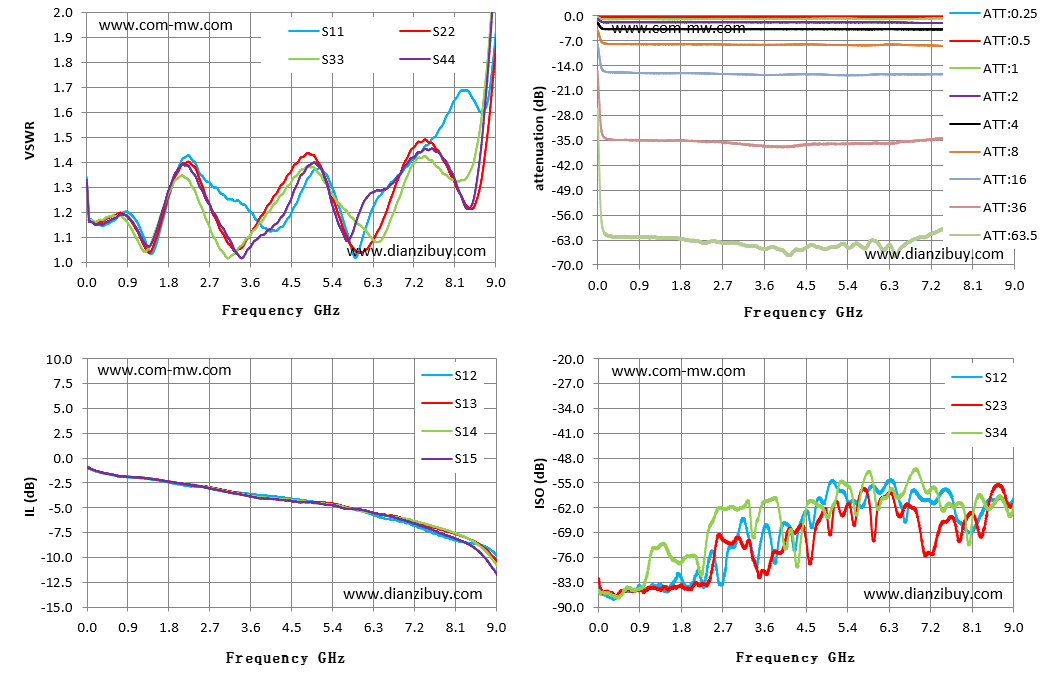

| Frequency GHz | VSWR | IL (dB) | 0.25 dB | 0.5 dB | 1 dB | 2 dB | 4 dB | 8 dB | 16 dB | 63.5dB | Isolation dB |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.1 | 1.17 | -1.17 | -0.25 | -0.51 | -0.95 | -1.73 | -3.58 | -7.48 | -15.1 | -59.2 | -86.1 |
| 0.64 | 1.17 | -1.81 | -0.23 | -0.47 | -0.89 | -1.85 | -3.74 | -7.96 | -15.9 | -62.2 | -84.9 |
| 1.29 | 1.09 | -2.08 | -0.25 | -0.5 | -0.93 | -1.87 | -3.78 | -8.04 | -16.2 | -62.3 | -84.9 |
| 1.93 | 1.34 | -2.57 | -0.27 | -0.51 | -0.94 | -1.84 | -3.74 | -8.01 | -16.2 | -63 | -84.6 |
| 2.57 | 1.34 | -2.95 | -0.24 | -0.46 | -0.85 | -1.84 | -3.74 | -8.09 | -16.3 | -63.5 | -70.9 |
| 3.21 | 1.25 | -3.42 | -0.24 | -0.46 | -0.87 | -1.85 | -3.76 | -8.15 | -16.6 | -64.6 | -72.5 |
| 3.86 | 1.14 | -3.77 | -0.23 | -0.45 | -0.85 | -1.85 | -3.75 | -8.14 | -16.6 | -65.3 | -74.5 |
| 5.14 | 1.38 | -4.48 | -0.2 | -0.4 | -0.77 | -1.87 | -3.76 | -8.18 | -16.7 | -64.9 | -60.5 |
| 6.43 | 1.26 | -5.97 | -0.23 | -0.47 | -0.9 | -1.89 | -3.75 | -8.11 | -16.5 | -67.6 | -61.1 |
| 7.07 | 1.39 | -6.56 | -0.17 | -0.4 | -0.84 | -1.98 | -3.85 | -8.33 | -16.5 | -62.2 | -75 |
| 8.36 | 1.69 | -8.54 | -0.15 | -0.42 | -0.98 | -2.05 | -3.98 | -8.7 | -16.1 | -60.9 | -68.1 |
1、The device defaults as a TCP/ip server；
2、Default IP address: 192.168.1.100；
3、Default port number: 1000;
1. Clean the surface of the product, do not soak the product in a cleaning solution; 2. This product belongs to electrostatic sensitive devices. Pay attention to anti-static measures during installation or storage; 3. If the overall temperature is greater than 125 ℃, please consult with us before placing an order.
