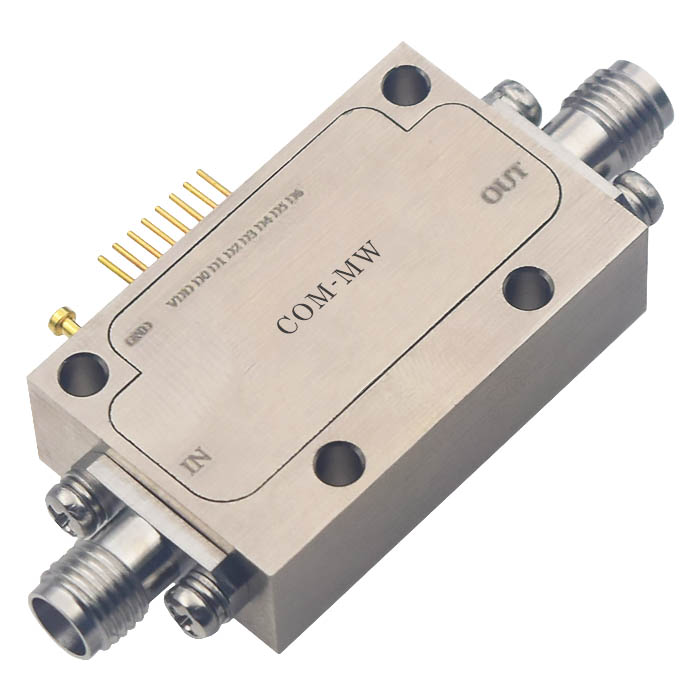

100~6000MHz, Attenuation range0.5~63dB, step0.5dB, 0.2W, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, small volume.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 100 | ~ | 6000 | MHz |
| Attenuation range | 0.5 | ~ | 63 | dB |
| IL | 6 | dB | ||
| VSWR | 1.7 | |||
| 0.5dB Accuracy | 0.3 | 0.5 | 0.7 | dB |
| 1dB Accuracy | 0.8 | 1 | 1.2 | dB |
| 2dB Accuracy | 1.7 | 2 | 2.3 | dB |
| 4dB Accuracy | 3.6 | 4 | 4.4 | dB |
| 8dB Accuracy | 7.6 | 8 | 8.4 | dB |
| 16dB Accuracy | 15 | 16 | 17 | dB |
| 30.5 | 32 | 33.5 | dB | |
| 63dB衰减精度 | 59.5 | 63 | 65.5 | dB |
| step | 0.5dB |
| Power Capacity | 0.2W |
| Impedance | 50Ω |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Product shell material | Aluminium |
| Working voltage | +5V |
| Working current | 10mA |
| Operation Temp. | -40~+70℃ Design assurance |
| / | D0 | D1 | D2 | D3 | D4 | D5 | D6 |
|---|---|---|---|---|---|---|---|
| 0.5 dB | 0 | 1 | 1 | 1 | 1 | 1 | 1 |
| 1 dB | 1 | 0 | 1 | 1 | 1 | 1 | 1 |
| 2 dB | 1 | 1 | 0 | 1 | 1 | 1 | 1 |
| 4 dB | 1 | 1 | 1 | 0 | 1 | 1 | 1 |
| 8 dB | 1 | 1 | 1 | 1 | 0 | 1 | 1 |
| 16 dB | 1 | 1 | 1 | 1 | 1 | 0 | 1 |
| 31.5dB | 1 | 1 | 1 | 1 | 1 | 1 | 0 |
| 63 dB | 0 | 0 | 0 | 0 | 0 | 0 | 0 |

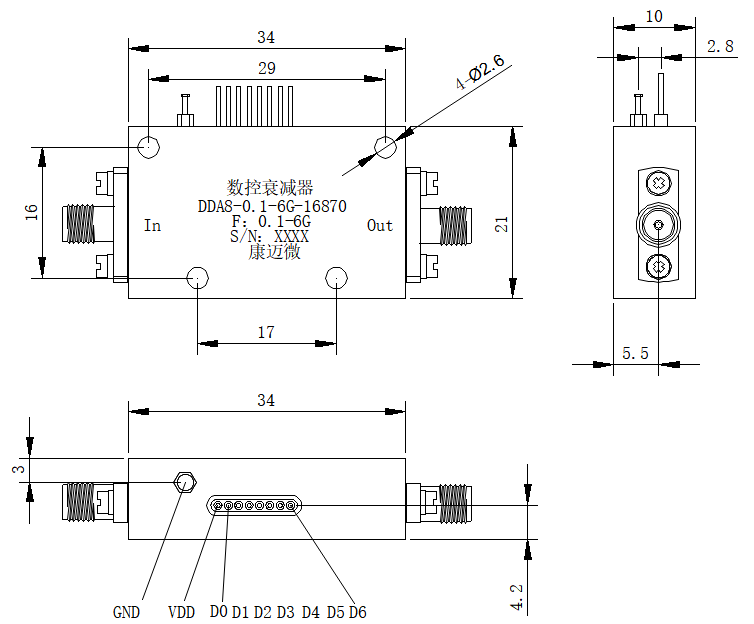

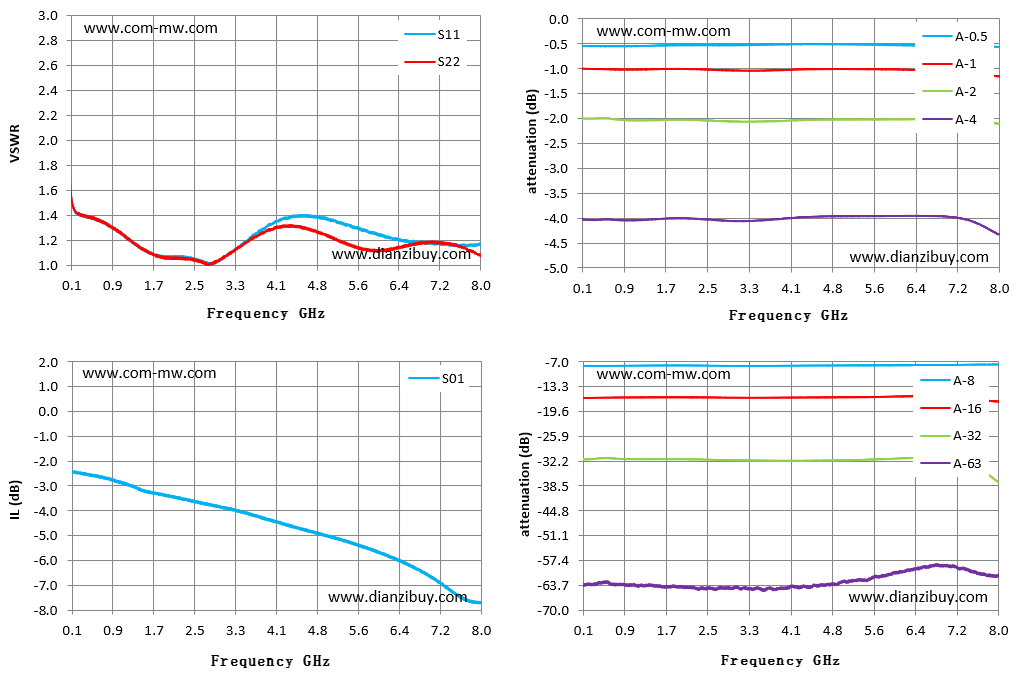

| Frequency GHz | S11 VSWR | S01 IL dB | A-0.5 dB | A-1 dB | A-2 dB | A-4 dB | A-8 dB | A-16 dB | A-32 衰减 dB | A-63 衰减 dB |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.10 | 1.50 | -2.46 | -0.54 | -1.00 | -2.00 | -4.03 | -8.07 | -16.1 | -31.7 | -63.6 |
| 0.66 | 1.35 | -2.65 | -0.55 | -1.01 | -2.01 | -4.03 | -8.07 | -16.1 | -31.5 | -63.4 |
| 1.23 | 1.20 | -3.00 | -0.54 | -1.02 | -2.04 | -4.04 | -8.02 | -16.0 | -31.7 | -63.7 |
| 1.79 | 1.07 | -3.33 | -0.53 | -1.00 | -2.03 | -4.01 | -7.99 | -16.0 | -31.7 | -63.9 |
| 2.36 | 1.06 | -3.58 | -0.53 | -1.01 | -2.04 | -4.02 | -8.01 | -16.0 | -31.8 | -64.3 |
| 2.92 | 1.03 | -3.84 | -0.53 | -1.04 | -2.06 | -4.06 | -8.08 | -16.1 | -31.9 | -64.4 |
| 3.49 | 1.20 | -4.11 | -0.52 | -1.04 | -2.06 | -4.05 | -8.09 | -16.1 | -32.0 | -64.7 |
| 4.05 | 1.35 | -4.46 | -0.51 | -1.02 | -2.04 | -4.00 | -8.04 | -16.1 | -32.1 | -63.7 |
| 4.61 | 1.39 | -4.78 | -0.51 | -1.01 | -2.03 | -3.97 | -8.01 | -16.0 | -32.1 | -63.6 |
| 5.18 | 1.35 | -5.11 | -0.51 | -1.01 | -2.02 | -3.96 | -7.98 | -16.0 | -31.9 | -62.5 |
| 5.74 | 1.28 | -5.47 | -0.52 | -1.01 | -2.02 | -3.96 | -7.95 | -15.9 | -31.7 | -61.4 |
| 6.31 | 1.21 | -5.91 | -0.53 | -1.02 | -2.02 | -3.96 | -7.91 | -15.8 | -31.4 | -59.8 |
| 6.87 | 1.18 | -6.47 | -0.54 | -1.04 | -2.01 | -3.96 | -7.85 | -15.7 | -31.3 | -58.6 |
| 7.44 | 1.16 | -7.26 | -0.55 | -1.09 | -2.04 | -4.05 | -7.78 | -16.2 | -32.8 | -59.8 |
| 8.00 | 1.17 | -7.71 | -0.56 | -1.16 | -2.11 | -4.33 | -7.74 | -17.1 | -37.5 | -61.0 |
1. Clean the surface of the product, do not soak the product in cleaning solution for cleaning;
2. Pay attention to anti-static during installation or storage;
3、整体温度大于125℃的情况，订货前与我们协商
