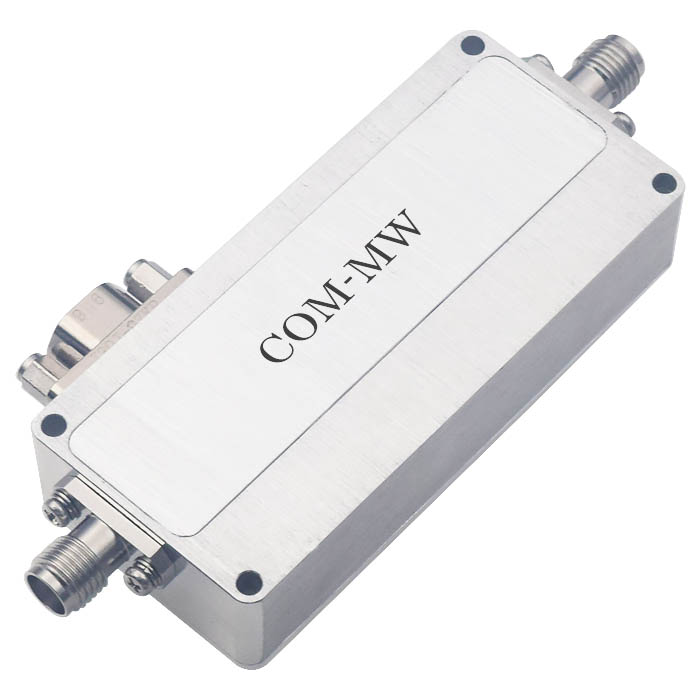

0.1~40GHz, Attenuation range0~63dB, step1dB, 0.5W, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.1 | ~ | 40 | GHz |
| Attenuation range | 0 | ~ | 63 | dB |
| IL | 15 | 19 | dB | |
| VSWR | 2 | 2.5 | ||
| Attenuation accuracy root mean square | 3 | dB |
| step | 1dB |
|---|---|
| Power Capacity | 0.5W Design assurance |
| Impedance | 50Ω |

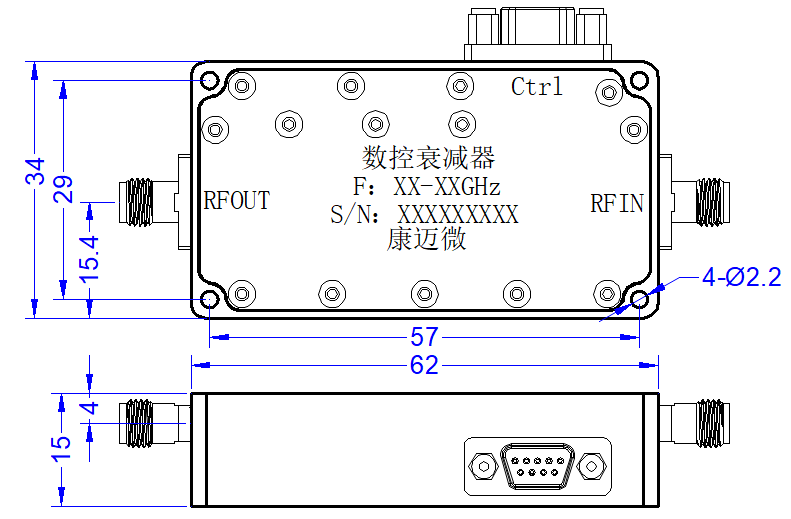

| Connector | 2.92-F Detachable, Pin 0.3mm |
| Surface | Nickel plating |
| Working voltage | +12V |
| Working current | 50mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -40~+120℃ Design assurance |
| Other | J30J-K connector power supply and control |
| Attenuation | A6 | A5 | A4 | A3 | A2 | A1 |
|---|---|---|---|---|---|---|
| 1 | 1 | 1 | 1 | 1 | 1 | 0 |
| 2 | 1 | 1 | 1 | 1 | 0 | 1 |
| 4 | 1 | 1 | 1 | 0 | 1 | 1 |
| 8 | 1 | 1 | 0 | 1 | 1 | 1 |
| 16 | 1 | 0 | 1 | 1 | 1 | 1 |
| 31 | 1 | 0 | 0 | 0 | 0 | 0 |
| 63 | 0 | 0 | 0 | 0 | 0 | 0 |

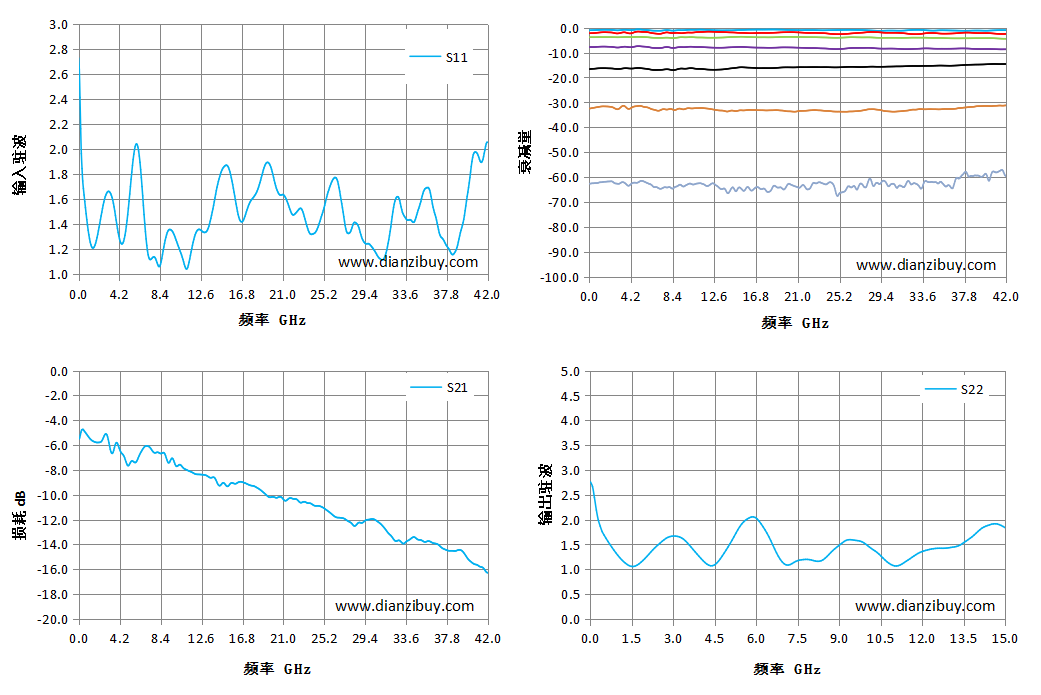

| Frequency(GHz) | S11 VSWR | S21 IL dB | A1 dB | A2 dB | A4 dB | A8 dB | A16 dB | A32 dB | A63 dB | S22 VSWR |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 1.7 | -5.3 | -1.1 | -2.3 | -3.9 | -7.9 | -16.6 | -32.6 | -62.7 | 1.7 |
| 6 | 2 | -7.3 | -1 | -1.9 | -3.9 | -7.8 | -16.6 | -32.1 | -62.6 | 2 |
| 9 | 1.3 | -7 | -1 | -2.1 | -3.9 | -7.8 | -16.6 | -32.5 | -63.3 | 1.5 |
| 12 | 1.3 | -8.3 | -0.9 | -1.6 | -4 | -7.9 | -16.8 | -32.5 | -63.5 | 1.4 |
| 15 | 1.9 | -9.1 | -0.9 | -2 | -3.7 | -7.7 | -16 | -33.3 | -64.4 | 1.8 |
| 18 | 1.6 | -9.3 | -0.7 | -2.1 | -3.9 | -8.1 | -16.2 | -33.2 | -66 | 1.3 |
| 21 | 1.6 | -10.3 | -1 | -1.9 | -3.7 | -8 | -15.9 | -33.6 | -64 | 1.6 |
| 24 | 1.3 | -10.8 | -1 | -2.3 | -3.9 | -8.4 | -15.9 | -33.4 | -62.7 | 1.7 |
| 27 | 1.6 | -11.9 | -0.9 | -2.1 | -3.9 | -8.1 | -15.8 | -33.5 | -65 | 1.1 |
| 30 | 1.2 | -12 | -1.2 | -2 | -4 | -8.4 | -15.6 | -33.6 | -62.8 | 1.3 |
| 33 | 1.6 | -13.7 | -0.9 | -2.6 | -4 | -8.5 | -15.4 | -32.9 | -62.8 | 2.1 |
| 36 | 1.7 | -13.8 | -1.1 | -2.4 | -4.2 | -8.4 | -15.2 | -32.6 | -63.7 | 1.6 |
| 39 | 1.3 | -14.4 | -1.1 | -2.1 | -4.2 | -8.5 | -14.8 | -31.6 | -59.4 | 1.6 |
| Line sequence | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| definition | +12V | GND | A1 | A2 | A3 | A4 | A5 | A6 |
