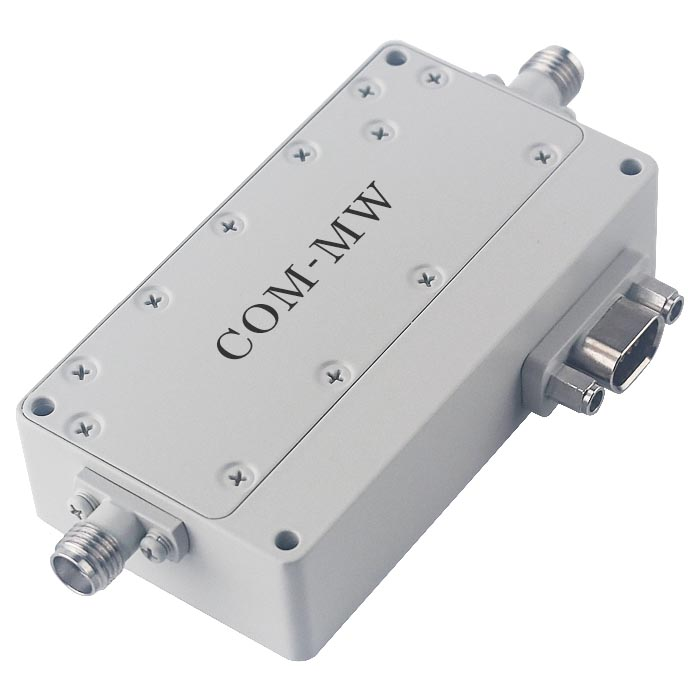

0.2~18GHz, Attenuation range0~63dB, step1dB, 0.3W, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.2 | ~ | 18 | GHz |
| Attenuation range | 0 | ~ | 63 | dB |
| IL | 8 | dB | ||
| VSWR | 2 | |||
| Attenuation accuracy root mean square | 3 | dB |
| step | 1dB |
| Power Capacity | 0.3W Design assurance |
| Impedance | 50Ω |
| Connector | SMA-F Detachable, Pin 0.38mm |
| Surface | White |
| Working voltage | +12V |
| Working current | 150mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -40~+120℃ Design assurance |
| Other | J30J connector power supply and control |
| Attenuation | A6 | A5 | A4 | A3 | A2 | A1 |
|---|---|---|---|---|---|---|
| 1 | 1 | 1 | 1 | 1 | 1 | 0 |
| 2 | 1 | 1 | 1 | 1 | 0 | 1 |
| 4 | 1 | 1 | 1 | 0 | 1 | 1 |
| 8 | 1 | 1 | 0 | 1 | 1 | 1 |
| 16 | 1 | 0 | 1 | 1 | 1 | 1 |
| 32 | 1 | 0 | 0 | 0 | 0 | 0 |
| 63 | 0 | 0 | 0 | 0 | 0 | 0 |

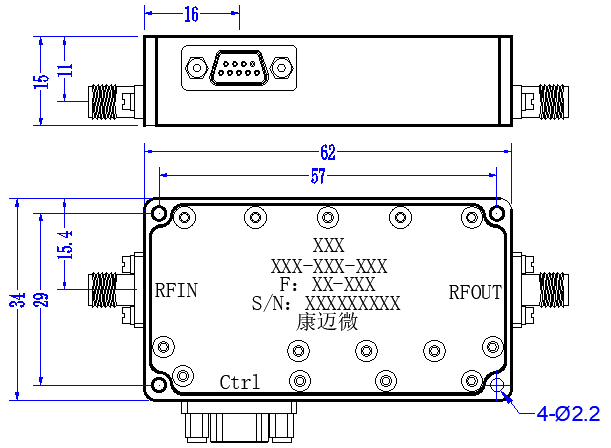

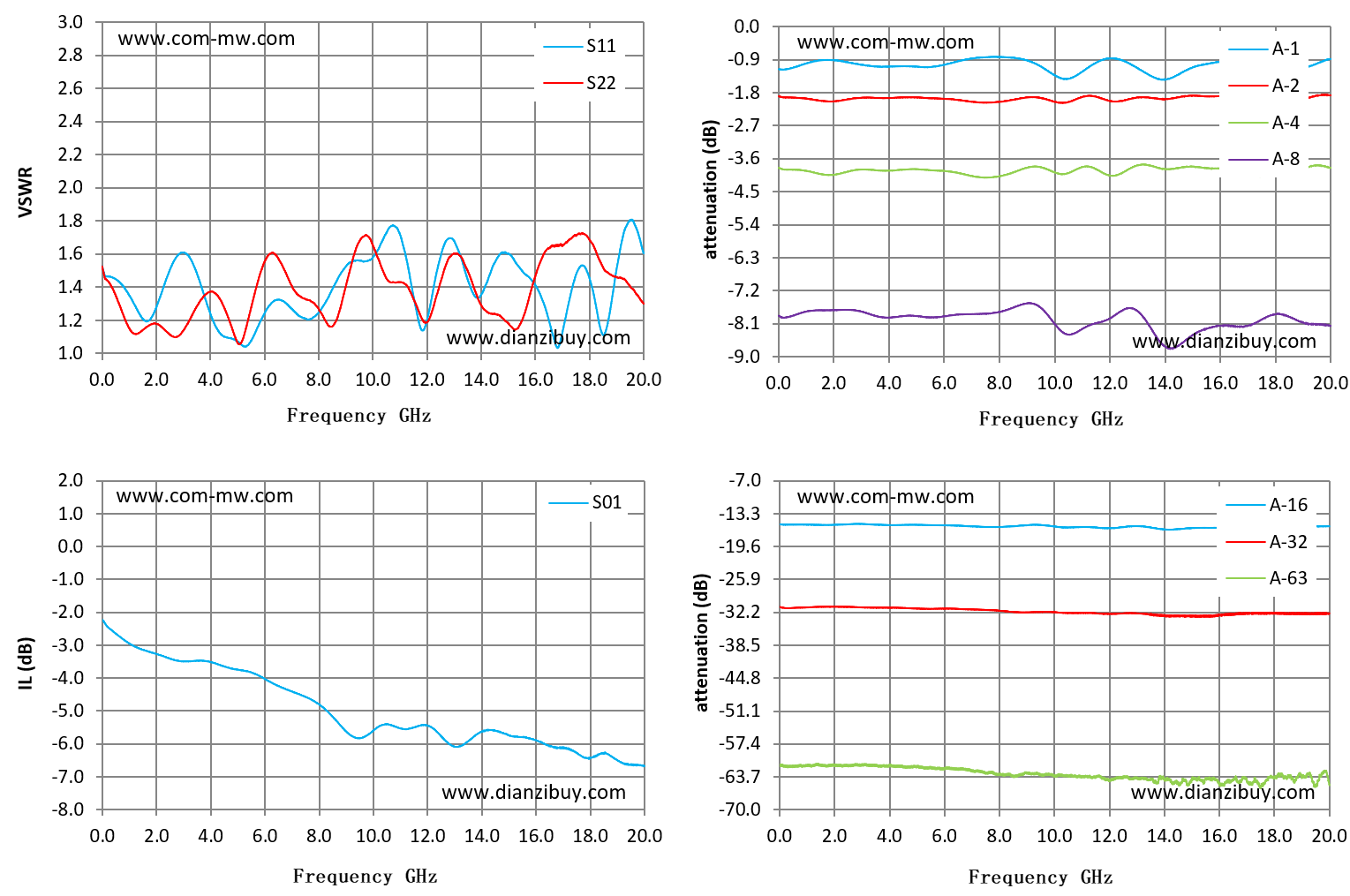

| Frequency GHz | S11 VSWR | S01 IL dB | A-1 dB | A-2 dB | A-4 dB | A-8 dB | A-16 dB | A-32 dB | A-63 dB |
|---|---|---|---|---|---|---|---|---|---|
| 0.01 | 1.53 | -2.23 | -1.16 | -1.90 | -3.85 | -7.88 | -15.3 | -31.1 | -61.4 |
| 1.43 | 1.23 | -3.12 | -0.93 | -2.01 | -4.01 | -7.74 | -15.4 | -31.1 | -61.4 |
| 2.86 | 1.60 | -3.49 | -1.02 | -1.95 | -3.90 | -7.75 | -15.3 | -31.2 | -61.4 |
| 4.29 | 1.14 | -3.59 | -1.08 | -1.94 | -3.91 | -7.92 | -15.5 | -31.3 | -61.6 |
| 5.71 | 1.14 | -3.90 | -1.08 | -1.96 | -3.92 | -7.93 | -15.5 | -31.5 | -62.0 |
| 7.14 | 1.25 | -4.46 | -0.85 | -2.06 | -4.09 | -7.84 | -15.7 | -31.6 | -62.5 |
| 8.57 | 1.41 | -5.25 | -0.85 | -1.98 | -3.96 | -7.65 | -15. | -32.1 | -63.6 |
| 10.00 | 1.58 | -5.60 | -1.32 | -2.05 | -3.97 | -8.11 | -15.7 | -32.1 | -63.5 |
| 11.43 | 1.41 | -5.52 | -1.01 | -1.90 | -3.86 | -8.11 | -15.9 | -32.3 | -63.7 |
| 12.86 | 1.70 | -6.04 | -1.07 | -1.95 | -3.82 | -7.70 | -15.7 | -32.3 | -64.0 |
| 14.29 | 1.46 | -5.58 | -1.38 | -1.95 | -3.88 | -8.77 | -16.3 | -32.8 | -65.0 |
| 15.71 | 1.47 | -5.83 | -0.99 | -1.90 | -3.87 | -8.20 | -16.0 | -32.8 | -64.4 |
| 17.14 | 1.23 | -6.14 | -0.79 | -1.96 | -4.04 | -8.13 | -16.1 | -32.4 | -65.1 |
| 18.57 | 1.12 | -6.29 | -1.09 | -2.06 | -4.00 | -7.94 | -15.7 | -32.4 | -63.7 |
| 20.00 | 1.60 | -6.67 | -0.88 | -1.87 | -3.85 | -8.17 | -15.7 | -32.4 | -65.3 |
| Line sequence | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| definition | +12V | GND | A1 | A2 | A3 | A4 | A5 | A6 |
