18~26GHz, 主线插损1dB, Coupling20dB, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
耦合检波模块
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 18 | ~ | 26 | GHz |
| 主线插损 | 1 | dB | ||
| Power | 15 | ~ | 30 | dBm |
| Coupling | 20 | dB | ||
| Directivity | 20 | dB | ||
| Main line VSWR | 1.5 | |||
| 检波精度 | 1 | dB |
| Connector | 2.92-K |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Work Temp. | -40~+60℃ |
| 脉冲体制 | 单载频脉冲波形1、脉冲宽度:0.3us~2us；2、重复频率:0.1kHz~1kHz |
| 脉冲体制 | 线性调频波形1、脉冲宽度:1us~1000us；2、瞬时带宽:1MHz~50MHz3、重复频率:50Hz~1kHz |
| 连续波体制 | 1、连续波2、三角调频连续波，带宽 50MHz3、相位编码波形，码元宽度 0.02us |
| 射频信号说明 | 频率范围实际上包含了射频信号的带宽，比如信号带宽为 500MHz 时，在 8~18GHz 频段内，载频最小为 7.25GHz，最大为 17.75GHz |

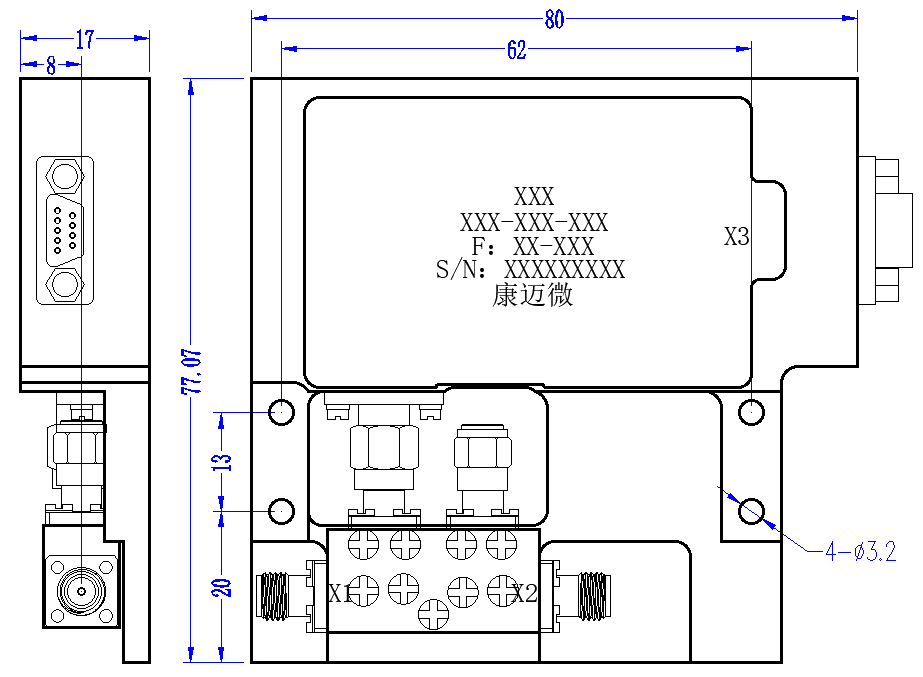

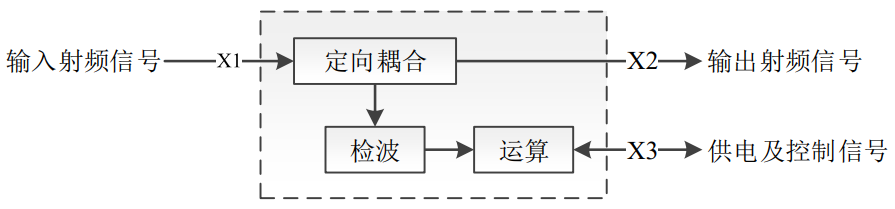

| 端口号 | 名称 | 插座型号 | 说明 |
|---|---|---|---|
| X1 | 输入射频信号 | SMA-K | |
| X2 | 输出射频信号 | SMA-K | 输出信号与X1同频 |
| X3 | 输出射频信号 | J30J-9ZKP | 直流电源输入、信号波形参数（频率、 脉宽、重频等）输入和功率数值输出 |
| 引脚序号 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|
| Pin Definition | 485-A | 485-B | +12V | GND | 预留 | 预留 | 预留 | 预留 | 预留 |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
