1~2GHz, Main line insertion loss1dB, Coupling20dB, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Coupled detection module
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1 | ~ | 2 | GHz |
| Main line insertion loss | 1 | dB | ||
| Power | 20 | ~ | 40 | dBm |
| Coupling | 20 | dB | ||
| Directivity | 20 | dB | ||
| Main line VSWR | 1.5 | |||
| Detection accuracy | 1 | dB |
| Connector | SMA-K |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Operation Temp. | -40~+60℃ |
| 脉冲体制 | 单载频脉冲波形1、脉冲宽度:0.3us~2us；2、重复频率:0.1kHz~1kHz |
| 脉冲体制 | 线性调频波形1、脉冲宽度:1us~1000us；2、瞬时带宽:1MHz~50MHz3、重复频率:50Hz~1kHz |
| 连续波体制 | 1、连续波2、三角调频连续波，带宽 50MHz3、相位编码波形，码元宽度 0.02us |
| RF signal description | 频率范围实际上包含了射频信号的带宽，比如信号带宽为 500MHz 时，在 8~18GHz 频段内，载频最小为 7.25GHz，最大为 17.75GHz |

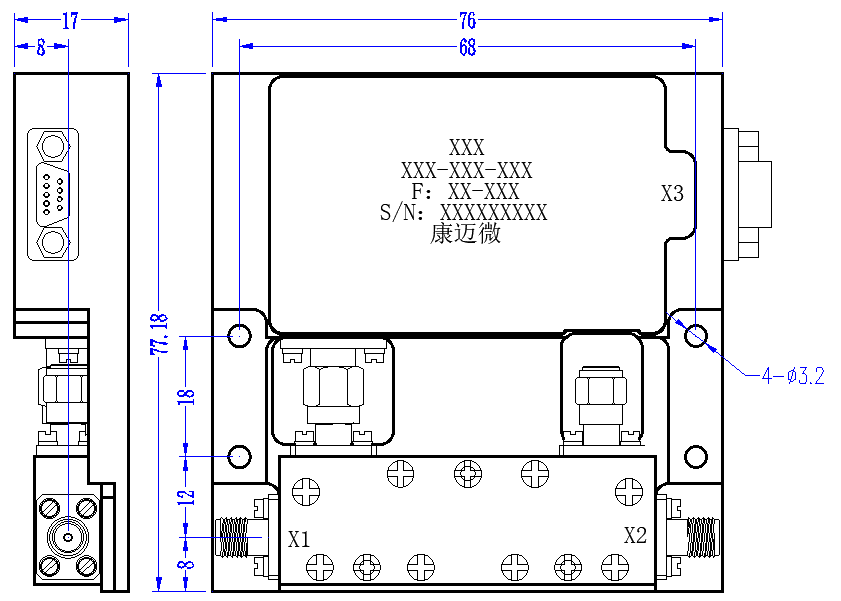

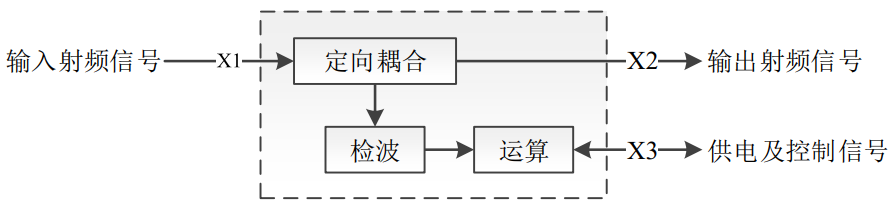

| 端口号 | Name | Socket model | Illustrate |
|---|---|---|---|
| X1 | Input RF | SMA-K | |
| X2 | Output RF signal | SMA-K | The output signal is on the same frequency as X1 |
| X3 | Output RF signal | J30J-9ZKP | 直流电源输入、信号波形参数（频率、 脉宽、重频等）输入和功率数值输出 |
| Pin number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|
| Pin Definition | 485-A | 485-B | +12V | GND | Reserve | Reserve | Reserve | Reserve | Reserve |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
