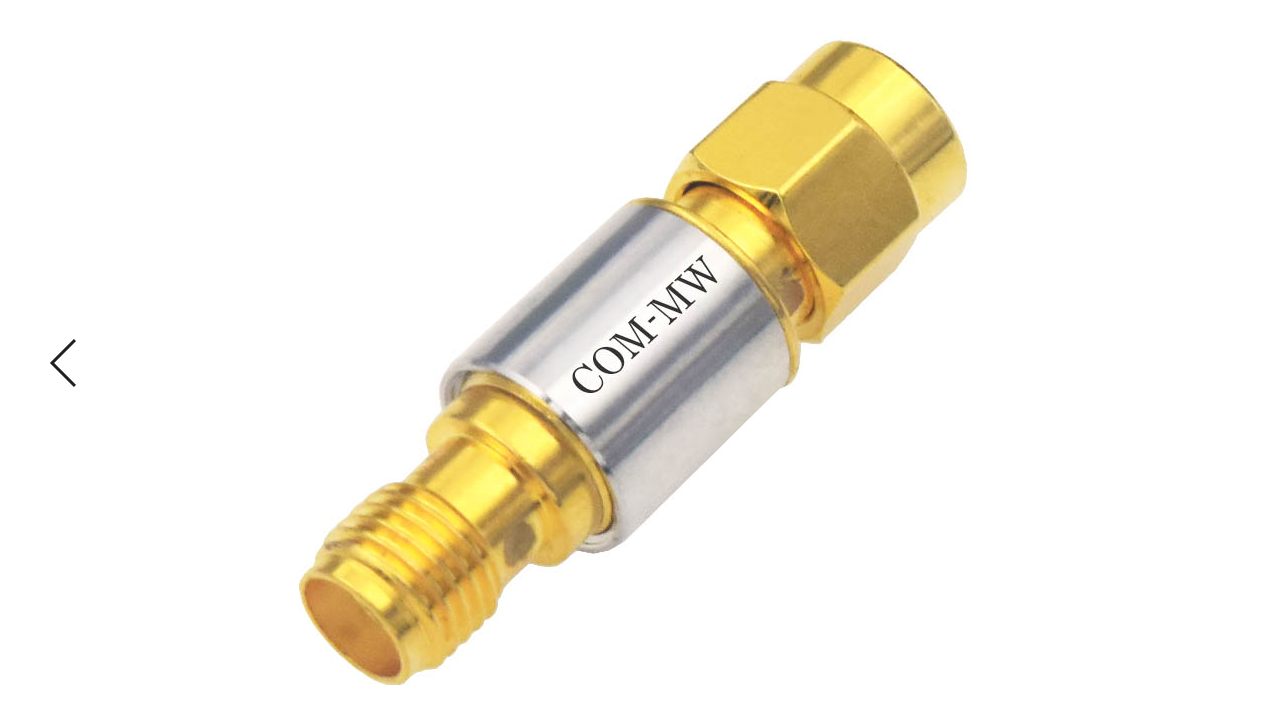

Frequency0.1~12GHz, Dynamic range-30~+20dBm, SMA-JK
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Small volume, coaxial.
| Parameters | Min | Typical | Max | Units | Note |
|---|---|---|---|---|---|
| Frequency | 0.1 | ~ | 12 | GHz | |
| Dynamic range | -30 | ~ | +20 | dBm | |
| VSWR | 1.4 | 1.8 | |||
| sensitivity | 500 | mV/mW | |||
| flatness | ±2 | dB | |||
| Response time | 500 | ns |
| Connector | SMA-JK |
|---|---|
| Connector material | Shell copper |
| Surface | Gold-plating |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | Positive polarity; RF input SMA-J |

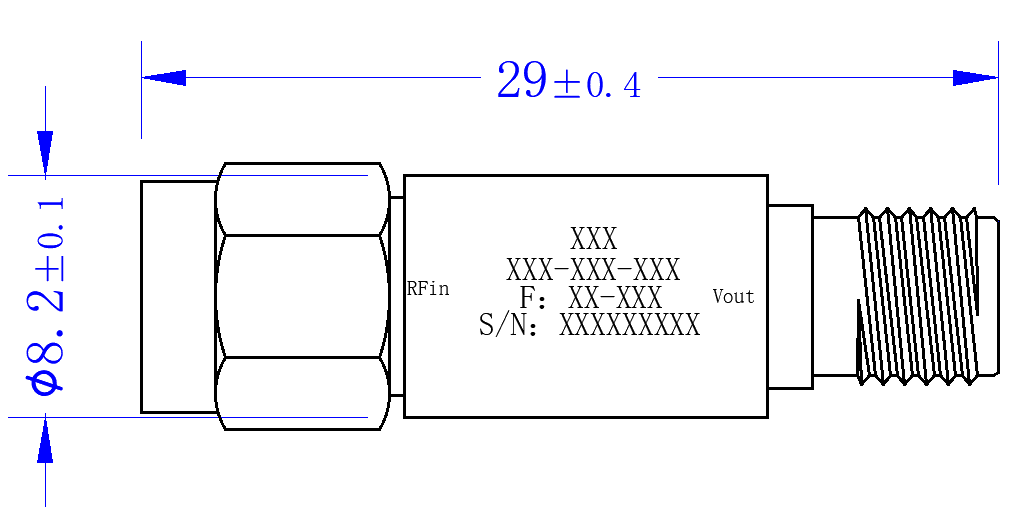

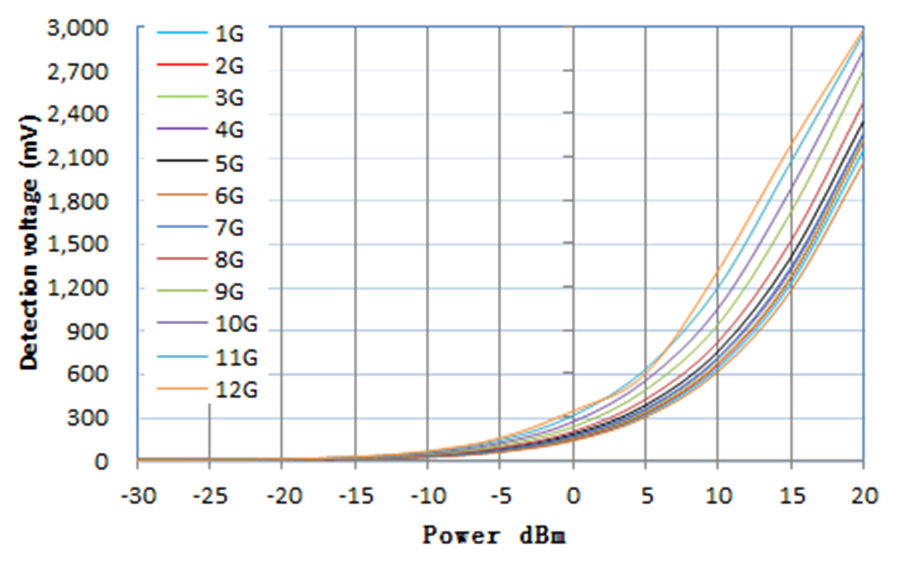

| Power | 1G voltage mv | 4G voltage mv | 7G voltage mv | 10G voltage mv | 12G voltage mv |
|---|---|---|---|---|---|
| -30dBm | 1.2 | 1.6 | 1.4 | 1.5 | 1.7 |
| -25dBm | 3.1 | 3.3 | 3.2 | 3.7 | 3.6 |
| -20dBm | 4.7 | 5.2 | 4.8 | 7 | 8.5 |
| -15dBm | 9 | 10.2 | 10.6 | 18.1 | 22.1 |
| -10dBm | 23.3 | 26.6 | 27.3 | 47.2 | 61.1 |
| -5dBm | 59.5 | 69.3 | 69.8 | 118.5 | 152.4 |
| 0dBm | 142.7 | 163.1 | 166 | 264 | 339 |
| 5dBm | 312.8 | 349.7 | 355.3 | 549 | 597 |
| 10dBm | 639 | 704 | 711 | 1050 | 1311 |
| 15dBm | 1220 | 1313 | 1334 | 1873 | 2179 |
| 20dBm | 2139 | 2250 | 2255 | 2828 | 2975 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
