Product features

Broadband, low noise, with rechargeable batteries.

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	4	~	9	GHz
Gain	40			dB
Gain flatness			±2	dB
Noise figure			3	dB
VSWR			2.5
P-1dB	10			dBm

Other parameters

Connector	N -JK (Input N-J)
Connector material	Stainless steel
Max input power	10dBm
Impedance	50Ω
Surface	Grey
Working voltage	+5V, USB Type-C port charging.
Working current	500mA
Operation Temp.	-10~+50℃ Design assurance
Quality Grade	Industrial grade
Other	1. Input N-J, Output N-K
	2. With power on/off instructions, charging instructions (including full), undervoltage instructions, (normal) working instructions;
	3. Lithium battery power supply (3 hours);
	4. Configure charger (adapter)
	/
	6. The charging environment temperature is degree0~+50℃;
	7. Charging Connector: USB Type-C, with dustproof silicone pad;

Typical test data

Frequency	S11 VSWR	S22 VSWR	NF	Gain	P-1dB out	Psat
GHz	/	/	dB	dB	dBm	dBm
2	2.06	1.3	2.77	41.26	18.4	20
2.64	2.07	1.94	1.47	41.8	17.4	19.6
3.29	1.62	1.49	1.35	43.74	18	19.5
3.93	1.72	1.7	1.3	43.92	17.5	20.3
4.57	1.69	2.18	1.05	43.36	18.7	19.9
5.21	1.17	1.93	1.22	44	18.9	19.4
5.86	1.16	1.61	1.17	44.94	18.9	19.6
6.5	1.29	1.64	1.15	44.73	18.6	19.5
7.14	1.18	1.57	1.3	45.16	18	19.4
7.79	1.1	1.31	1.29	45.52	17.3	19.3
8.43	1.65	1.53	1.4	44.48	17.3	19.7
9.07	2.09	2.19	1.35	43.09	16.9	20
9.71	1.81	2.69	1.33	42.82	16.2	19.9
10.36	1.92	1.92	1.69	43.9	14.9	19.4
11	4.26	1.49	1.47	41.42	14.9	19.4

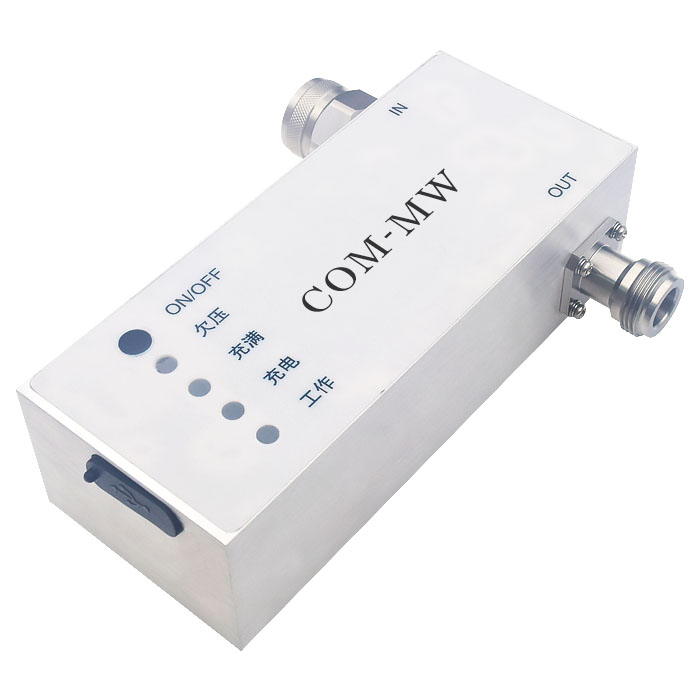

Reference picture

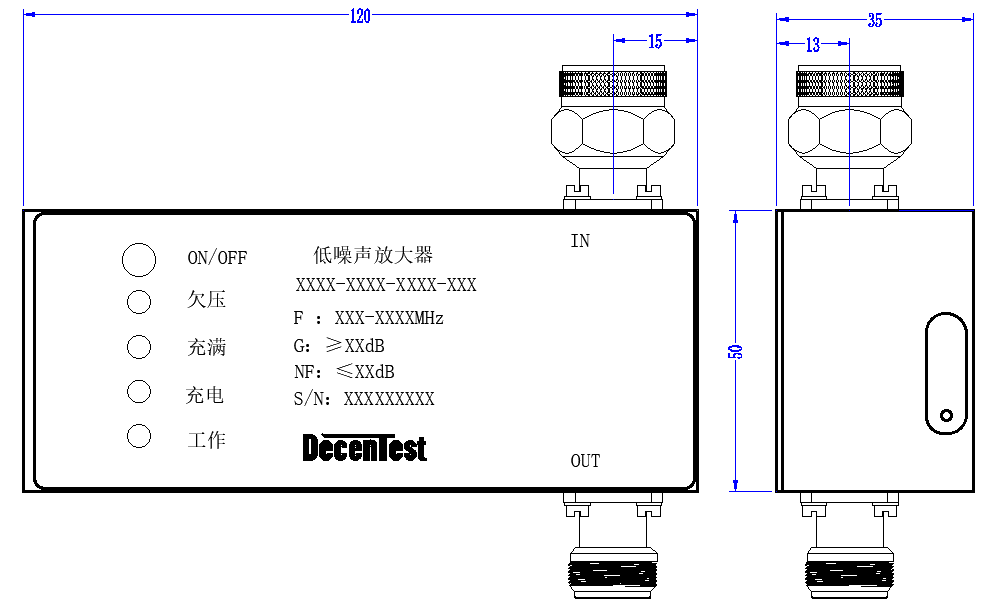

Configuration(mm)

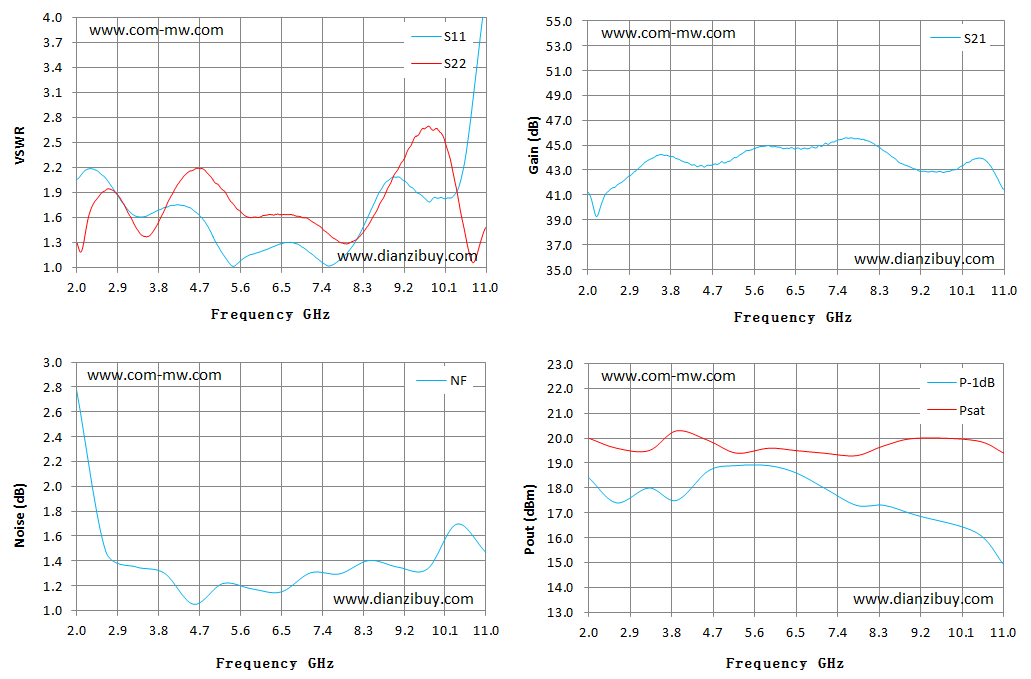

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is connected to the antenna, electrostatic protection or isolation measures should be taken.

Broadband LNA DCLNA0409-40C-S
