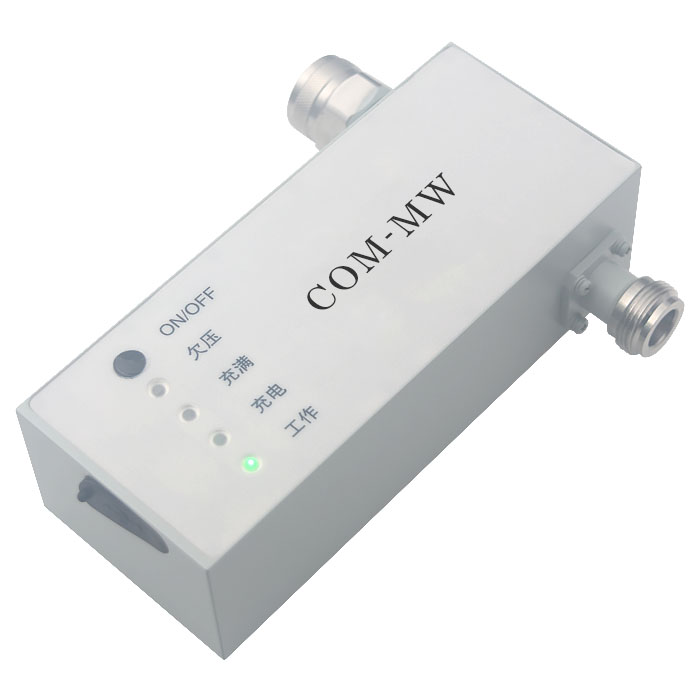

30~6000MHz, Gain35dB, Noise figure2dB, P-1dB10dBm, N, USB Type-C port charging.
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, low noise, with rechargeable batteries.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 30 | ~ | 6000 | MHz |
| Gain | 35 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 2 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 10 | dBm |

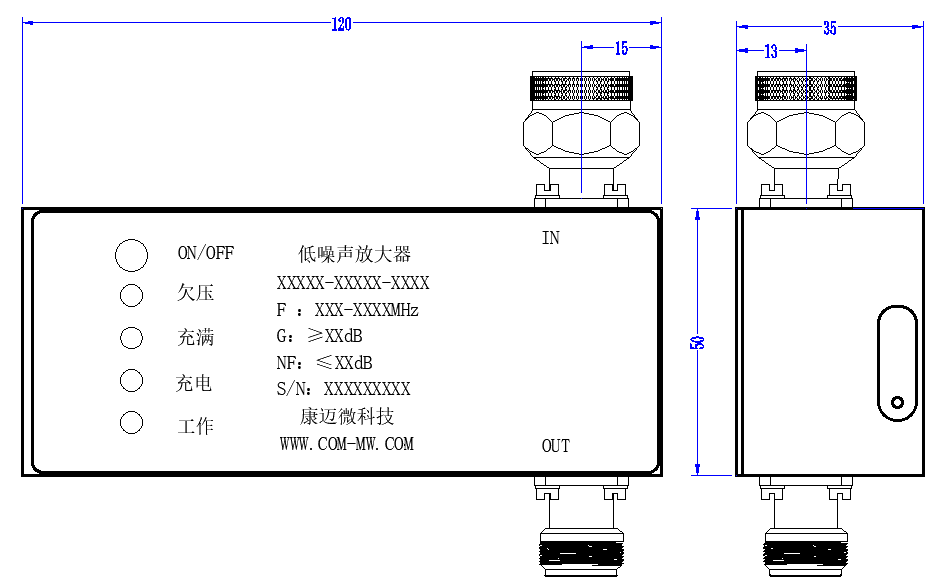

| Connector | N -JK (Input N-J) |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Grey |
| Working voltage | +5V, USB Type-C port charging. |
| Working current | 500mA |
| Operation Temp. | -10~+50℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | 1. Equipped with on/off indication, charging indication, undervoltage indication, and working indication; 2. Lithium battery power supply (3 hours); 3. Configure charger; 4. Charging environment temperature: 0~+50 ℃; 5. Charging interface: USB Type-C |

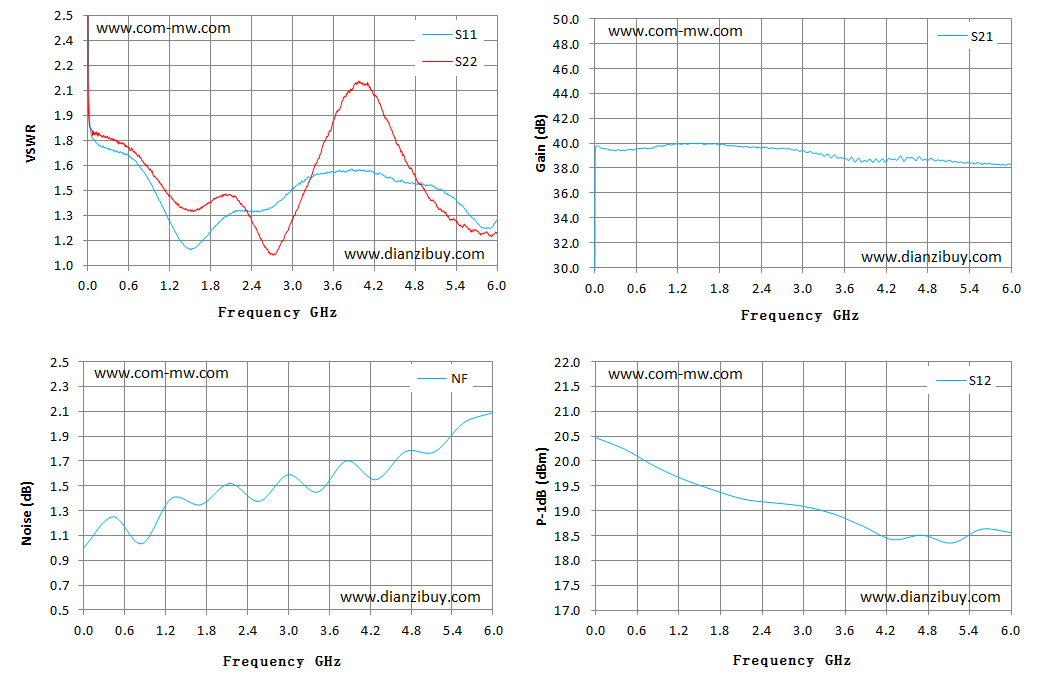

| Frequency | S11 VSWR | S22 VSWR | NF | Gain | P-1dB Out |
|---|---|---|---|---|---|
| GHz | / | / | dB | dB | dBm |
| 0.03 | 1.88 | 1.85 | 1 | 39.75 | 20.47 |
| 0.46 | 1.68 | 1.74 | 1.25 | 39.43 | 20.23 |
| 0.88 | 1.52 | 1.59 | 1.04 | 39.72 | 19.89 |
| 1.31 | 1.19 | 1.37 | 1.41 | 39.99 | 19.62 |
| 1.74 | 1.17 | 1.36 | 1.35 | 39.96 | 19.41 |
| 2.16 | 1.32 | 1.42 | 1.52 | 39.7 | 19.23 |
| 2.59 | 1.33 | 1.13 | 1.37 | 39.6 | 19.16 |
| 3.02 | 1.46 | 1.28 | 1.59 | 39.42 | 19.09 |
| 3.44 | 1.55 | 1.71 | 1.45 | 38.9 | 18.94 |
| 3.87 | 1.57 | 2.05 | 1.71 | 38.5 | 18.69 |
| 4.29 | 1.55 | 1.96 | 1.55 | 38.69 | 18.42 |
| 4.72 | 1.49 | 1.58 | 1.77 | 38.64 | 18.51 |
| 5.15 | 1.46 | 1.34 | 1.77 | 38.49 | 18.35 |
| 5.57 | 1.32 | 1.23 | 2.01 | 38.32 | 18.63 |
| 6 | 1.27 | 1.2 | 2.09 | 38.35 | 18.56 |
