Product features

Broadband, low noise, with rechargeable batteries.

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	30	~	4000	MHz
Gain	35			dB
Gain flatness			±3	dB
Noise figure			3	dB
VSWR			2.5
P-1dB	10			dBm

Other parameters

Connector	N -JK (Input N-J)
Connector material	Stainless steel
Impedance	50Ω
Surface	Grey
Working voltage	+5V, USB Type-C port charging.
Working current	500mA
Operation Temp.	-10~+50℃ Design assurance
Quality Grade	Industrial grade

Other	1. Equipped with power on/off indication, charging indication (including full charge), undervoltage indication, and (normal) working indication;
	2. Lithium battery power supply (3 hours);
	3. Configure charger (adapter);
	/
	5. Charging environment temperature: 0~+50 ℃;
	6. Charging interface: USB Type-C, with dustproof silicone pad

Typical test data

Frequency	S11 VSWR	S22 VSWR	NF	Gain	P-1dB Out
GHz	/	/	dB	dB	dBm
0.03	1.88	1.85	1	39.75	20.47
0.46	1.68	1.74	1.25	39.43	20.23
0.88	1.52	1.59	1.04	39.72	19.89
1.31	1.19	1.37	1.41	39.99	19.62
1.74	1.17	1.36	1.35	39.96	19.41
2.16	1.32	1.42	1.52	39.7	19.23
2.59	1.33	1.13	1.37	39.6	19.16
3.02	1.46	1.28	1.59	39.42	19.09
3.44	1.55	1.71	1.45	38.9	18.94
3.87	1.57	2.05	1.71	38.5	18.69
4.29	1.55	1.96	1.55	38.69	18.42
4.72	1.49	1.58	1.77	38.64	18.51
5.15	1.46	1.34	1.77	38.49	18.35
5.57	1.32	1.23	2.01	38.32	18.63
6	1.27	1.2	2.09	38.35	18.56

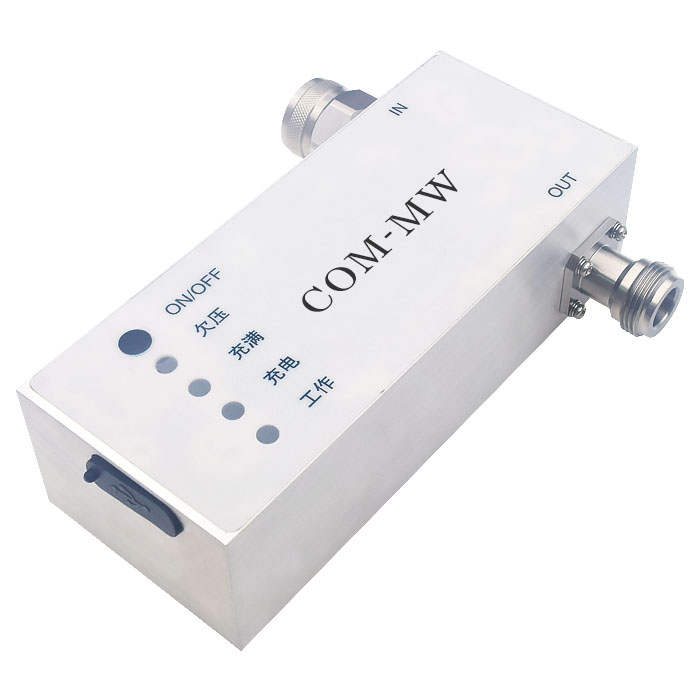

Reference picture

Configuration(mm)

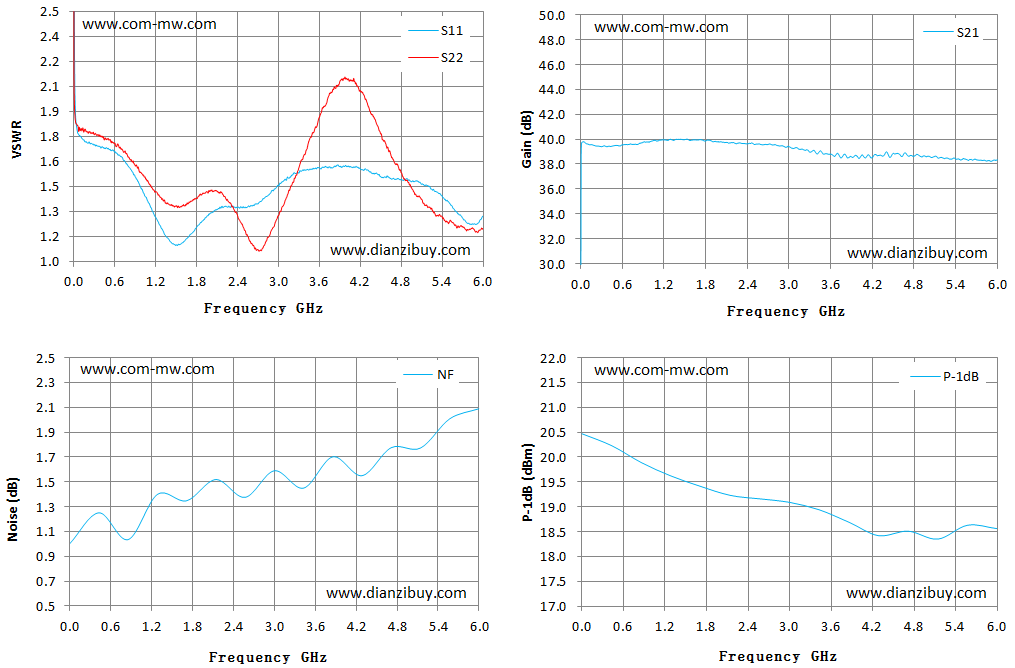

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the amplifier is connected to the antenna, electrostatic protection or isolation measures should be taken.

Broadband LNA DCLNA0104-35C-S
