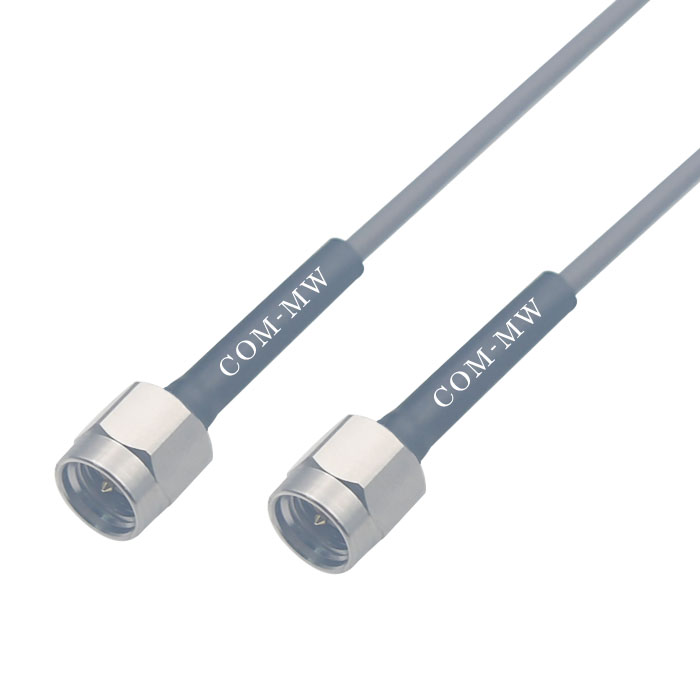

DC~18GHz, Stable amplitude and phase, 400mm, SMA-M, SMA-M
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
High cost performance stable amplitude and phase cable components.

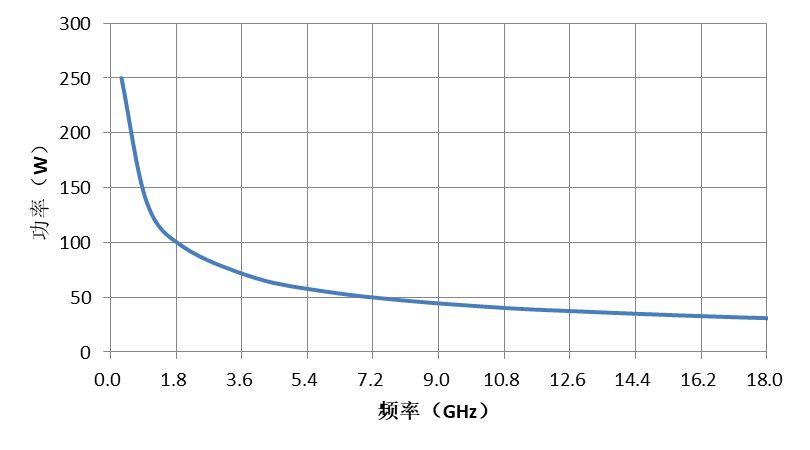

| Items | Frequency (G) | Min | Type | Max | Units |
|---|---|---|---|---|---|
| Frequency | DC | ~ | 18 | GHz | |
| IL | 1.44 | 1.50 | dB | ||
| VSWR | 1.25 | 1.35 |
| Cable category | Stable amplitude and phase |
| Length | 400mm |
| Connector 1 | SMA-M |
| Connector 2 | SMA-M |
| Impedance | 50Ω |
| Operation Temp. | -40~+85℃ Design assurance |
| Quality Grade | Industrial grade |

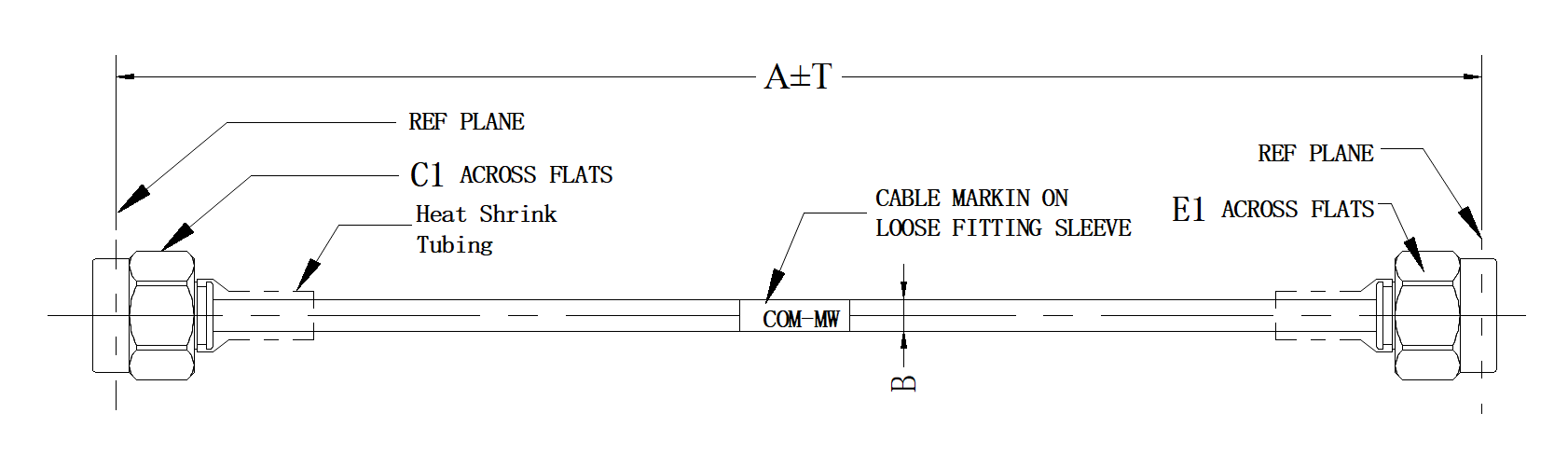

| A | 400 | mm | C1 | 8.9 | mm |
|---|---|---|---|---|---|
| B | 2.2 | mm | E1 | 8.9 | mm |
| T | 5 | mm |

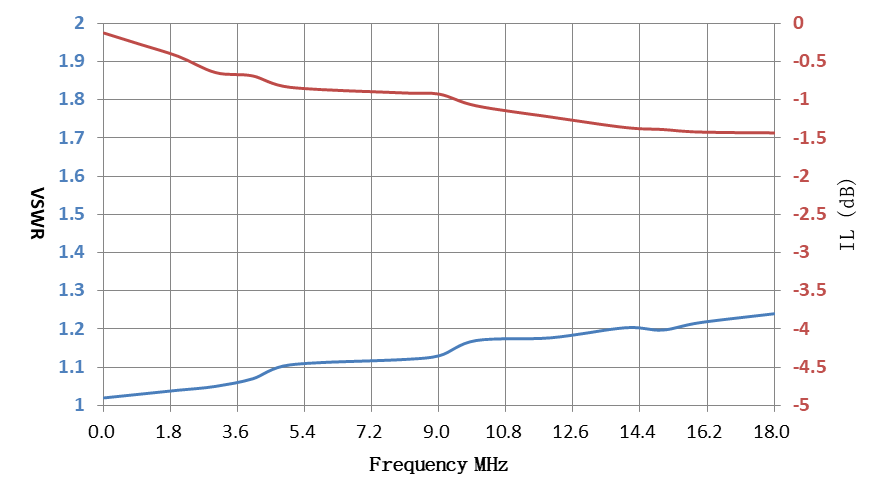

| F (MHz) | IL | VSWR | VSWR |
|---|---|---|---|
| 10 | 0.14 | 1.03 | 1.02 |
| 1000 | 0.24 | 1.01 | 1.01 |
| 2000 | 0.42 | 1.05 | 1.03 |
| 3000 | 0.61 | 1.06 | 1.06 |
| 4000 | 0.71 | 1.08 | 1.09 |
| 5000 | 0.82 | 1.1 | 1.1 |
| 8000 | 0.88 | 1.12 | 1.11 |
| 9000 | 0.9 | 1.13 | 1.12 |
| 10000 | 1.11 | 1.16 | 1.15 |
| 12000 | 1.21 | 1.17 | 1.17 |
| 14000 | 1.36 | 1.18 | 1.18 |
| 15000 | 1.4 | 1.22 | 1.22 |
| 16000 | 1.42 | 1.21 | 1.22 |
| 18000 | 1.43 | 1.25 | 1.23 |
