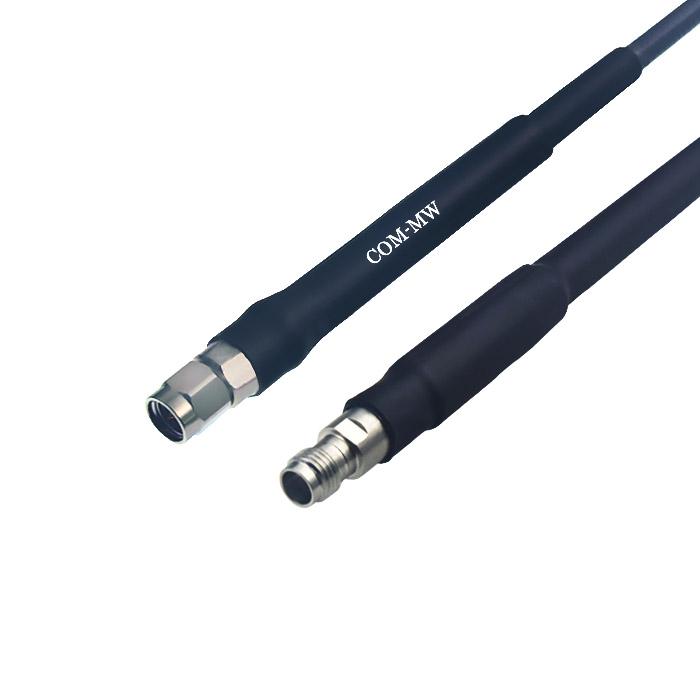

DC~40GHz, LL Phase Stable, 4000mm, 2.92-M or J, 2.4-F or K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Items | Frequency (G) | Min | Type | Max | Units |
|---|---|---|---|---|---|
| Frequency | DC | ~ | 40 | GHz | |
| IL | 40 | 11.85 | 12.56 | dB | |
| VSWR | 40 | 1.21 | 1.38 |
| Cable category | LL Phase Stable |
| Length | 4000mm |
| Connector 1 | 2.92-M or J |
| Connector 2 | 2.4-F or K |
| Impedance | 50Ω |
| Operation Temp. | -40~+65℃ Design assurance |
| Storage Temp. | -40~+65℃ Design assurance |
| Quality Grade | Industrial grade |

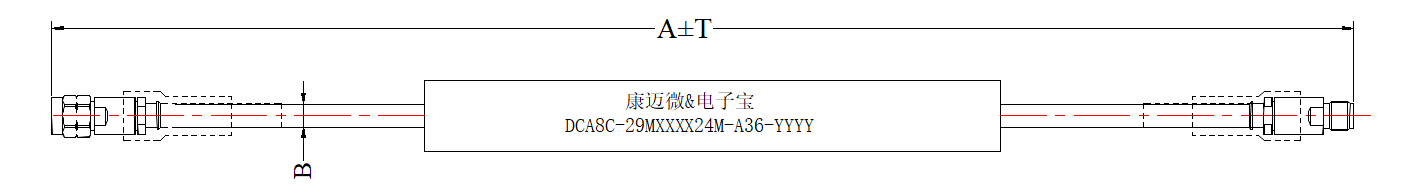

| A | 4000 | mm |
|---|---|---|
| B | 3.6 | mm |
| T | 20 | mm |
| Static turning radius | 15mm |
| Dynamic conversion to radius | 36mm |
