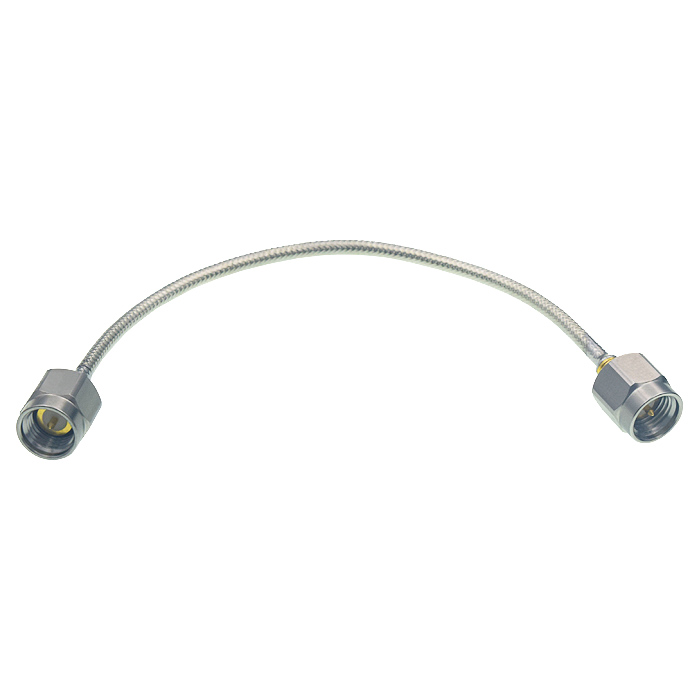

DC~20GHz, Semi flexible, 220mm, SMA-J, SMA-J
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
High reliability, low VSWR and high cost performance
| Items | Frequency (G) | Min | Type | Max | Units |
|---|---|---|---|---|---|
| Frequency | DC | ~ | 20 | GHz | |
| IL | DC-20 | 0.95 | 0.99 | dB | |
| VSWR | DC-20 | 1.35 | 1.35 |
| Cable category | Hand-Flex Cable |
| Length | 220mm |
| Connector 1 | SMA-M Stainless steel |
| Connector 2 | SMA-M Stainless steel |
| Impedance | 50Ω |
| Operation Temp. | -40~+65℃ Design assurance |
| Storage Temp. | -40~+65℃ Design assurance |

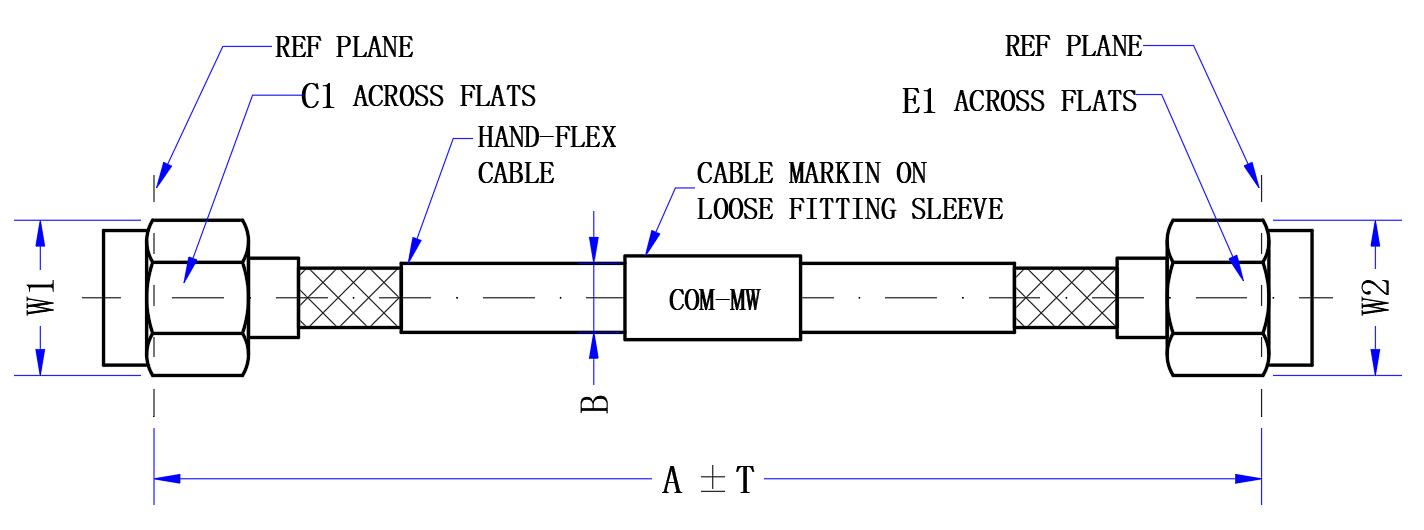

| A | 220 | mm | C1 | 8.0 | mm |
|---|---|---|---|---|---|
| B | 2.2 | mm | E1 | 8.0 | mm |
| T | 13 | mm | W1 | 8.9 | mm |
| W2 | 8.9 | mm |
| F (MHz) | IL (dB) | Input VSWR | Output VSWR |
|---|---|---|---|
| 100 | 0.01 | 1.02 | 1.01 |
| 1000 | 0.05 | 1.08 | 1.04 |
| 2500 | 0.14 | 1.10 | 1.06 |
| 4000 | 0.22 | 1.11 | 1.11 |
| 5000 | 0.28 | 1.13 | 1.13 |
| 6000 | 0.30 | 1.09 | 1.14 |
| 7000 | 0.35 | 1.12 | 1.15 |
| 8000 | 0.41 | 1.13 | 1.17 |
| 9000 | 0.52 | 1.15 | 1.19 |
| 10000 | 0.53 | 1.21 | 1.16 |
| 12000 | 0.56 | 1.15 | 1.18 |
| 15000 | 0.72 | 1.19 | 1.17 |
| 18000 | 0.81 | 1.16 | 1.19 |
| 20000 | 0.95 | 1.20 | 1.21 |
| 1 | Suggested installation radius greater than 10mm |
