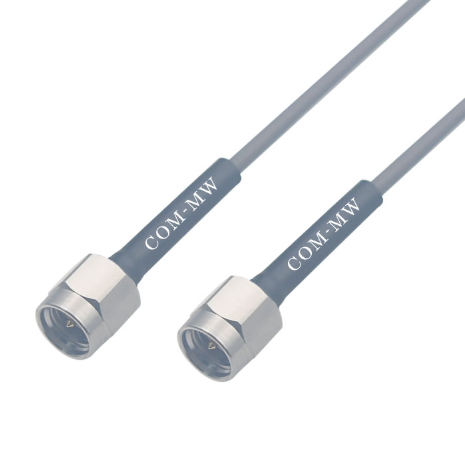

DC~18GHz, Stable amplitude and phaseCoaxial Cable, Length150mm, SMA-J, SMA-J
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

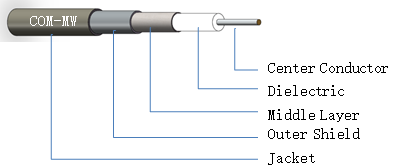

High cost performance, armored stable amplitude and phase cable.
| Items | Frequency (G) | Min | Type | Max | Units |
|---|---|---|---|---|---|
| Frequency | DC | ~ | 18 | GHz | |
| IL | DC-18 | 0.92 | dB | ||
| VSWR | DC-18 | 1.26 | 1.4 |
| Cable category | Stable amplitude and phase cable |
| Length | 150mm |
| Connector 1 | SMA-M Stainless steel |
| Connector 2 | SMA-M Stainless steel |
| Impedance | 50Ω |
| Operation Temp. | -40~+65℃ Design assurance |
| Storage Temp. | -40~+65℃ Design assurance |

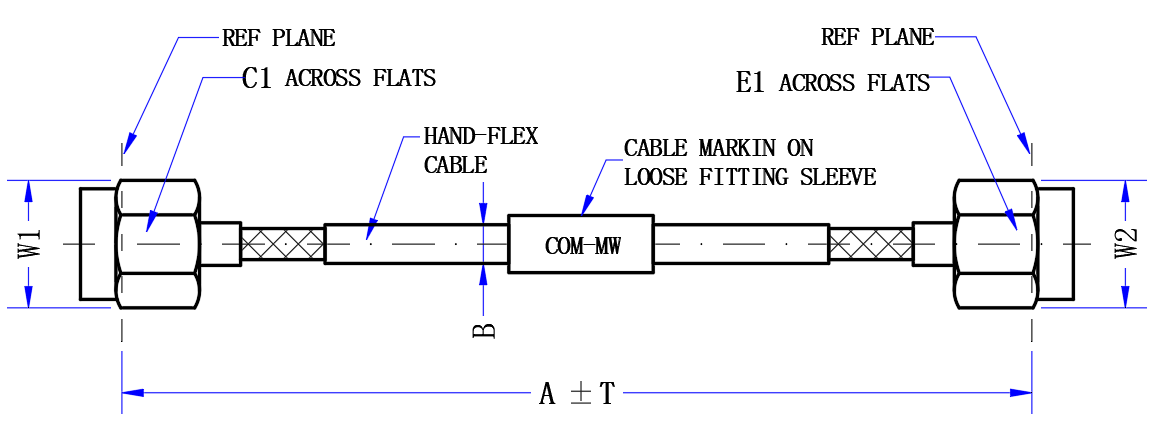

| A | 150 | mm | C1 | 8.0 | mm |
|---|---|---|---|---|---|
| B | 4.2 | mm | E1 | 8.0 | mm |
| T | 5 | mm | W1 | 8.9 | mm |
| W2 | 8.9 | mm |

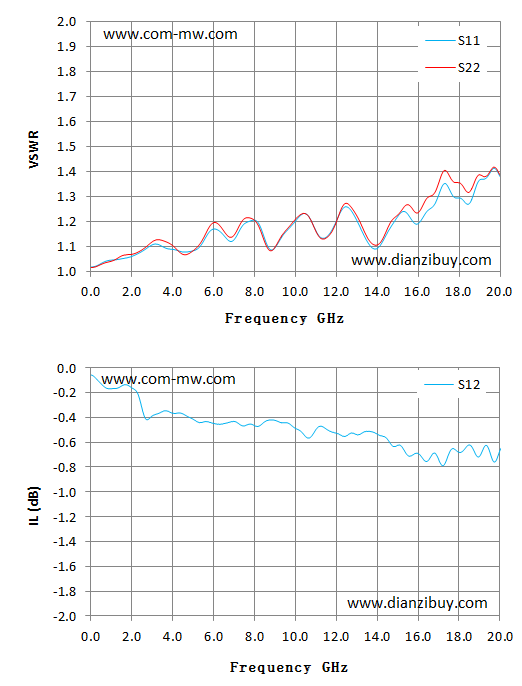

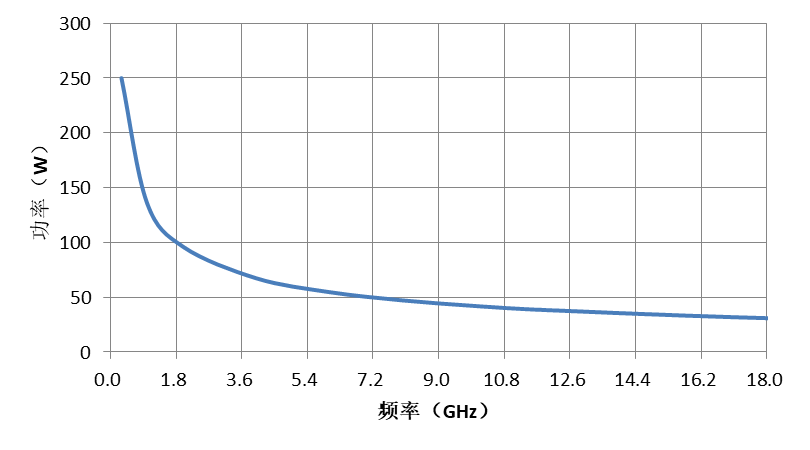

| Frequency GHz | S11 VSWR | S22 VSWR | S12 IL (dB) |
|---|---|---|---|
| 0.01 | 1.02 | 1.02 | -0.06 |
| 1.43 | 1.05 | 1.06 | -0.16 |
| 2.86 | 1.1 | 1.11 | -0.41 |
| 4.29 | 1.08 | 1.08 | -0.37 |
| 5.71 | 1.15 | 1.17 | -0.44 |
| 7.14 | 1.15 | 1.17 | -0.44 |
| 8.57 | 1.12 | 1.11 | -0.43 |
| 10 | 1.2 | 1.21 | -0.49 |
| 11.43 | 1.14 | 1.13 | -0.48 |
| 12.86 | 1.23 | 1.24 | -0.53 |
| 14.29 | 1.13 | 1.14 | -0.55 |
| 15.71 | 1.21 | 1.25 | -0.71 |
| 17.14 | 1.34 | 1.39 | -0.78 |
| 18.57 | 1.28 | 1.32 | -0.62 |
| 1 | nstallation radius greater than 20mm |
