30~1200MHz, 1:1Balun, SMD
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 30 | ~ | 1200 | MHz |
| IL | 1 | dB | ||
| Input VSWR | 2 | |||
| Amplitude balance | 0.5 | dB | ||
| Phase balance | ±5 | ° |
| Impedance ratio | 1:1 Balun |
| Connector | SMD |
| Power Capacity | 10W Design assurance |
| Operation Temp. | -45~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| ROHS | Compliant Available |

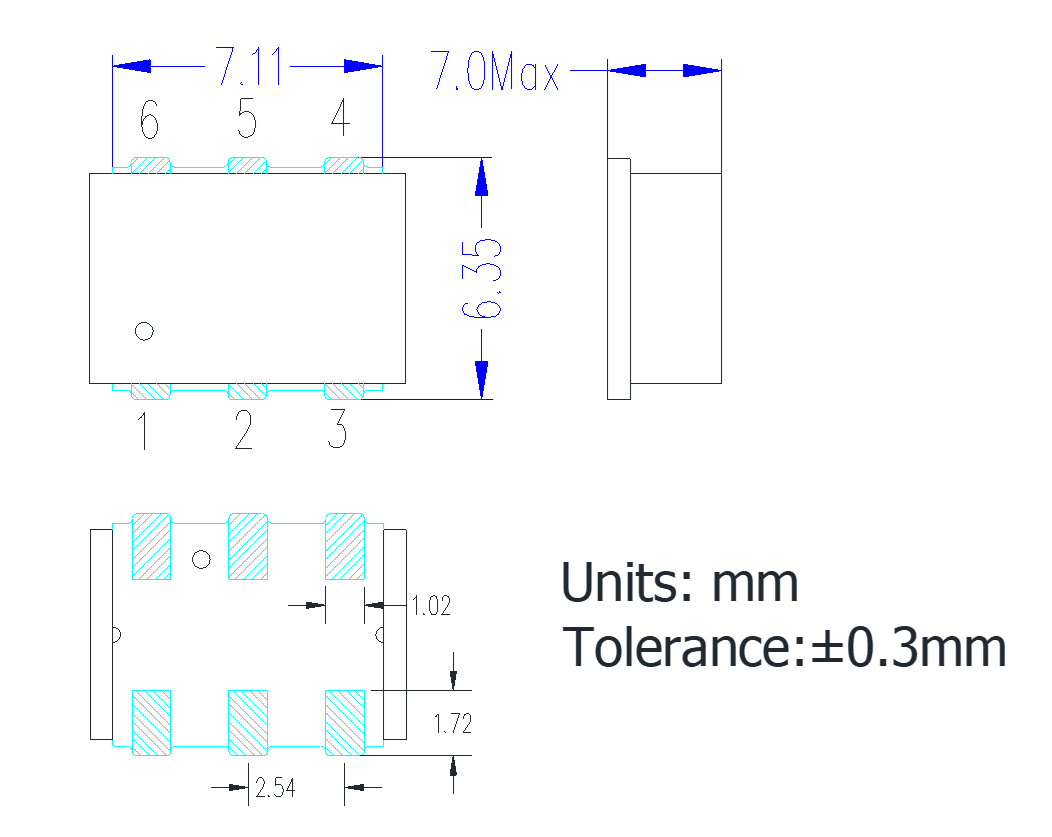

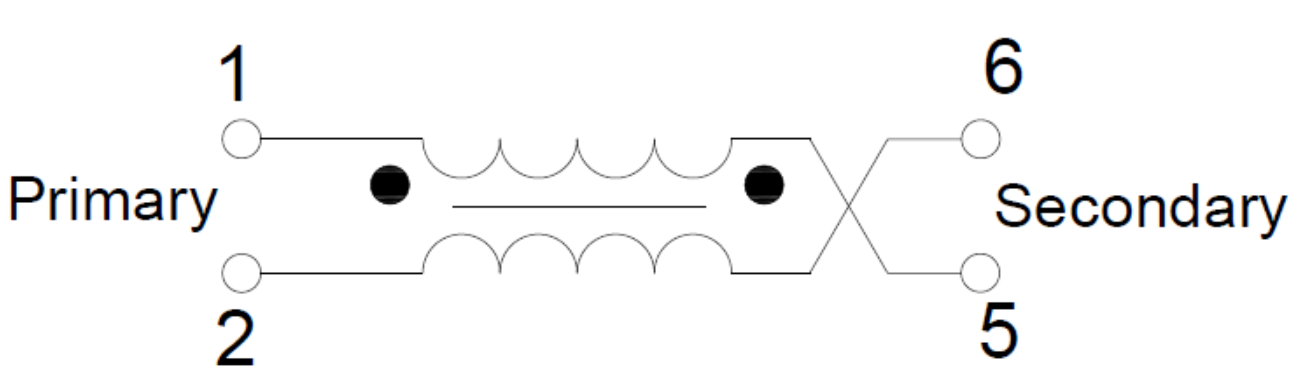

| PRIMARY DOT | Unbalance Port | 1 |
|---|---|---|
| PRIMARY | GND | 2 |
| SECONDARY DOT | Balance Port | 5 |
| SECONDARY | Balance Port | 6 |
| Not used | GND | 3，4 |
| 1 | Supports reflow soldering at 245 ℃. |
| --- | Short term soaking and cleaning, please dry in a timely manner. |
