20~520MHz, 1:1Balun, SMD, 200W
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 20 | ~ | 520 | MHz |
| IL | 0.45 | dB | ||
| Input VSWR | 1.3 | |||
| Amplitude balance | ±0.4 | dB | ||
| Phase balance | ±5 | ° |
| Impedance ratio | 1:1 Balun |
| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 200W Design assurance |
| Operation Temp. | -45~+85℃ Design assurance |

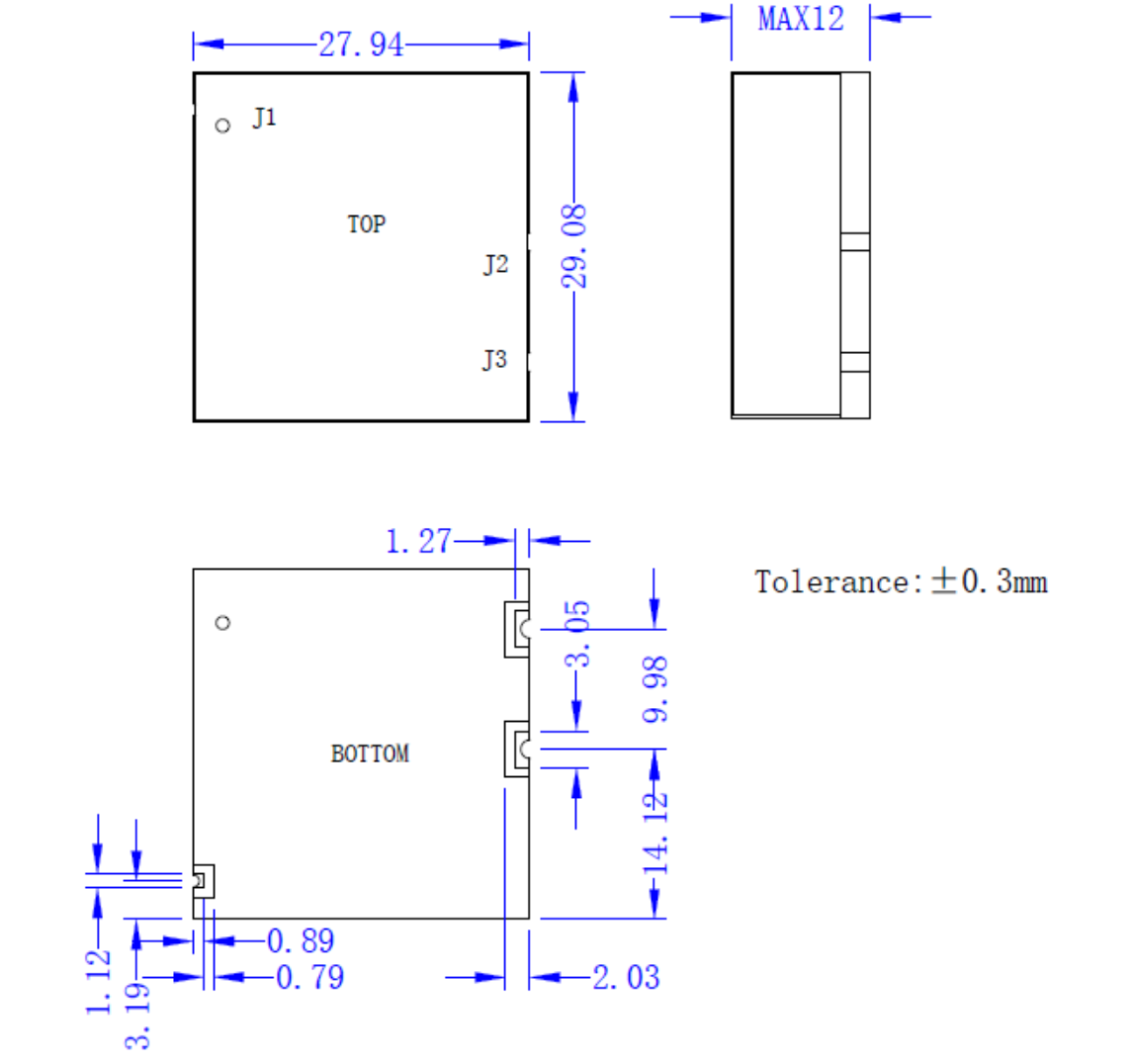

| J1 | 50Ω | --- |
|---|---|---|
| J2 | 25Ω | --- |
| J3 | 25Ω | --- |
| 1 | The product supports 190 ℃ reflow soldering |
