26~40GHz, Power-30dBm, P-1dB Output5dBm, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units | Units |
|---|---|---|---|---|---|
| Frequency | 26 | ~ | 40 | GHz | |
| Power | -30 | ~ | 25 | dBm | |
| Output power | 0 | dB | |||
| Gain flatness | ±0.5 | dB | @500MHz | ||
| Output power stability | ±0.5 | dB | |||
| P-1dB Output | 5 | dBm | |||
| Detection accuracy | 1 | dB |
| Connector | 2.92-K |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 1000mA |
| Operation Temp. | -0~+30℃ Design assurance |
| 脉冲体制 | 单载频脉冲波形:脉冲宽度:0.3us~2s；重复频率:0.1kHz~1kHz。 |
| 线性调频波形:脉冲宽度:1us~1000us； 瞬时带宽:1MHz~500MHz；重复频率:50Hz~1kHz | |
| 连续波体制 | Continuous wave |
| 三角调频连续波，带宽 500MHz； | |
| 相位编码波形，码元宽度 0.02s | |
| RF signal description | 频率范围实际上包含了射频信号的带宽，比如信号带宽为 500MHz 时，在 18~26GHz 频段内，载频最小为 18.25GHz，最大为 25.75GHz |
| Phase linearity | 线性调频信号脉冲宽度内，相位线性度≤±1º（依技术难度可适当放宽） |
| Other | The light on indicates normal operation |
| 输出功率稳定度只需在单次控制模式下严格满足指标要求 | |
| 检波精度可依据实际器件水平等因素适当放宽。 |

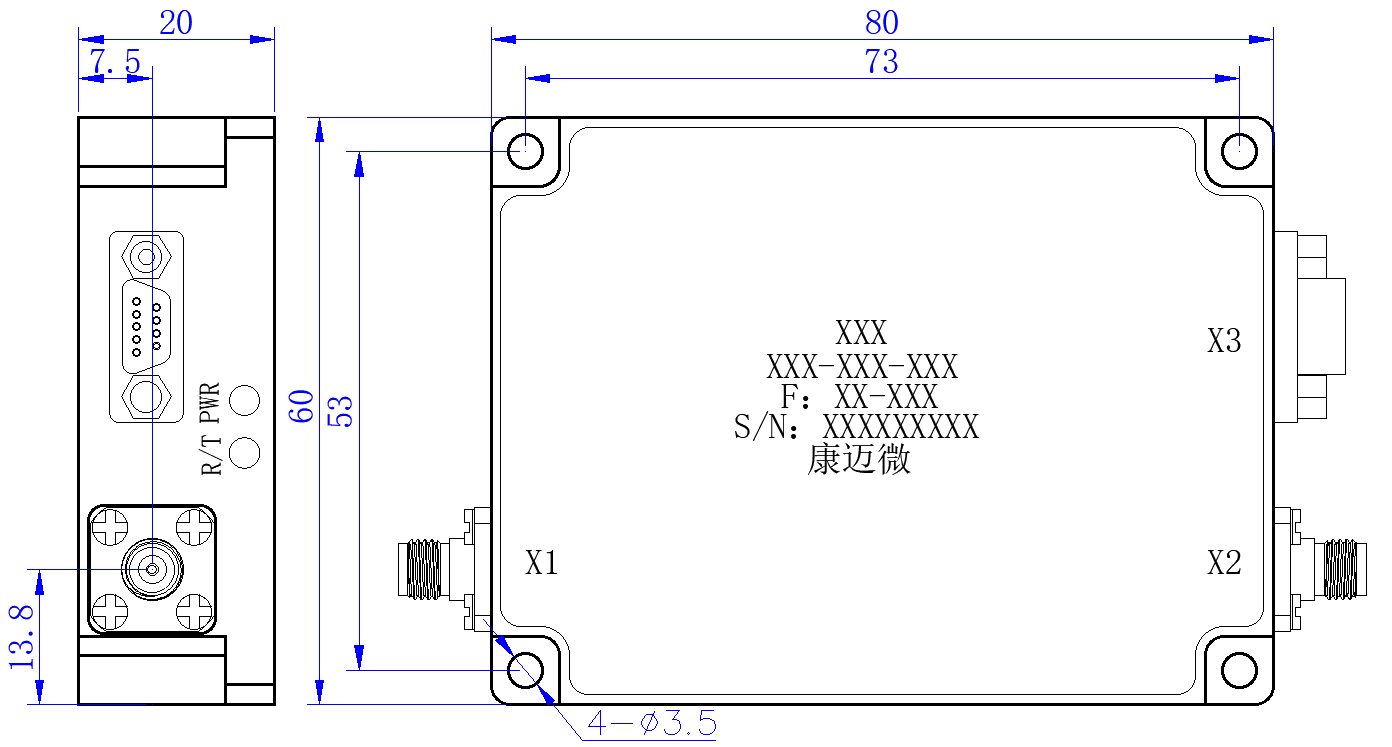

| 端口号 | Name | Socket model | Illustrate |
|---|---|---|---|
| X1 | Input RF | 2.92-K | RF signal |
| X2 | Output RF signal | 2.92-K | 输出与 X1 同频段的恒定功率信号 |
| X3 | Power supply and control signals | J30J-9ZKP | 直流电源输入、信号波形参数（频率、 脉宽、重频等）输入和功率数值输出 |
| 端子号 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|
| 电路特性 | 485_A | 485_B | +12V | Ground | Reserve | Reserve | Reserve | Reserve | Reserve |
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
