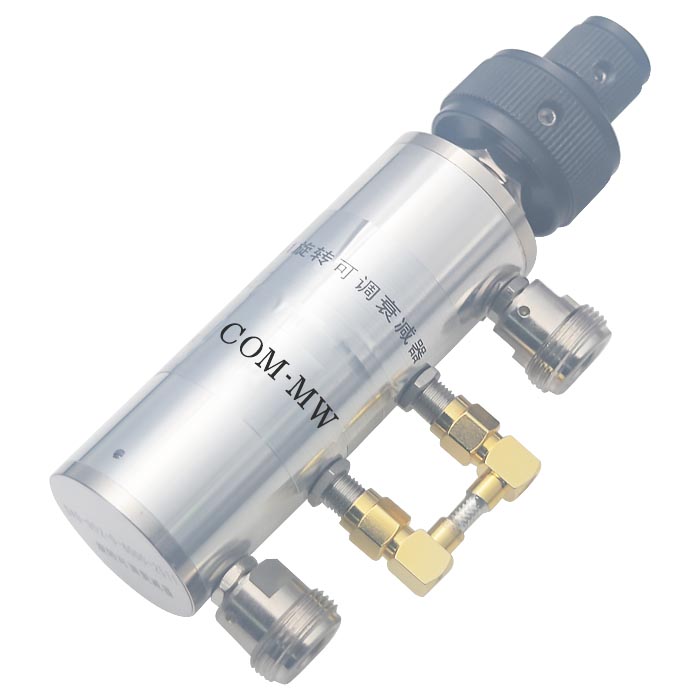

FrequencyDC~6GHz, Adjustable attenuation1~90dB, step1dB, 2W, 50Ω, N-F
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, adjustable attenuation value.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 6 | GHz |
| Adjustable attenuation | 1 | ~ | 90 | dB |
| step | 1 | dB | ||
| VSWR | 1.85 |
| Power Capacity | 2W Design assurance |
|---|---|
| Impedance | 50Ω |

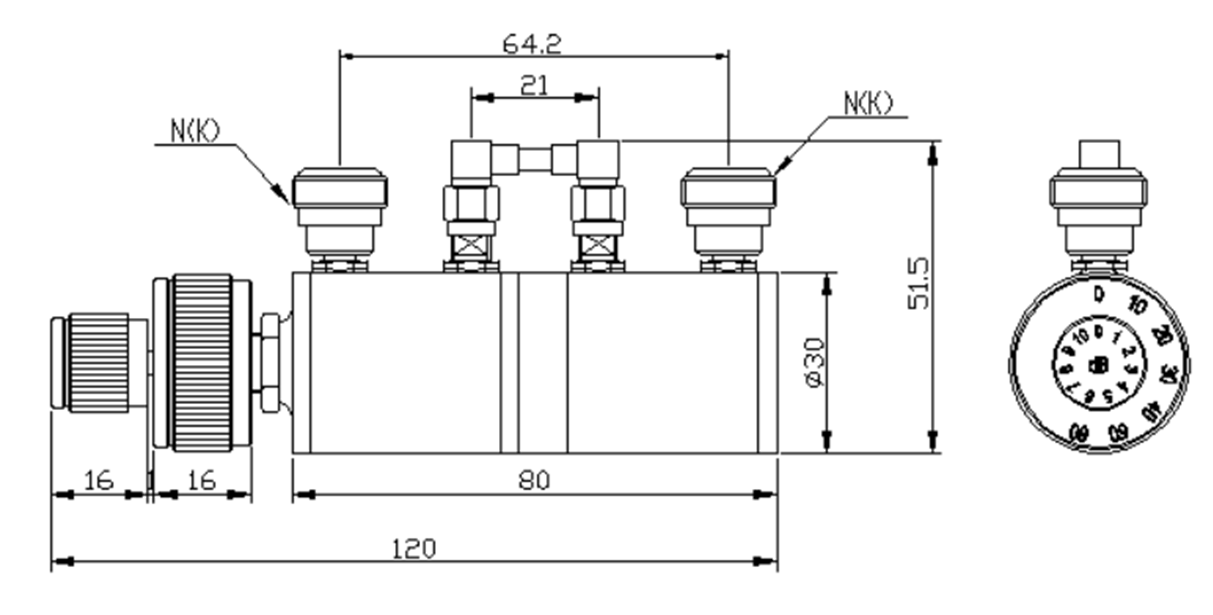

| Connector | N -F |
| Product shell material | Aluminum |
| Operation Temp. | -20~+85℃ Design assurance |
| Other | Manual knob adjustment |

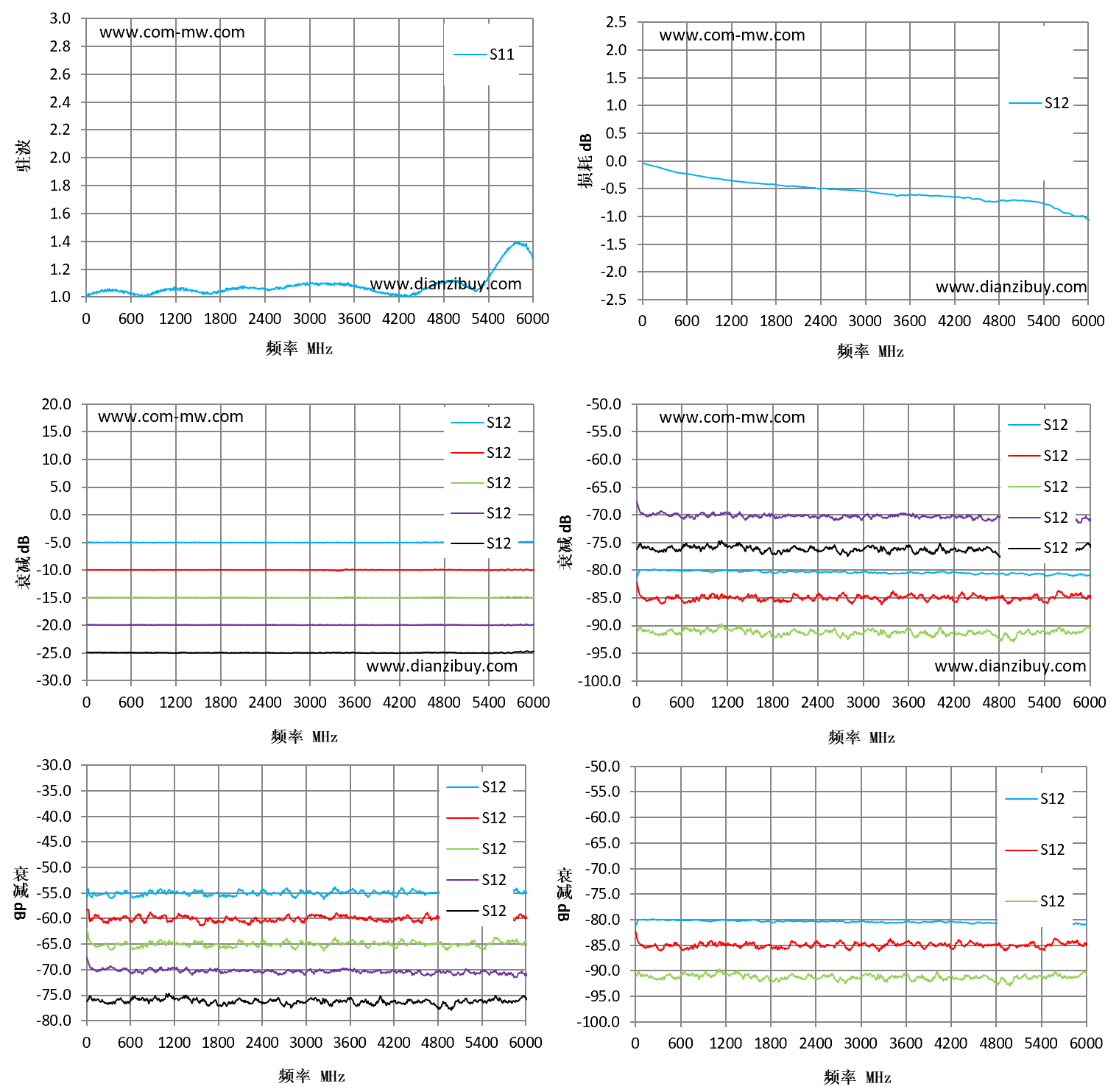

| Attenuation | Attenuation accuracy | |
|---|---|---|
| 1 | 1- 10dB | ±0.6dB |
| 2 | 11-60dB | ±0.9dB |
| 3 | 61-70dB | ±1.5dB |
| 4 | 71-90dB | ±2.5dB |
1. When installing attenuators, it is necessary to consider sufficient heat dissipation space and avoid installing them next to equipment with high heat output, otherwise the power capacity will decrease;
2. Small power attenuators do not have input and output directions, nor do they indicate directions. When high-power attenuators have input and output port markings, they must be connected to the equipment in the specified direction, otherwise the attenuator may burn out.
