FrequencyDC~8GHz, Attenuation3dB, 100W, 50Ω, N-JK
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

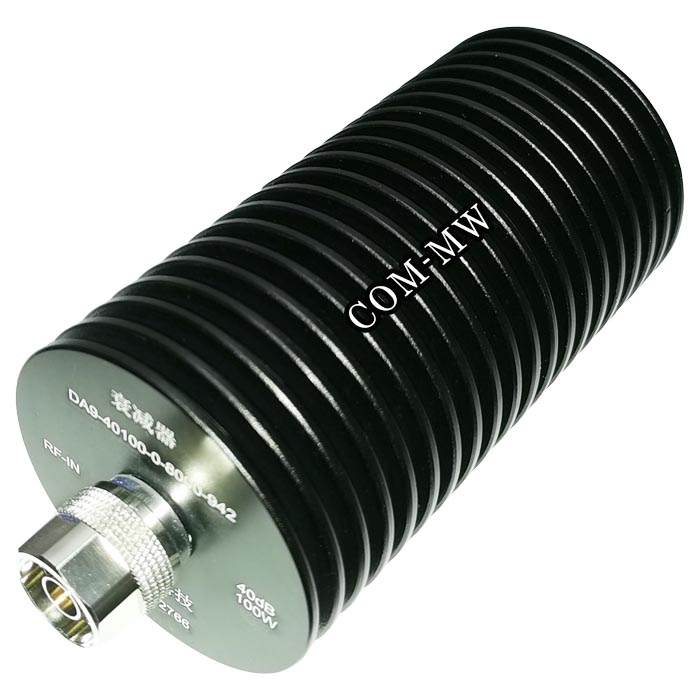

Broadband, high-power.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 8 | GHz |
| Attenuation | 2.5 | 3 | 5 | dB |
| VSWR | 1.25 |
| Power Capacity | 100W Design assurance |
| Impedance | 50Ω |
| Connector | N -JK |
| Connector material | Stainless steel |
| Surface | Black |
| Product shell material | Aluminum |
| Operation Temp. | -40~+85℃ Design assurance |
| Other | In Port N-J |
1. When installing attenuators, it is necessary to consider sufficient heat dissipation space and avoid installing them next to equipment with high heat output, otherwise the power capacity will decrease;

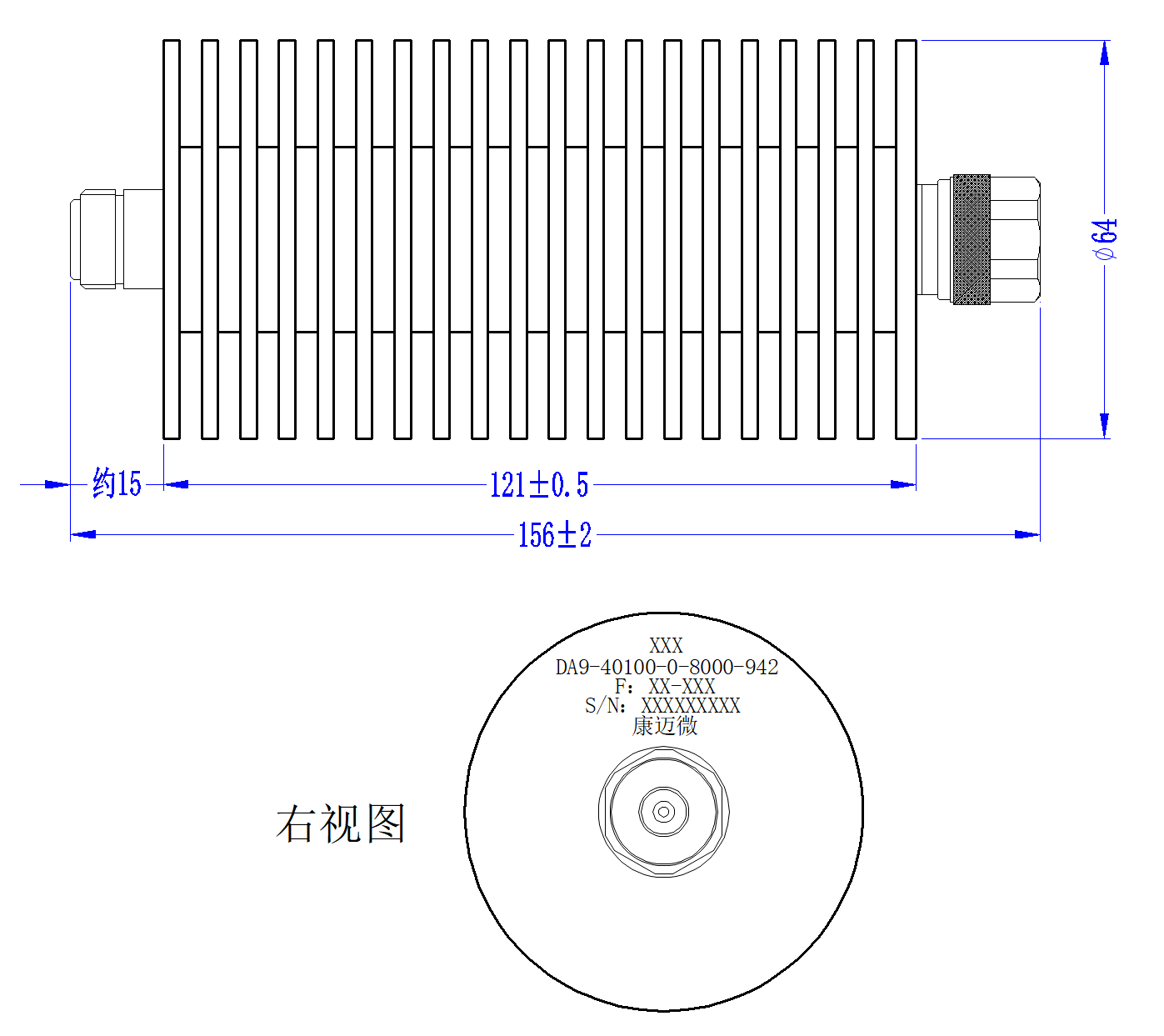

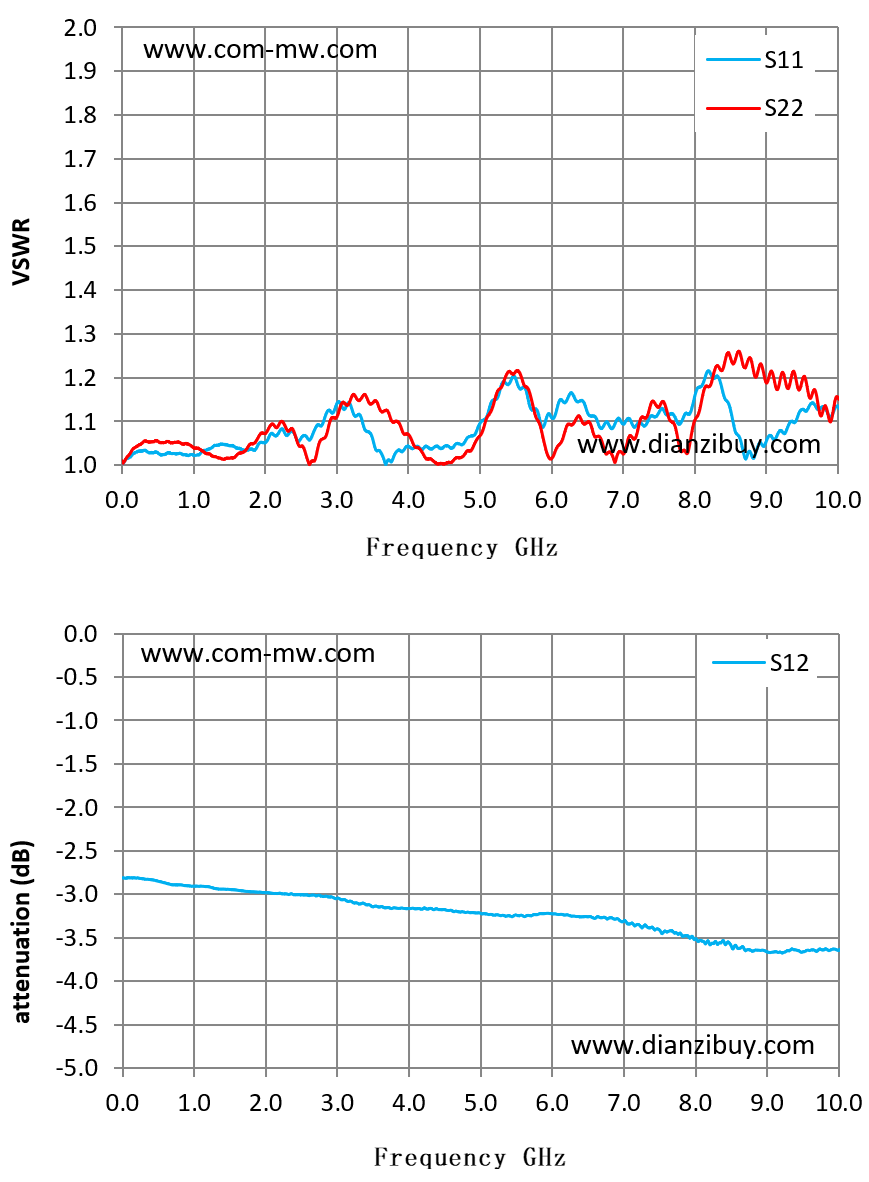

| Frequency GHz | S11 VSWR | S22 VSWR | S12 衰减 dB |
|---|---|---|---|
