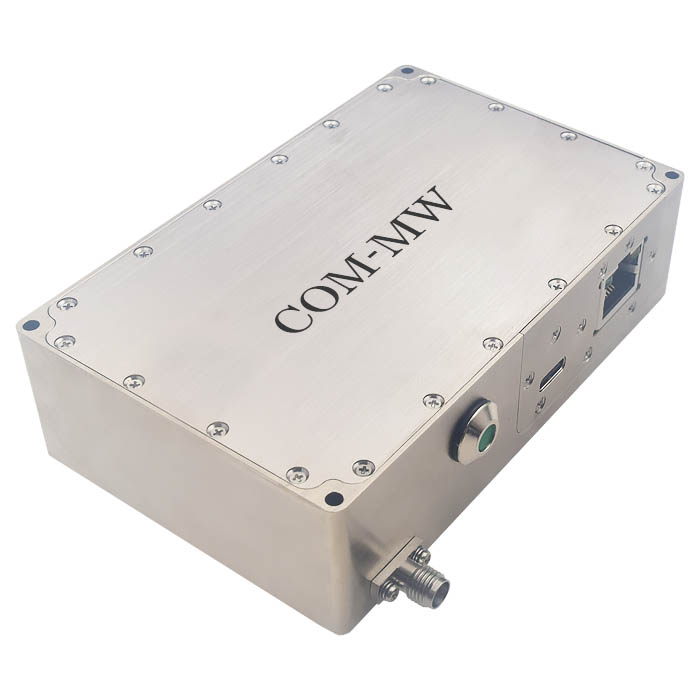

0.1~18GHz, Attenuation range0~63dB, step0.25dB, 0.3W, SMA, Substitutes RCDAT-18G-63
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.1 | ~ | 18 | GHz |
| Attenuation range | 0 | ~ | 63 | dB |
| IL | 8 | 12 | dB | |
| VSWR | 1.8 | 2.2 | ||
| Attenuation accuracy root mean square | 2 | 2.5 | dB | |
| I/O Isolation | 60 | dB | ||
| Input power (RF input port) | +25 | dBm | ||
| Input power (RF output port) | +18 | dBm | ||

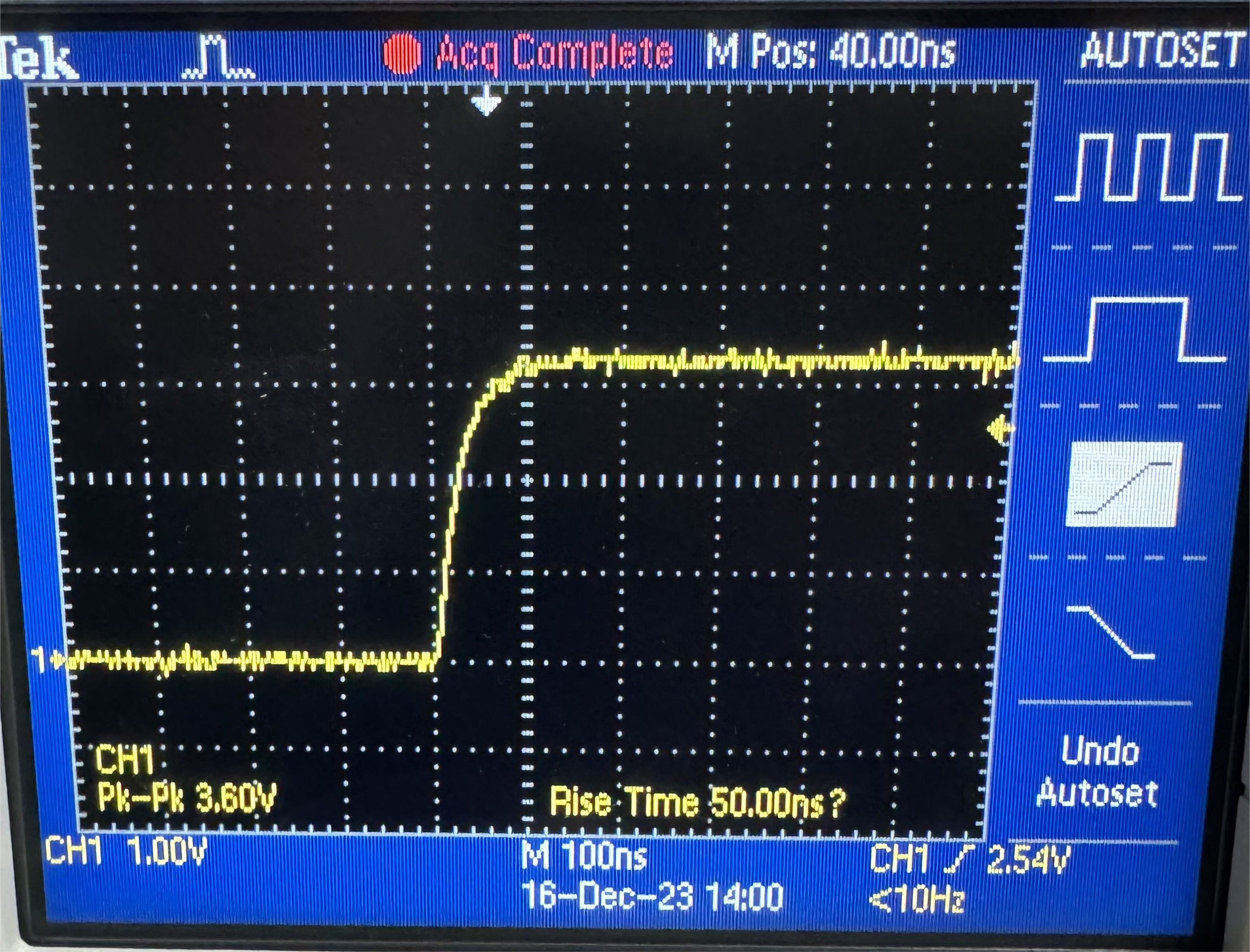

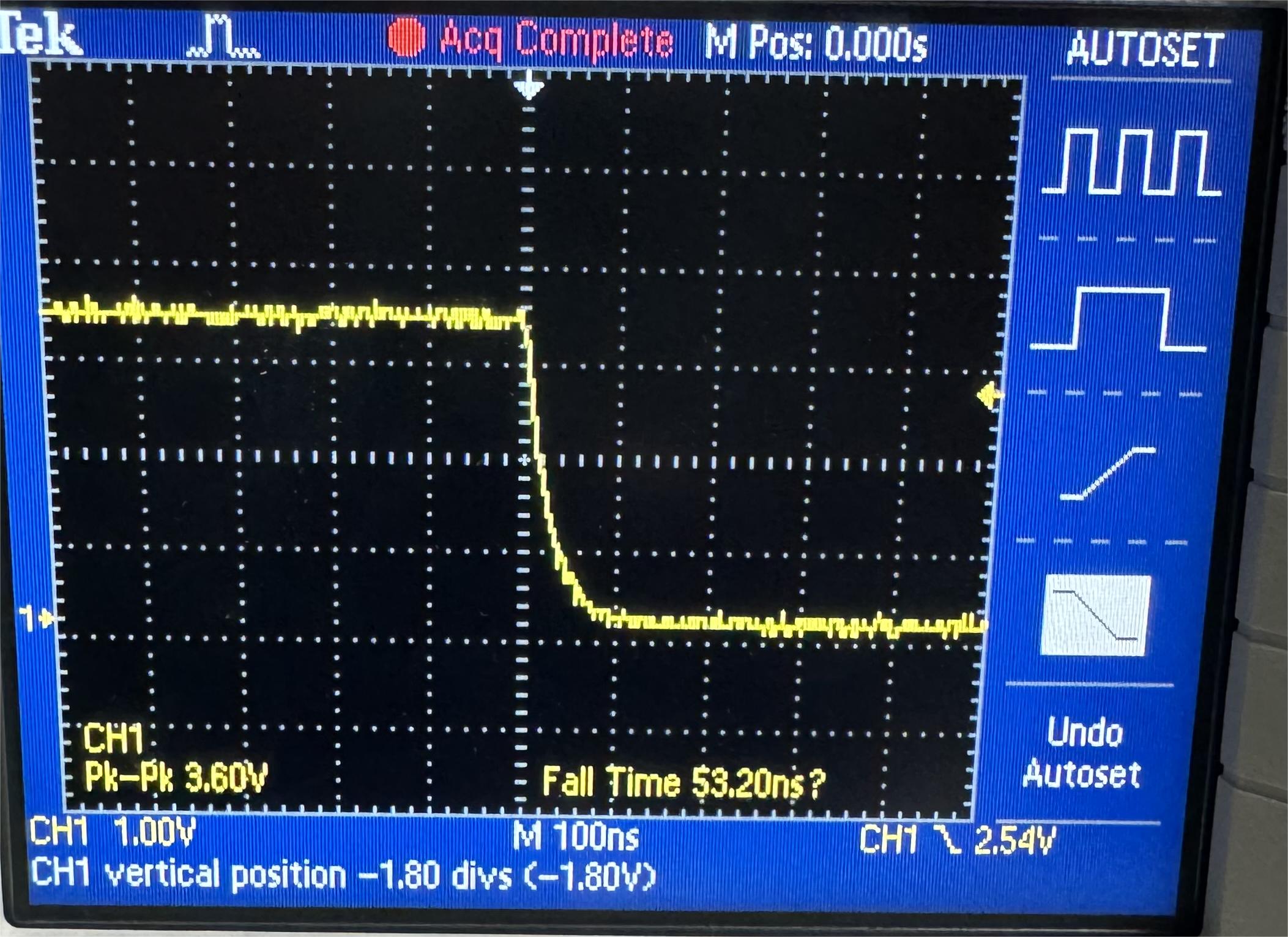

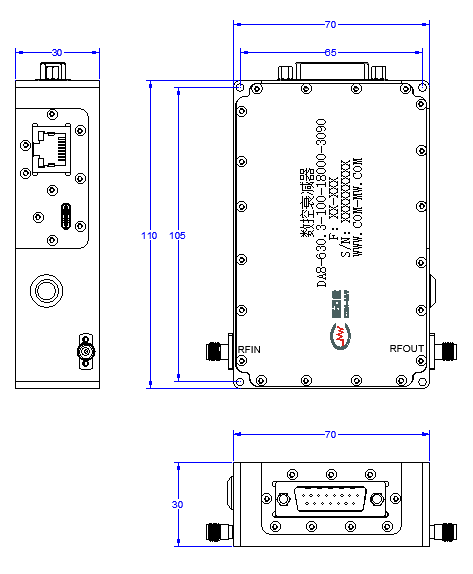

| Attenuation switching time | 100 | ns |
| step | 0.25dB |
|---|---|
| Power Capacity | 0.3W Design assurance |
| Impedance | 50Ω |
| Connector | SMA-K |
| Surface | Nickel plating |
| Working voltage | +5V |
| Working current | When using Ethernet, USB-C or RS232 to control the module, the working current is 300mA; When using TTL control, the remaining controls need to be powered off, and the working current is 50mA. |
| Operation Temp. | -0~+50℃ Design assurance |
| Storage Temp. | -30~+85℃ Design assurance |
| Control port | USB-C/TTL/RS232/ETHERNTE CONTROLUS |
| Other | / |
| Attenuation | A8 | A7 | A6 | A5 | A4 | A3 | A2 | A1 |
|---|---|---|---|---|---|---|---|---|
| 0.25 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
| 0.5 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 |
| 1 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 |
| 2 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 0 |
| 4 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 |
| 8 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 |
| 16 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 |
| 31.5 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 31.75 | 0 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 63 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 0 |
| 0 dB | AA 00 02 03 04 05 06 55 | |
|---|---|---|
| 0.25 dB | AA 01 02 03 04 05 06 55 | |
| 0.5 dB | AA 02 02 03 04 05 06 55 | |
| 1 dB | AA 04 02 03 04 05 06 55 | |
| 2 dB | AA 08 02 03 04 05 06 55 | |
| 4 dB | AA 10 02 03 04 05 06 55 | |
| 8 dB | AA 20 02 03 04 05 06 55 | |
| 16 dB | AA 40 02 03 04 05 06 55 | |
| 31.7 dB | AA 80 02 03 04 05 06 55 | |
| 63 dB | AA FF 02 03 04 05 06 55 |
| Pin | Illustrate | Voltage |
|---|---|---|
| 1 | Supply voltage | +5V |
| 2 | GND | GND |
| 3 | RS232-TX | |
| 4 | RS232-RX | |
| 5 | TTL-EN | +3.3V/0V |
| 6 | TRIGGER | +3.3V/0V |
| 7 | ATT1-0.25 | +3.3V/0V |
| 8 | ATT1-0.5 | +3.3V/0V |
| 9 | ATT1-1 | +3.3V/0V |
| 10 | ATT1-2 | +3.3V/0V |
| 11 | ATT1-4 | +3.3V/0V |
| 12 | ATT1-8 | +3.3V/0V |
| 13 | ATT1-16 | +3.3V/0V |
| 14 | ATT2-31.5 | +3.3V/0V |
| 15 | Not connected |

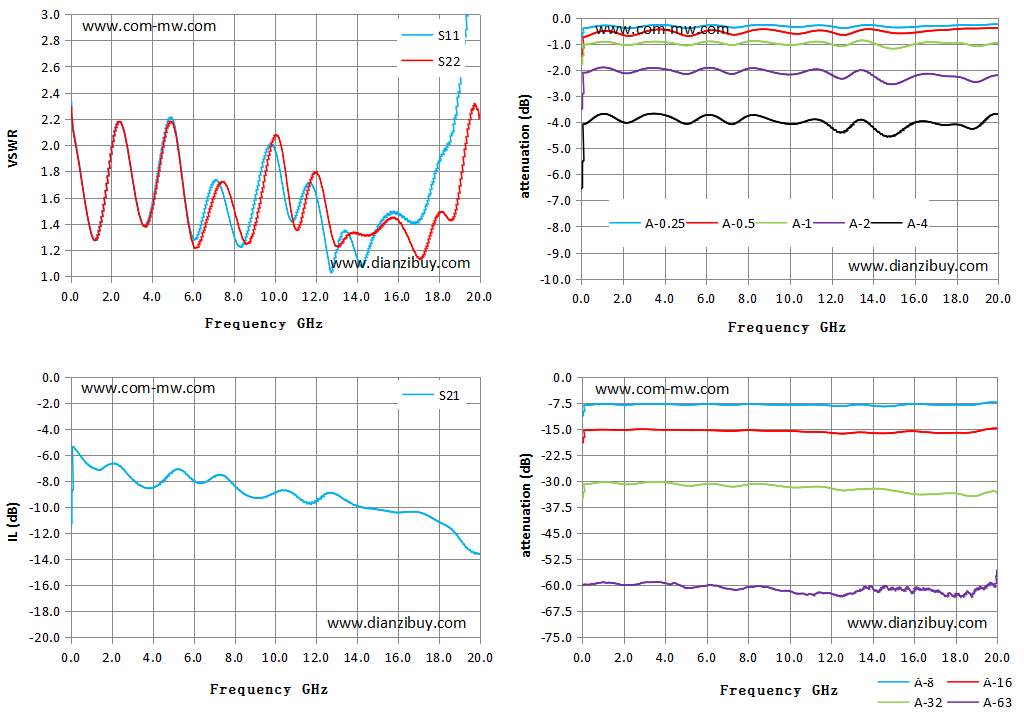

| Frequency (G) | VSWR | IL (dB) | A-0.25 dB | A-0.5 dB | A-1 dB | A-2 dB | A-4 dB | A-8 dB | A-16 dB | A-63 dB |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.1 | 2.17 | -5.67 | -0.41 | -0.76 | -1.04 | -2.13 | -4.17 | -8.2 | -15.4 | -59.4 |
| 2.8 | 1.9 | -7.61 | -0.35 | -0.59 | -0.97 | -1.99 | -3.8 | -7.78 | -15.05 | -59.34 |
| 4.2 | 1.79 | -8.31 | -0.3 | -0.51 | -0.97 | -2.01 | -3.81 | -7.87 | -15.2 | -59.74 |
| 8.5 | 1.29 | -9.08 | -0.27 | -0.45 | -0.9 | -1.97 | -3.77 | -7.87 | -15.45 | -60.27 |
| 10 | 1.96 | -8.86 | -0.35 | -0.6 | -1.04 | -2.18 | -4.07 | -8.03 | -15.54 | -61.76 |
| 12 | 1.08 | -8.95 | -0.38 | -0.63 | -1.02 | -2.23 | -4.23 | -8.22 | -16.25 | -62.41 |
| 14 | 1.48 | -10.07 | -0.31 | -0.49 | -1.06 | -2.37 | -4.4 | -8.44 | -16.25 | -61.93 |
| 15 | 1.48 | -10.38 | -0.37 | -0.6 | -1.07 | -2.34 | -4.15 | -7.88 | -15.69 | -60.91 |
| 17 | 1.44 | -10.46 | -0.48 | -0.48 | -0.95 | -2.2 | -4.09 | -8.04 | -16.12 | -61.85 |
| 18 | 1.87 | -11.15 | -0.41 | -0.41 | -0.95 | -2.25 | -4.08 | -7.99 | -16.04 | -62.42 |
1、当TRIGGER=0时，网口，type-c，232无论发送什么命令，FPGA都不响应，当TRIGGER=1时，FPGA才会响应，且TRIGGER再次变为0是，FPGA的状态保持为此次状态，直到TRIGGER=1时，接收到下一状态；
2. When using TTL direct control, it is necessary to set TTL-EN=1 to turn off the power supply of Ethernet ports, 232, and type-c. When using Ethernet port, 232, and type-c control, TTL-EN=0 and all ATT pins on the 15 core connector need to be suspended;
3. Type-C control software available
1. Clean the surface of the product, do not soak the product in a cleaning solution; 2. This product belongs to electrostatic sensitive devices. Pay attention to anti-static measures during installation or storage; 3. If the overall temperature is greater than 125 ℃, please consult with us before placing an order.
