FrequencyDC~2000MHz, Attenuation50dB, Power Capacity1000W, Impedance50Ω, L29-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

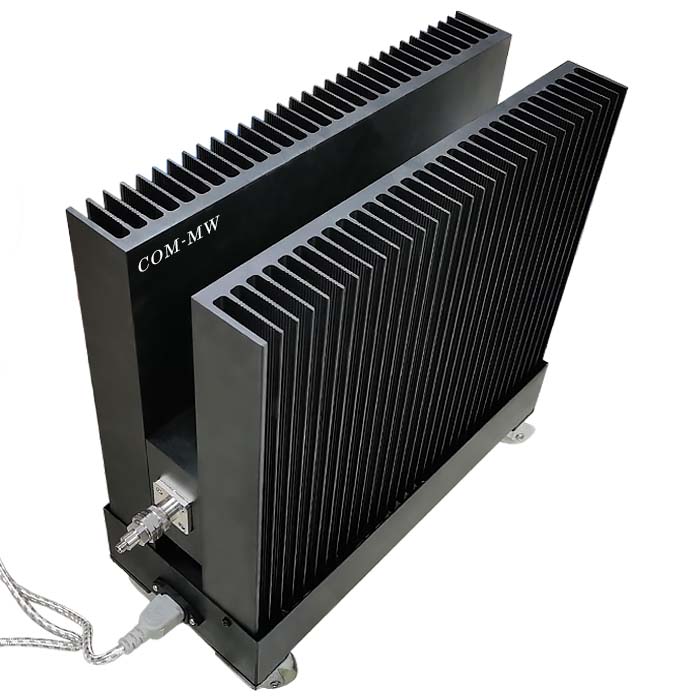

High power, with fan cooling.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 2000 | MHz |
| Attenuation | 48 | 50 | 52 | dB |
| VSWR | 1.25 |
| Power Capacity | 1000W Design assurance |
| Impedance | 50Ω |
| Connector | L29-KK |
| Connector material | Shell copper nickel plating |
| Weight | About 21 kg |
| Surface | Black |
| Product shell material | Aluminum |
| Operation Temp. | -40~+85℃ Design assurance |
| Other | Fan power supply voltage: 220V, equipped with universal wheels. |
1, When using an attenuator, sufficient heat dissipation space should be considered, Turn on the fan and do not install it next to equipment with high heat output.
2. Small power attenuators do not have input and output directions, nor do they indicate directions. When high-power attenuators have input and output port markings, they must be connected to the equipment in the specified direction, otherwise the attenuator may burn out.

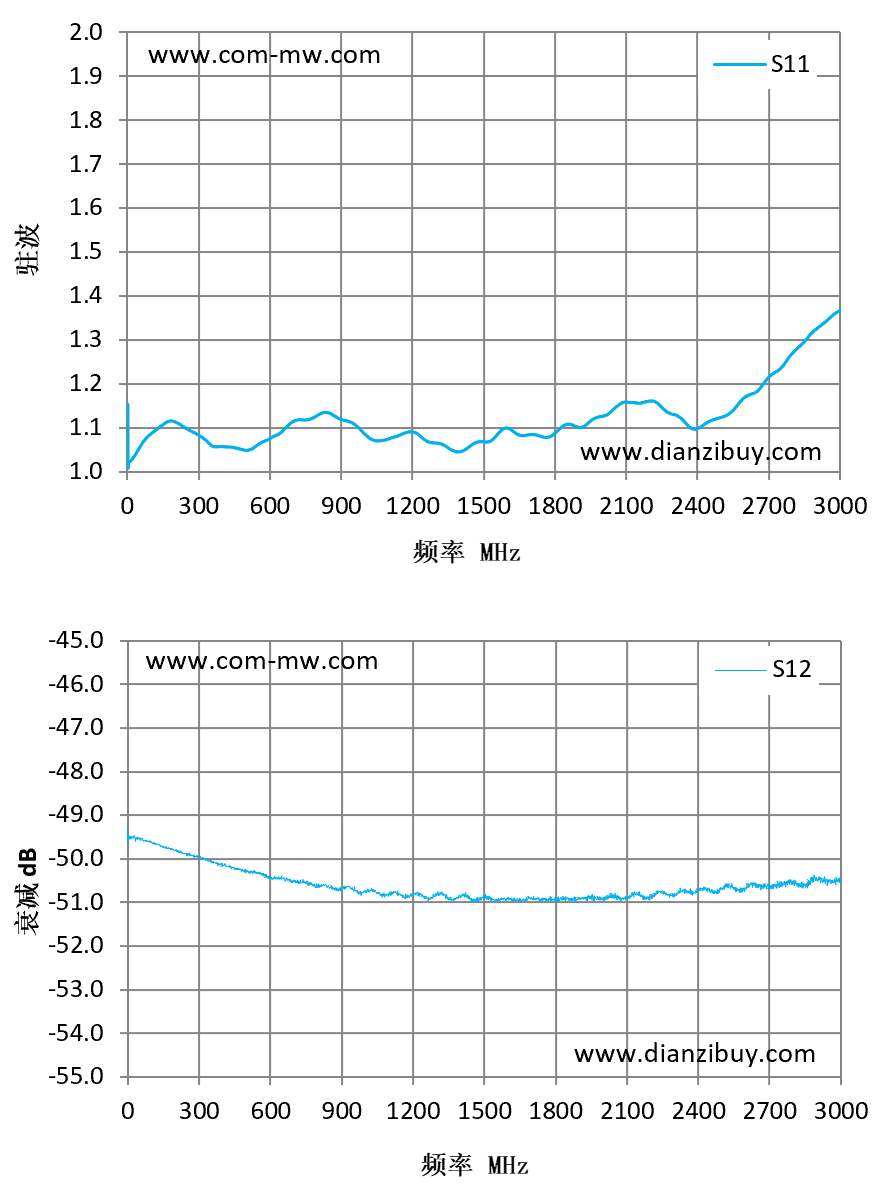

| Frequency(MHz) | S11 VSWR | S12 Attenuation |
|---|---|---|
| 0.01 | 1.02 | -49.24 |
| 214 | 1.11 | -49.82 |
| 429 | 1.06 | -50.19 |
| 643 | 1.09 | -50.46 |
| 857 | 1.13 | -50.66 |
| 1071 | 1.07 | -50.83 |
| 1286 | 1.07 | -50.86 |
| 1500 | 1.07 | -50.89 |
| 1714 | 1.08 | -50.94 |
| 1929 | 1.11 | -50.9 |
| 2143 | 1.16 | -50.78 |
| 2357 | 1.11 | -50.75 |
| 2571 | 1.15 | -50.73 |
| 2786 | 1.26 | -50.55 |
| 3000 | 1.37 | -50.51 |
