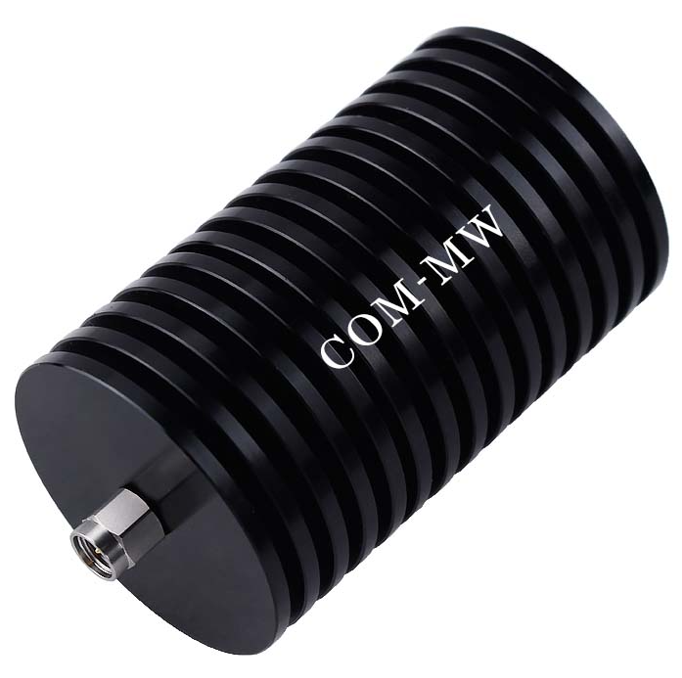

Frequency0~40GHz, Attenuation30dB, Power Capacity30W, , 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0 | ~ | 40 | GHz |
| Attenuation | 28.5 | 30 | 31.5 | dB |
| VSWR | 1.4 |
| Power Capacity | 30W |
| Peak power | 200W设计保证，占空比10%，脉冲宽度5uS |
| Impedance | 50Ω |
| Connector | 2.92-JK |
| Connector material | Stainless steel |
| Surface | Black anodizing |
| Product shell material | Aluminium |
| Operation Temp. | -55~+125℃ |
| Other | When used at full power, additional air cooling is required. |

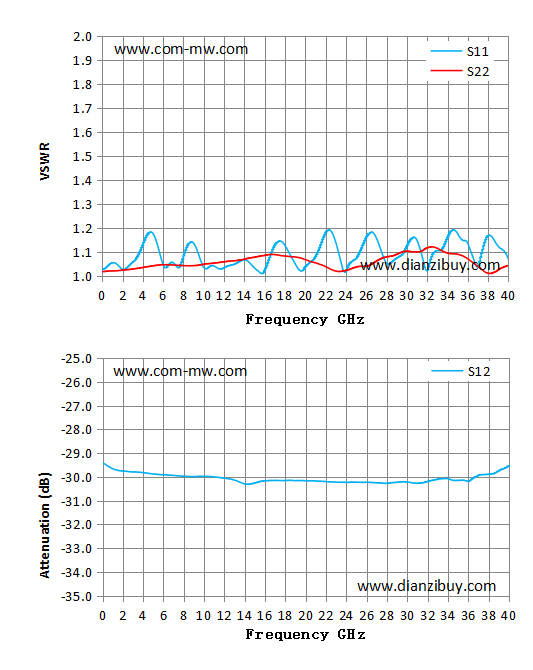

| Frequency GHz | S11 VSWR | S22 VSWR | S12 attenuation dB |
|---|---|---|---|
| 0.01 | 1.02 | 1.02 | -29.44 |
| 3.05 | 1.06 | 1.03 | -29.79 |
| 6.08 | 1.04 | 1.05 | -29.91 |
| 9.12 | 1.13 | 1.14 | -29.99 |
| 12.15 | 1.04 | 1.06 | -30.06 |
| 15.19 | 1.03 | 1.08 | -30.23 |
| 18.22 | 1.11 | 1.08 | -30.15 |
| 21.26 | 1.10 | 1.05 | -30.18 |
| 24.29 | 1.05 | 1.03 | -30.23 |
| 27.33 | 1.12 | 1.07 | -30.26 |
| 30.36 | 1.15 | 1.10 | -30.24 |
| 33.40 | 1.11 | 1.11 | -30.07 |
| 36.43 | 1.09 | 1.06 | -30.05 |
| 39.47 | 1.10 | 1.04 | -29.64 |
| 40.01 | 1.07 | 1.04 | -29.53 |
When installing attenuators, sufficient heat dissipation space should be considered to avoid being installed next to equipment with high heat output.
Small power attenuators do not have input and output directions, nor do they indicate directions. When high-power attenuators have input and output port markings, connect devices in the specified direction.
