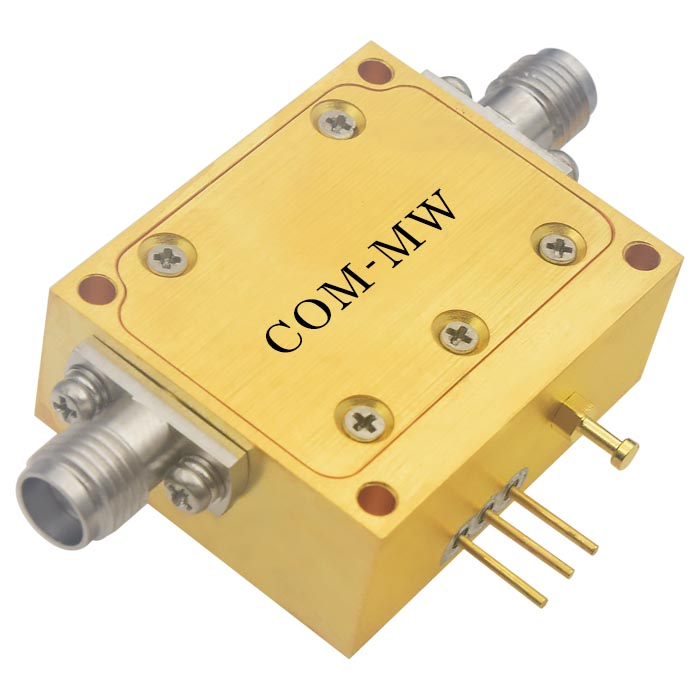

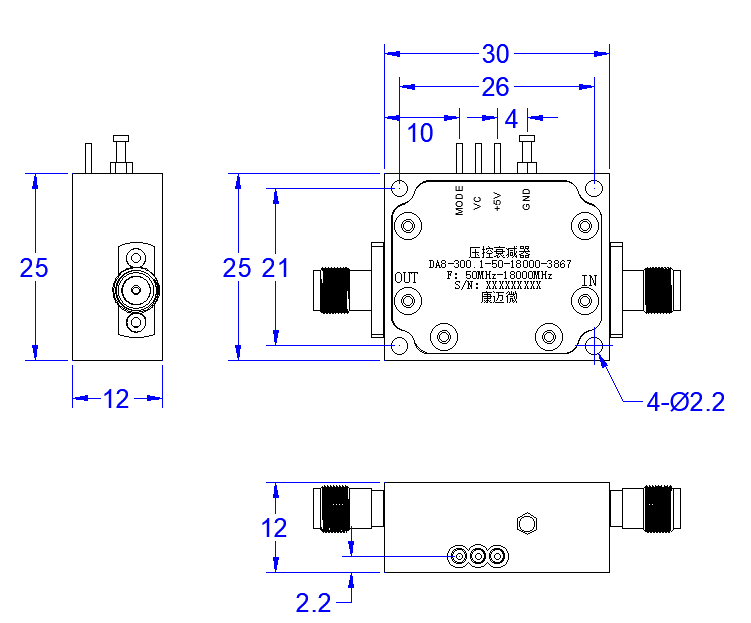

50~18000MHz, Attenuation range8~36dB, 0.1W, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 50 | ~ | 18000 | MHz |
| Attenuation range | 8 | ~ | 36 | dB |
| VSWR | 1.8 | 2.1 | ||
| Control Voltage Range | 0 | ~ | 2.5 | V |
| Power Capacity | 0.1W Design assurance |
| Impedance | 50Ω |
| Response time | 2us |
| Connector | SMA |
| Connector material | Stainless steel |
| Surface | Gold-plating |
| Working voltage | +5V |
| Working current | 10mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -65~+105℃ Design assurance |
| Other | 当MODE=0V时，控制电压VC=+2.5V时衰减量最小，控制电压VC=+0V时，衰减量最大，当MODE=+3.3V时，控制电压VC=+2.5V时衰减量最大，控制电压VC=0V时，衰减量最小 |

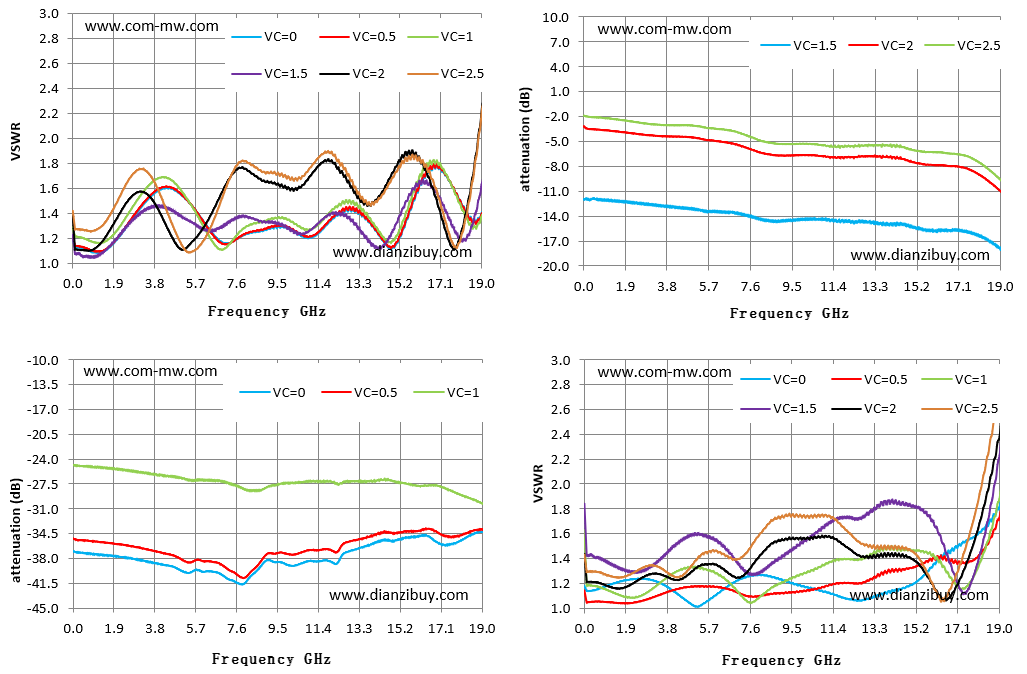

| Frequency GHz | VC=0 驻波 | VC=0 衰减dB | VC=0.5 衰减dB | VC=1 衰减dB | VC=1.5 衰减dB | VC=2 衰减dB | VC=2.5 衰减dB |
|---|---|---|---|---|---|---|---|
| 0.01 | 1.21 | -36.9 | -35.2 | -24.8 | -12.1 | -3.17 | -1.89 |
| 1.36 | 1.09 | -37.5 | -35.7 | -25.2 | -12.2 | -3.77 | -2.31 |
| 4.07 | 1.59 | -38.8 | -37.1 | -26.2 | -12.8 | -4.43 | -3.06 |
| 6.79 | 1.19 | -40.1 | -38.7 | -27.1 | -13.5 | -5.27 | -3.75 |
| 8.14 | 1.24 | -40.9 | -40.3 | -28.4 | -14.4 | -6.41 | -4.98 |
| 10.86 | 1.21 | -38.4 | -36.9 | -27.1 | -14.3 | -6.77 | -5.45 |
| 12.21 | 1.38 | -38.8 | -37.1 | -27.4 | -14.6 | -6.89 | -5.56 |
| 14.93 | 1.13 | -35.5 | -34.4 | -27.1 | -15.2 | -7.42 | -5.96 |
| 16.29 | 1.69 | -34.7 | -33.9 | -27.7 | -15.7 | -7.87 | -6.33 |
| 17.64 | 1.61 | -35.9 | -34.9 | -28.5 | -16.1 | -8.45 | -6.95 |
| 19 | 1.4 | -34.2 | -33.9 | -30.2 | -17.9 | -10.9 | -9.6 |
1. Clean the surface of the product, do not soak the product in a cleaning solution; 2. This product belongs to electrostatic sensitive devices. Pay attention to anti-static measures during installation or storage; 3. If the overall temperature is greater than 125 ℃, please consult with us before placing an order.
