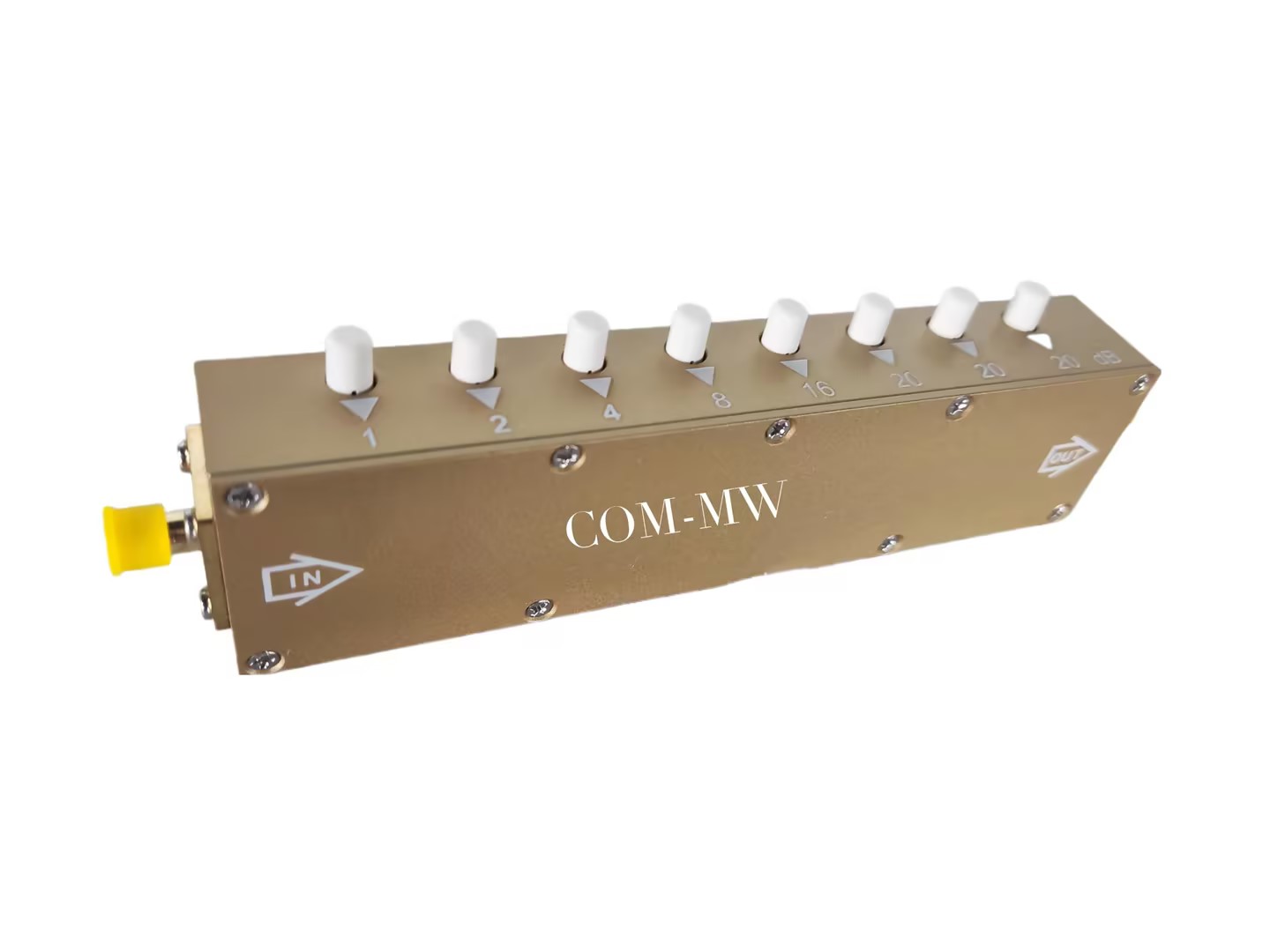

FrequencyDC~4GHz, Attenuation range-dB, ILdB, 5W, 50Ω, 1dB, SMA-F
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 4 | GHz |
| Attenuation range | 0 | - | 90 | dB |

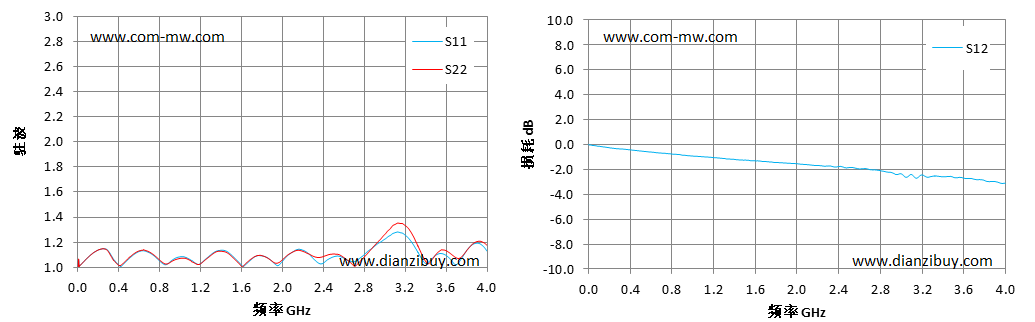

| IL | 4.3 | dB | ||
| VSWR | 1.4 |
| Power Capacity | 5W Design assurance |
|---|---|
| Impedance | 50Ω |
| Attenuation step | 1dB |
| Connector | SMA-F |
| Interface material, shell, 304 stainless steel | |
| Single key attenuation accuracy | ±1.2dB Max |

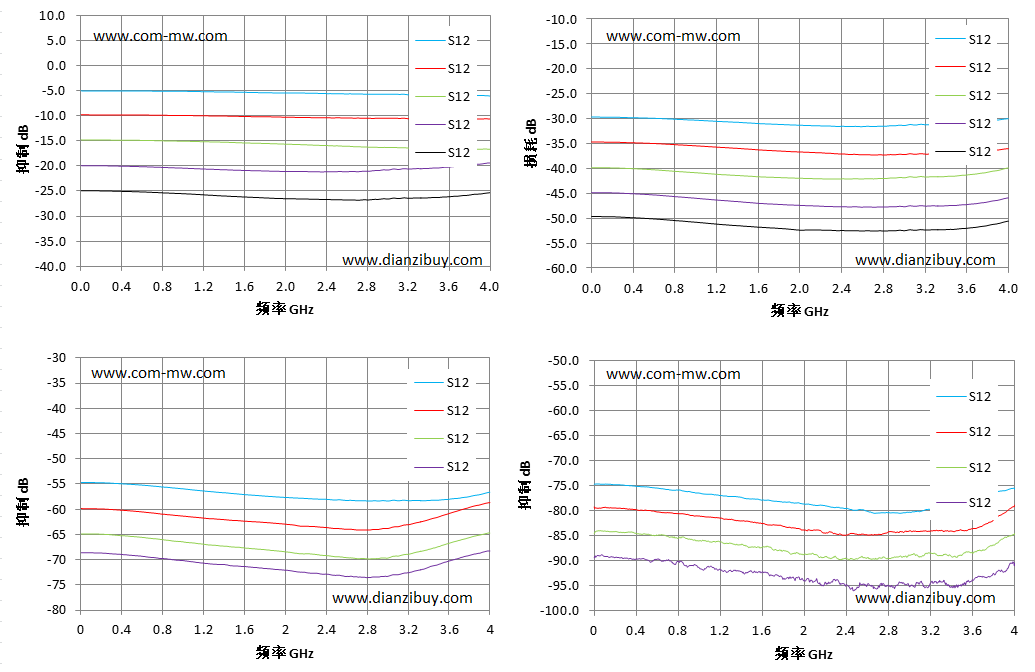

| Multi key attenuation accuracy | ±2.0dB Max（1-30dB）；±5.0dB Max（31-70dB）；±6dB Max（71-90dB） |
| Operation Temp. | -10~+50℃ Design assurance |
1、安装衰减器时要考虑足够的散热空间，避免安装在发热量大的设备旁边，否则功率容量会降低；2、小功率衰减器没有输入输出方向，也不会标识方向，当大功率衰减器有输入输出端口标识时，一定要按指定的方向连接设备，否则衰减器可能会烧毁。3、开关寿命5000次，以15-20次/秒速度运行5000次4、使用时轻按轻放，以免开关产生松动、弯曲等机械变形
