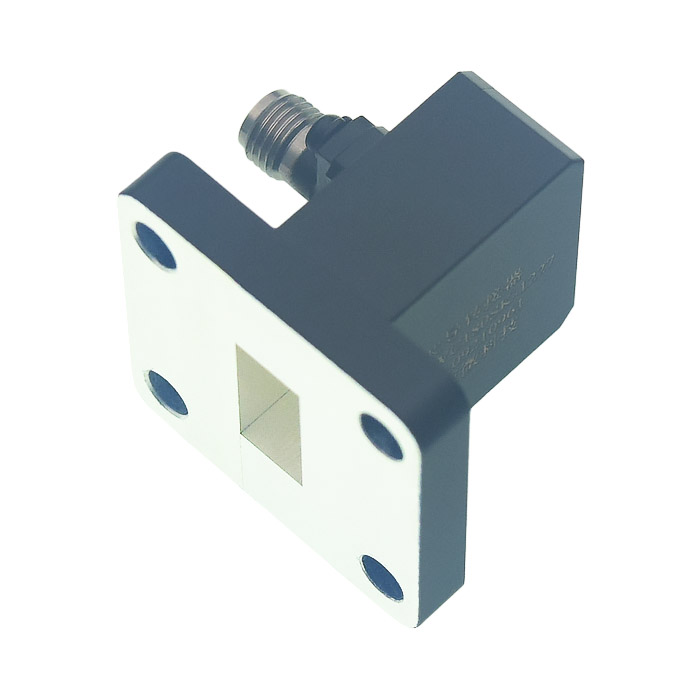

Frequency14500~22000MHz, Power Capacity50W, Rect waveguider, BJ180, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Low loss, wide temperature range.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 14500 | ~ | 22000 | MHz |
| IL | 0.2 | dB | ||
| VSWR | 1.2 | dB |
| Power Capacity | 50W |
| Waveguide model | Rect waveguider |
| Connector 1 | BJ180 |
| Connector 2 | SMA-K |
| Flange model | FBP |
| Surface | Black baking paint |
| Product shell material | Aluminium |
| Operation Temp. | -55~+125℃ Design assurance |

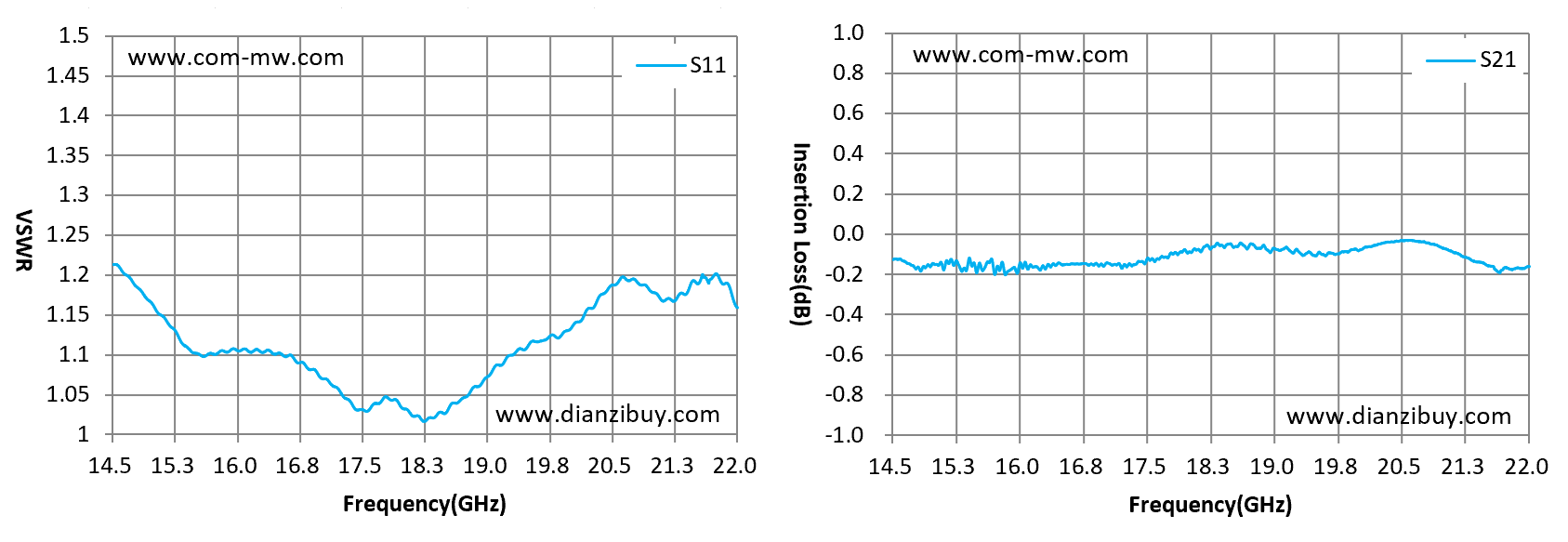

| 1 | 14.5 | 1.22 | -0.17 |
|---|---|---|---|
| 2 | 15.3 | 1.15 | -0.18 |
| 3 | 16.1 | 1.1 | -0.19 |
| 4 | 16.9 | 1.08 | -0.14 |
| 5 | 17.7 | 1.05 | -0.16 |
| 6 | 18.5 | 1.04 | -0.11 |
| 7 | 19.3 | 1.08 | -0.08 |
| 8 | 20.1 | 1.12 | -0.11 |
| 9 | 20.9 | 1.15 | -0.05 |
| 10 | 21.7 | 1.11 | -0.13 |
| 11 | 22 | 1.16 | -0.18 |
