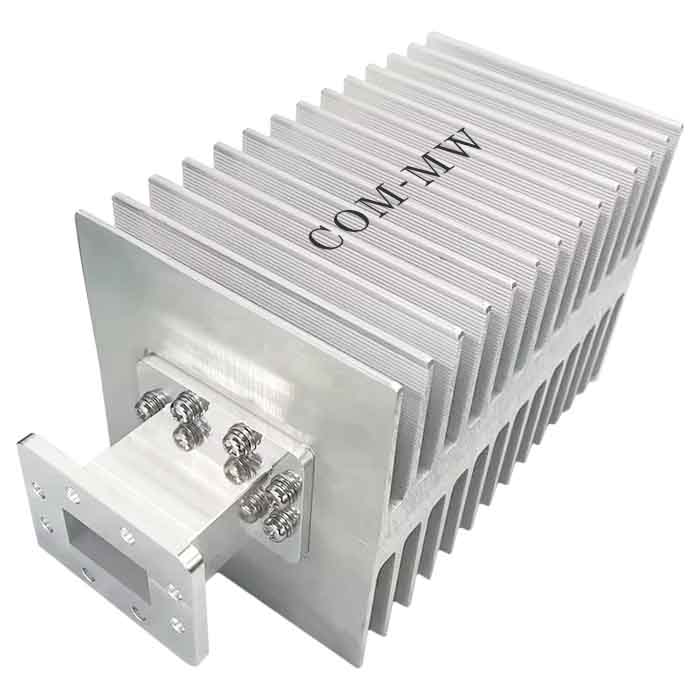

Frequency4.64~7.05GHz, Power Capacity300W, Waveguide, BJ58
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
High power, Low VSWR.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 4.64 | ~ | 7.05 | GHz |
| VSWR | 1.2 |
| Power Capacity | 300W（设计保证） |
| Connector | Waveguide |
| Waveguide port | BJ58 |
| Surface | Conductive oxidation |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |

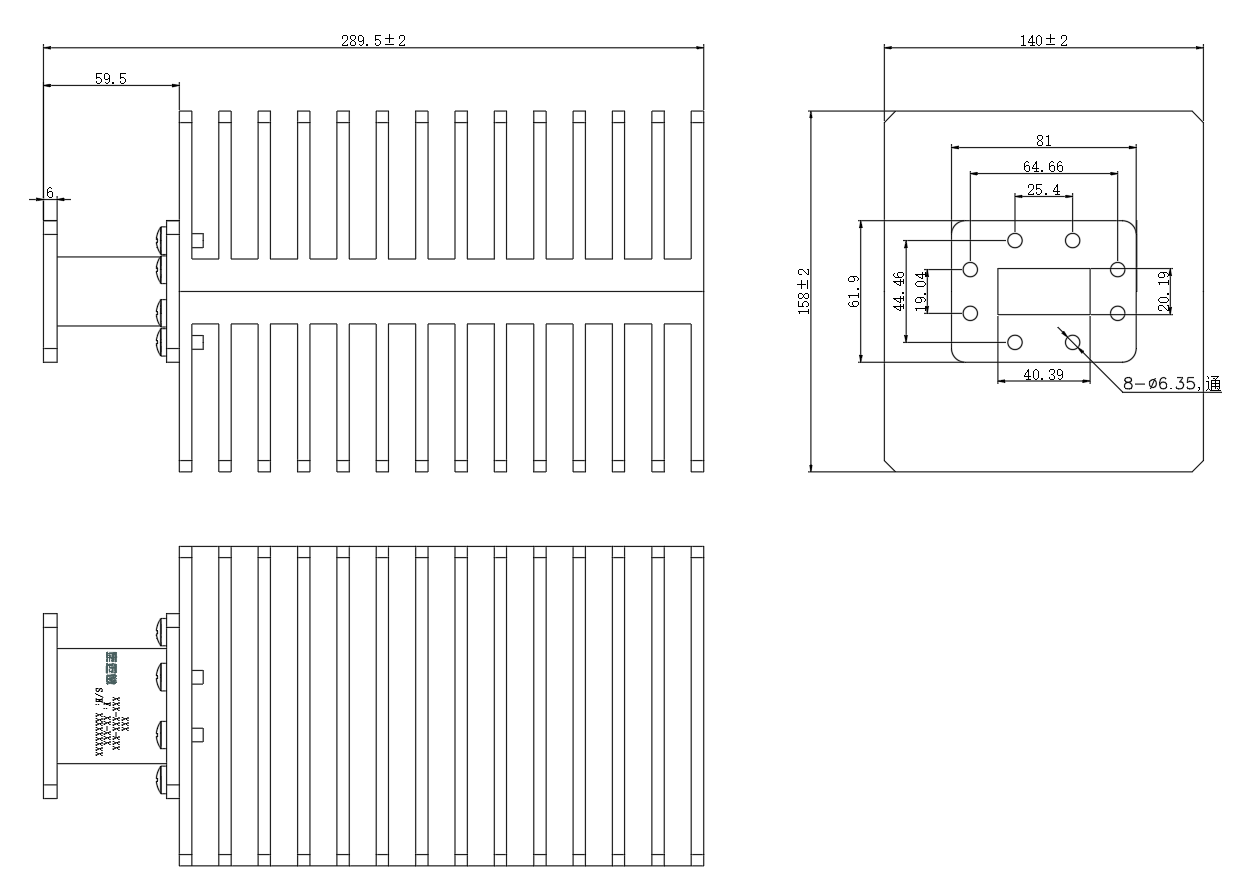

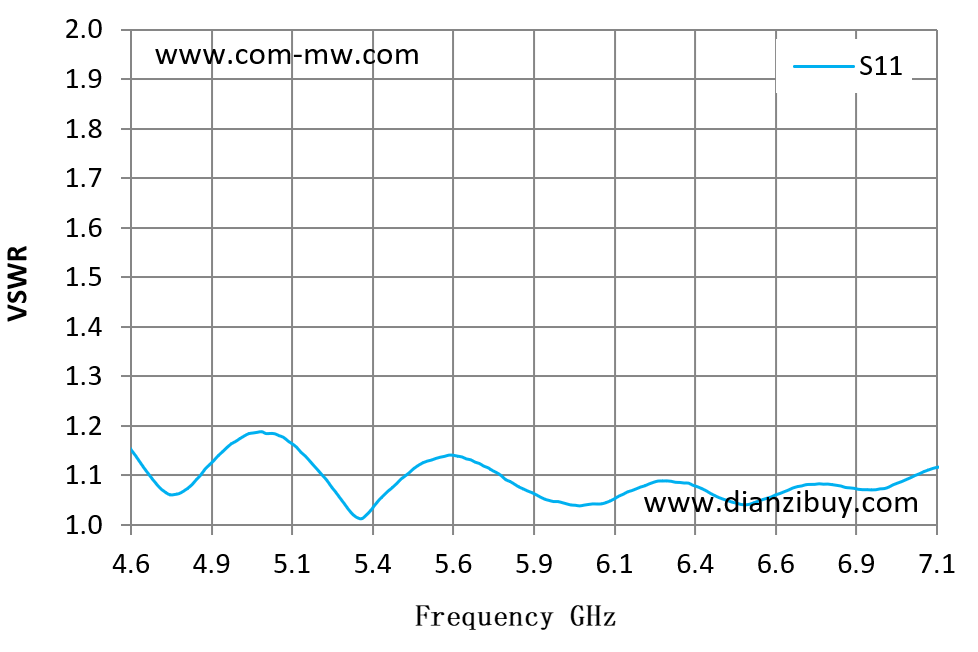

| No. | Frequency GHz | S11 VSWR |
|---|---|---|
| 1 | 4.6 | 1.17 |
| 2 | 4.78 | 1.07 |
| 3 | 4.96 | 1.18 |
| 4 | 5.14 | 1.15 |
| 5 | 5.31 | 1.01 |
| 6 | 5.49 | 1.11 |
| 7 | 5.67 | 1.13 |
| 8 | 5.85 | 1.07 |
| 9 | 6.03 | 1.04 |
| 10 | 6.21 | 1.08 |
| 11 | 6.39 | 1.07 |
| 12 | 6.56 | 1.05 |
| 13 | 6.74 | 1.08 |
| 14 | 6.92 | 1.07 |
| 15 | 7.1 | 1.12 |
Heat dissipation space is needed for installing the load, far away from the equipment with large heat output
