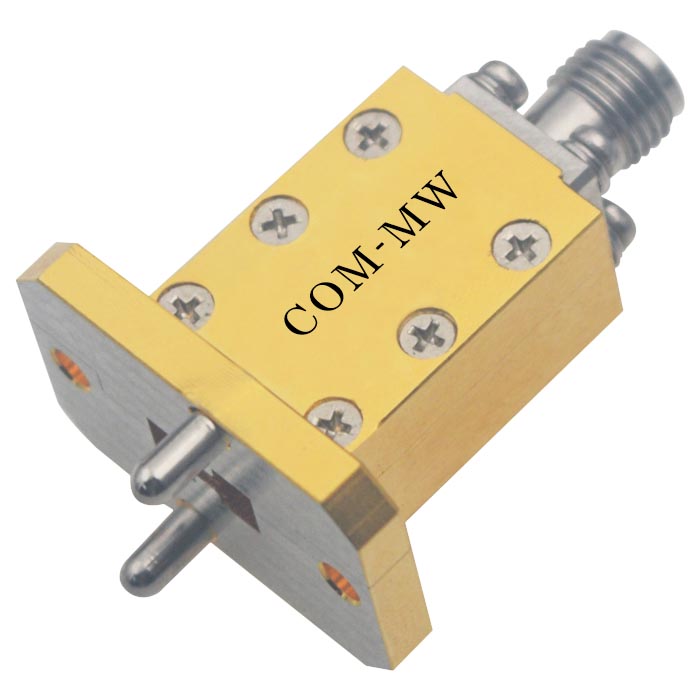

Frequency18~40GHz, Power Capacity50W, Ridged waveguide, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 18 | ~ | 40 | GHz |
| IL | 0.5 | dB | ||
| VSWR | 1.5 |
| Power Capacity | 50W Design assurance |
| Waveguide model | Ridged waveguide |
| Connector 2 | 2.92-F |

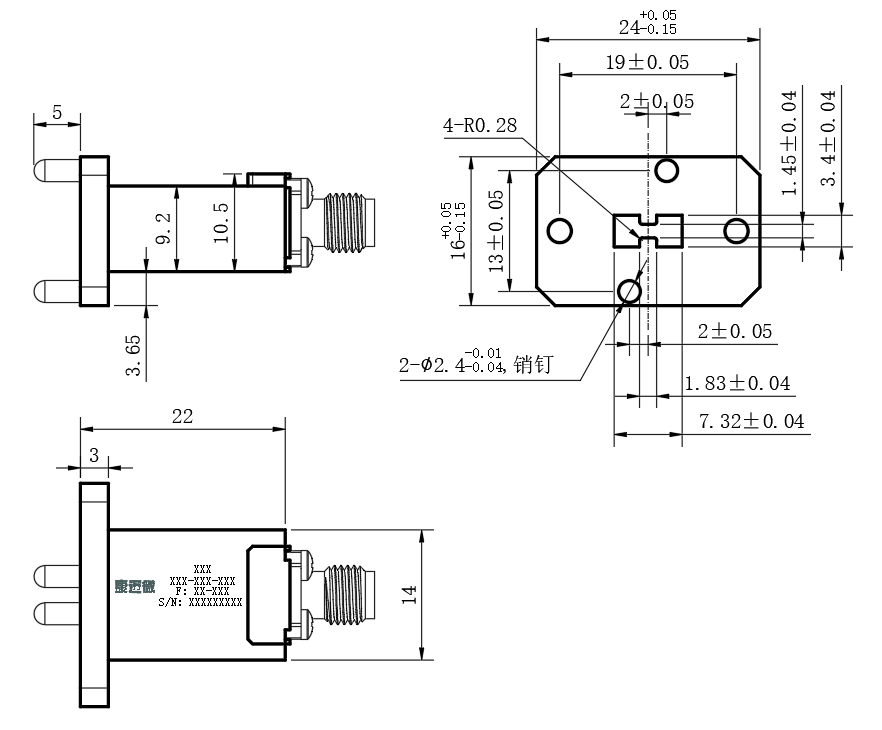

| Ridge waveguide model | WRD180C24 |
| Surface | Gold plated (flange end face not plated) |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |

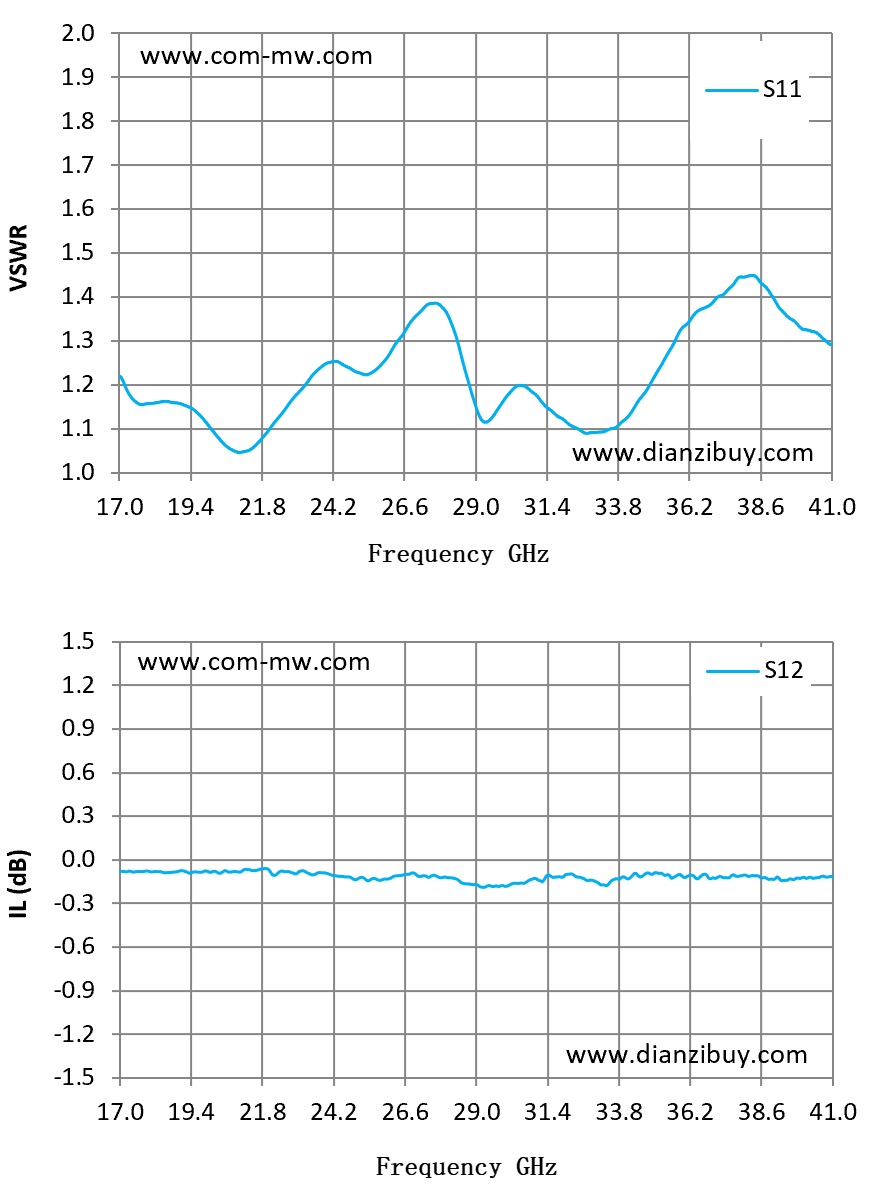

| Frequency GHz | S11 VSWR | S12 IL (dB) |
|---|---|---|
| 17 | 1.22 | -0.08 |
| 18.71 | 1.16 | -0.12 |
| 20.43 | 1.07 | -0.13 |
| 22.14 | 1.11 | -0.14 |
| 23.86 | 1.24 | -0.15 |
| 25.57 | 1.23 | -0.17 |
| 27.29 | 1.38 | -0.19 |
| 29 | 1.15 | -0.24 |
| 30.71 | 1.19 | -0.16 |
| 32.43 | 1.1 | -0.23 |
| 34.14 | 1.13 | -0.19 |
| 35.86 | 1.32 | -0.21 |
| 37.57 | 1.42 | -0.18 |
| 39.29 | 1.37 | -0.16 |
| 41 | 1.29 | -0.14 |
