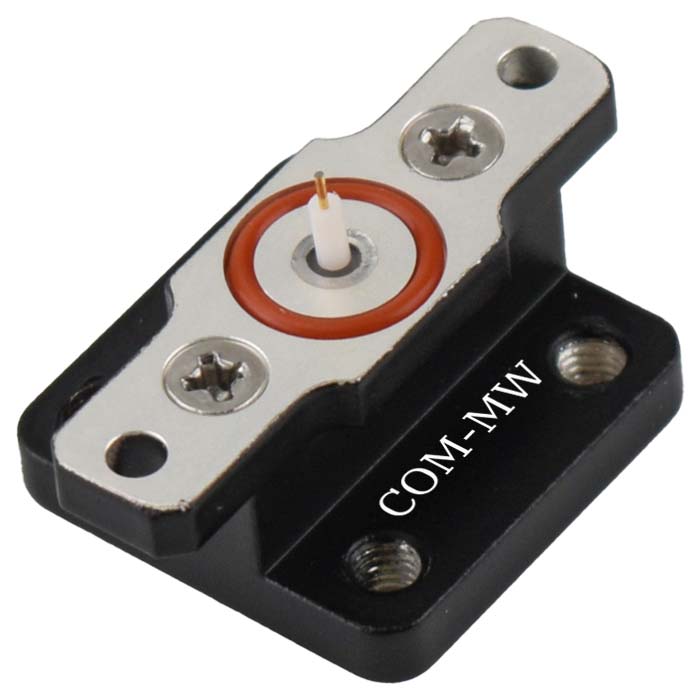

Frequency 26.3~40GHz, Power Capacity 20W, Rect waveguider, FBM320, Pin 0.38mm
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, low loss.
| Parameters | Min | Typical | Max | Units |
| Frequency | 26.3 | ~ | 40 | GHz |
| IL | 0.35 | dB | ||
| VSWR | 1.4 | dB |
| Power Capacity | 20W |
| Waveguide model | Rect waveguider |
| Connector 1 | FBM320 |
| Connector 2 | Pin 0.38mm |
| Surface | Black baking paint (not sprayed on flange end face and glass bead end face) |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |

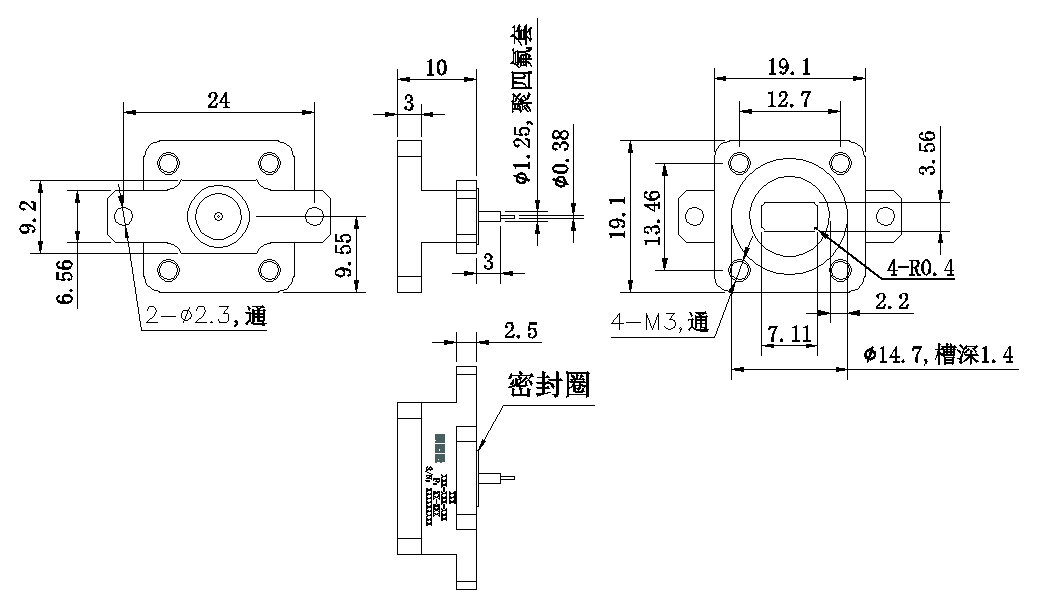

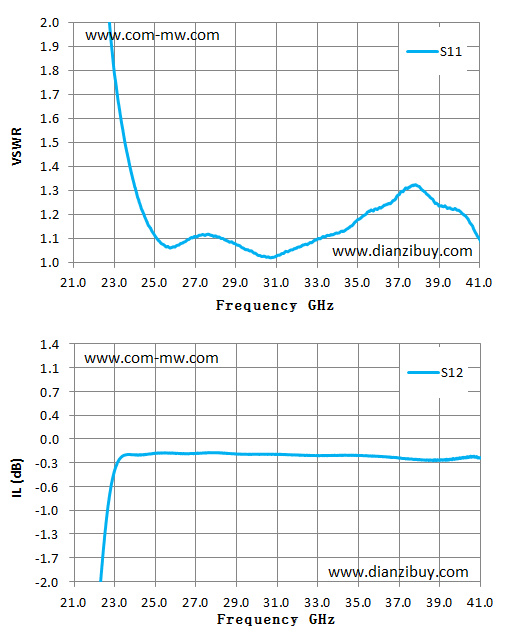

| Frequency GHz | S11 VSWR | S12 IL (dB) |
