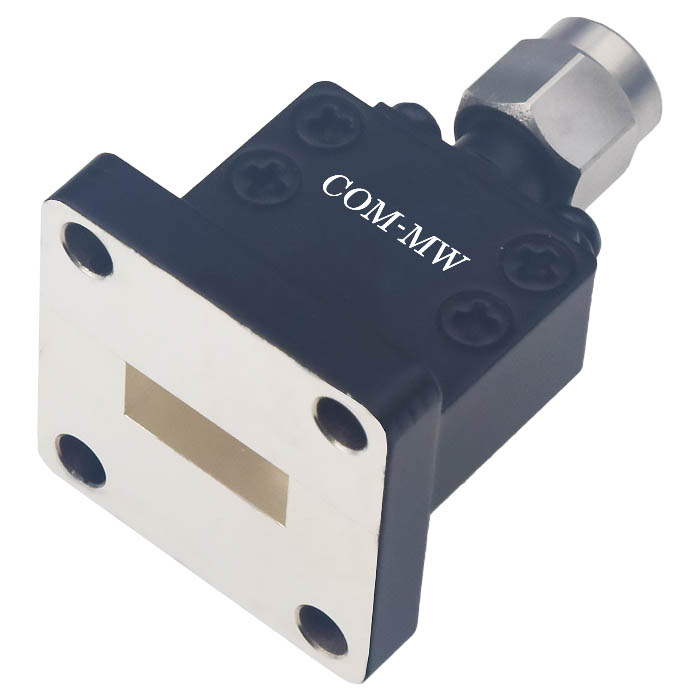

Frequency26.3~40GHz, Power Capacity25W, Rect waveguider, BJ320 or WR28, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 26.3 | ~ | 40 | GHz |
| IL | 0.2 | dB | ||
| VSWR | 1.2 | 1.3 |
| Power Capacity | 25W Design assurance |
| Waveguide model | Rect waveguider |
| Connector 1 | BJ320 or WR28 |
| Connector 2 | 2.92-M or J |
| Flange model | FBP320 |
| Surface | Black baking paint |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |
