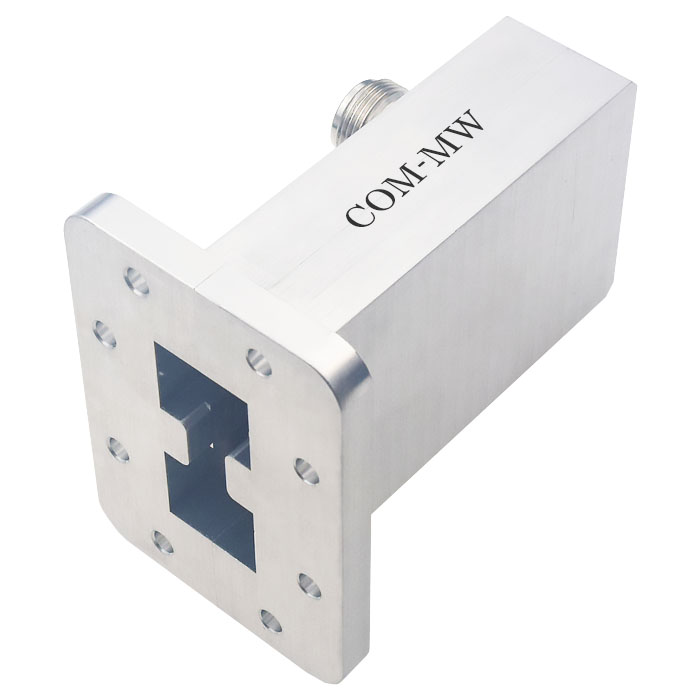

Frequency2.6~7.8GHz, Power Capacity1000W, Ridged waveguide, WRD700D26, L29
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 2.6 | ~ | 7.8 | GHz |
| IL | 0.2 | dB | ||
| VSWR | 1.35 |
| Power Capacity | 1000W Design assurance |
| Waveguide model | Ridged waveguide |
| Connector 1 | WRD700D26 |
| Connector 2 | L29-F |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |
