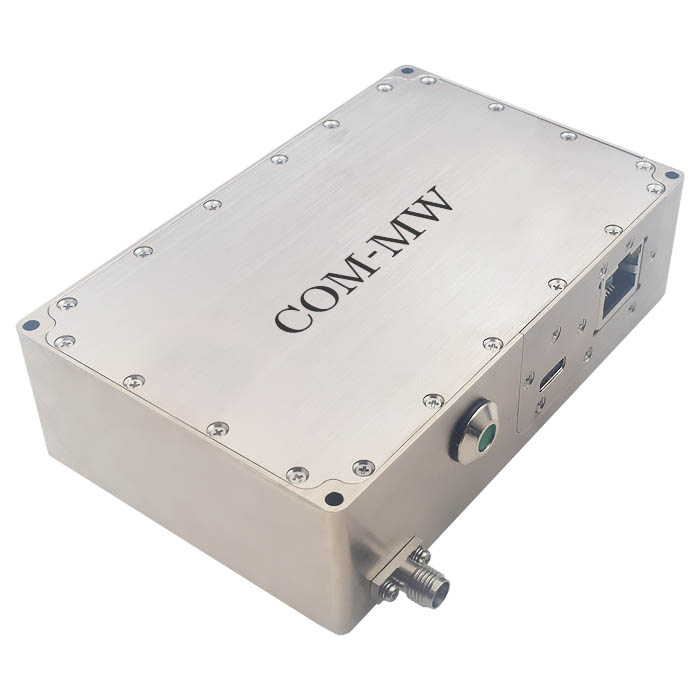

50~8000MHz, Attenuation range0~63dB, step0.25dB, 0.2W, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 50 | ~ | 8000 | MHz |
| Attenuation range | 0 | ~ | 63 | dB |
| IL | 9 | dB | ||
| VSWR | 1.5 | 1.9 | ||
| Attenuation accuracy root mean square | 2 | dB | ||
| Attenuation switching time | 200 | ns | ||
| 输入输出隔离（最大衰减加上损耗） | 70 | dB |
| step | 0.25dB |
| Power Capacity | 0.2W Design assurance |
| Impedance | 50Ω |
| Connector | SMA-K |
| Surface | Nickel plating |
| Working voltage | +5V, USB-C interface power supply, equipped with power adapter |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -30~+85℃ Design assurance |
| Control port | USB-C/RJ-45 |
| Other | 可提供type-c和网口的控制软件和使用说明 |

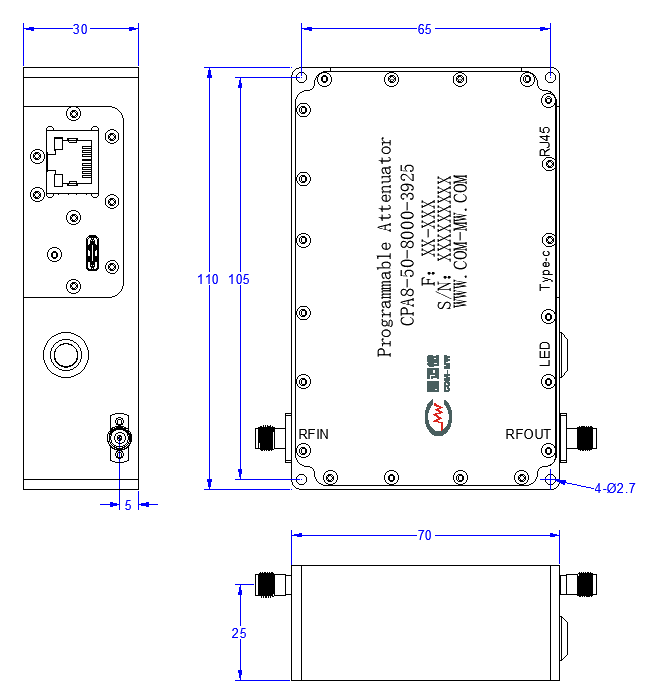

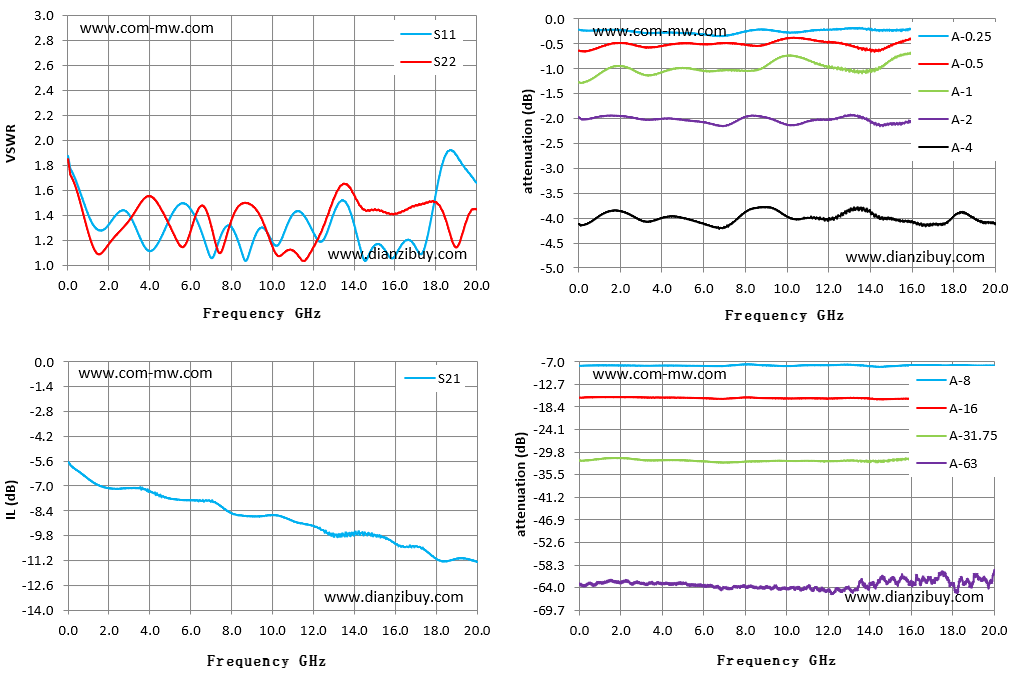

| Frequency GHz | S11 VSWR | S21 IL dB | A-0.25 dB | A-0.5 dB | A-1 dB | A-2 dB | A-4 dB | A-8 dB | A-16 dB | A-63 dB |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.01 | 1.88 | -5.65 | -0.22 | -0.64 | -1.27 | -1.97 | -4.12 | -8.05 | -16.0 | -63.0 |
| 1.43 | 1.29 | -6.93 | -0.22 | -0.51 | -1.00 | -1.94 | -3.87 | -7.95 | -15.9 | -62.2 |
| 2.86 | 1.43 | -7.13 | -0.27 | -0.55 | -1.08 | -2.00 | -4.02 | -8.02 | -15.9 | -62.7 |
| 4.29 | 1.15 | -7.47 | -0.28 | -0.52 | -1.03 | -2.00 | -3.97 | -8.00 | -16.0 | -62.8 |
| 5.71 | 1.49 | -7.81 | -0.30 | -0.51 | -1.03 | -2.06 | -4.08 | -8.05 | -16.1 | -63.3 |
| 7.14 | 1.08 | -7.92 | -0.33 | -0.49 | -1.03 | -2.13 | -4.16 | -8.02 | -16.3 | -64.1 |
| 8.57 | 1.07 | -8.69 | -0.22 | -0.54 | -1.03 | -1.95 | -3.79 | -7.80 | -16.1 | -64.1 |
| 10.00 | 1.19 | -8.65 | -0.27 | -0.39 | -0.74 | -2.13 | -3.97 | -8.09 | -16.3 | -64.3 |
| 11.43 | 1.42 | -9.12 | -0.23 | -0.44 | -0.89 | -2.03 | -3.99 | -7.87 | -16.2 | 64.1 |
| 12.86 | 1.35 | -9.74 | -0.20 | -0.52 | -1.02 | -1.95 | -3.88 | -7.78 | -16.1 | -63.8 |
| 14.29 | 1.14 | -9.74 | -0.23 | -0.64 | -1.01 | -2.12 | -3.96 | -8.27 | -16.4 | -63.8 |
| 15.71 | 1.07 | -10.04 | -0.22 | -0.43 | -0.71 | -2.07 | -4.06 | -7.96 | -16.3 | -61.7 |
| 17.14 | 1.11 | -10.46 | -0.16 | -0.38 | -0.87 | -1.98 | -4.12 | -7.88 | -16.4 | -62.7 |
| 18.57 | 1.91 | -11.25 | -0.20 | -0.60 | -1.04 | -2.00 | -3.90 | -7.92 | -16.1 | -62.9 |
| 20.00 | 1.66 | -11.30 | -0.21 | -0.59 | -0.93 | -2.03 | -4.11 | -8.01 | -16.1 | -59.5 |
1、The device defaults as a TCP/ip server；
2、Default IP address: 192.168.1.100；
3、Default port number: 1000;
1. Clean the surface of the product, do not soak the product in a cleaning solution; 2. This product belongs to electrostatic sensitive devices. Pay attention to anti-static measures during installation or storage; 3. If the overall temperature is greater than 125 ℃, please consult with us before placing an order.
