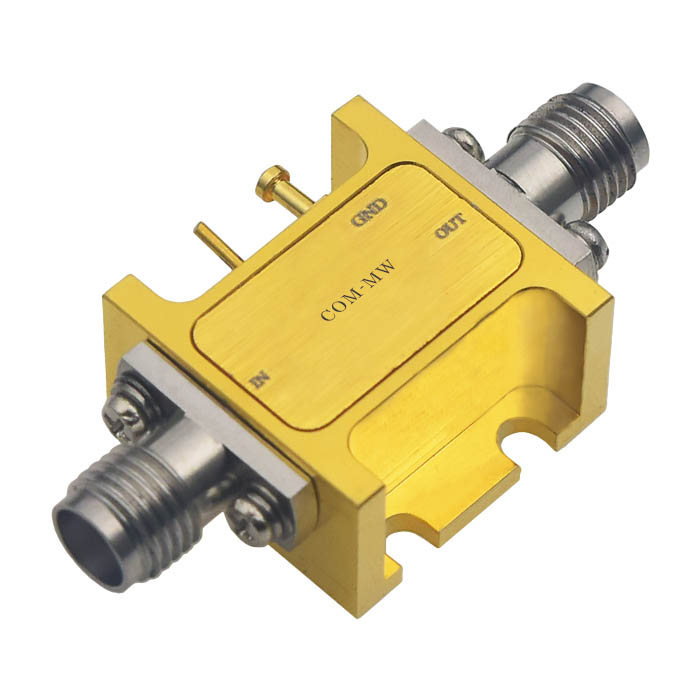

Output Frequency3~10GHz, Conversion loss11dBm, SMA-F, Two Frequency multiplier
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Input F | 1.5 | ~ | 5 | GHz |
| Output Frequency | 3 | ~ | 10 | GHz |
| Power | 11 | 13 | dBm | |
| Conversion loss | 11 | 12.5 | dBm | |
| Frequency doubling | 2 | |||
| Fundamental wave Rejection | 23 | 30 | dBc | |
| 3rd harmonic Rejection | 23 | 30 | dBc |
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Operation Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Two Frequency multiplier |
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Working or storage temperature less than 125 ℃;
