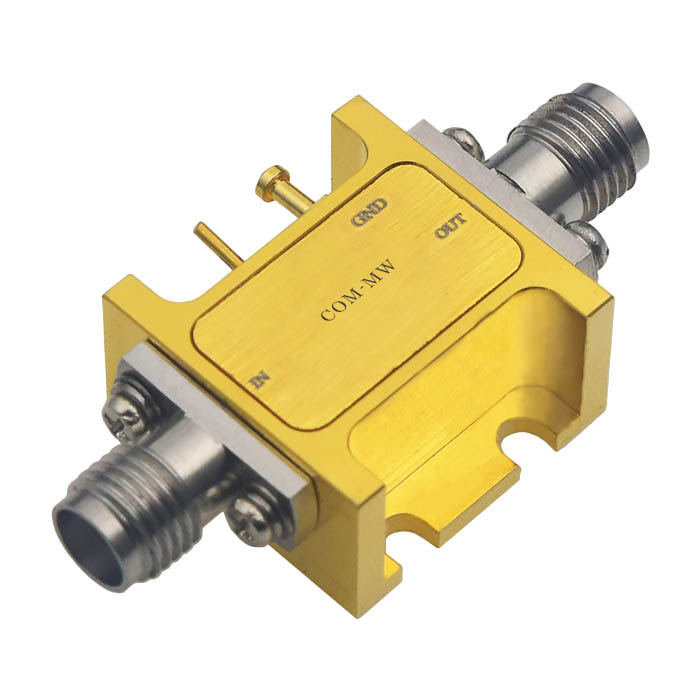

Output Frequency1~7GHz, Output power15dBm, SMA-F, Two Frequency multiplier
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Input F | 0.5 | ~ | 3.5 | GHz |
| Output Frequency | 1 | ~ | 7 | GHz |
| Power | -3 | dBm | ||
| Output power | 15 | dBm | ||
| Frequency doubling | 2 | |||
| Fundamental wave Rejection | 18 | dBc |
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +5V |
| Working current | 100mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Two Frequency multiplier |

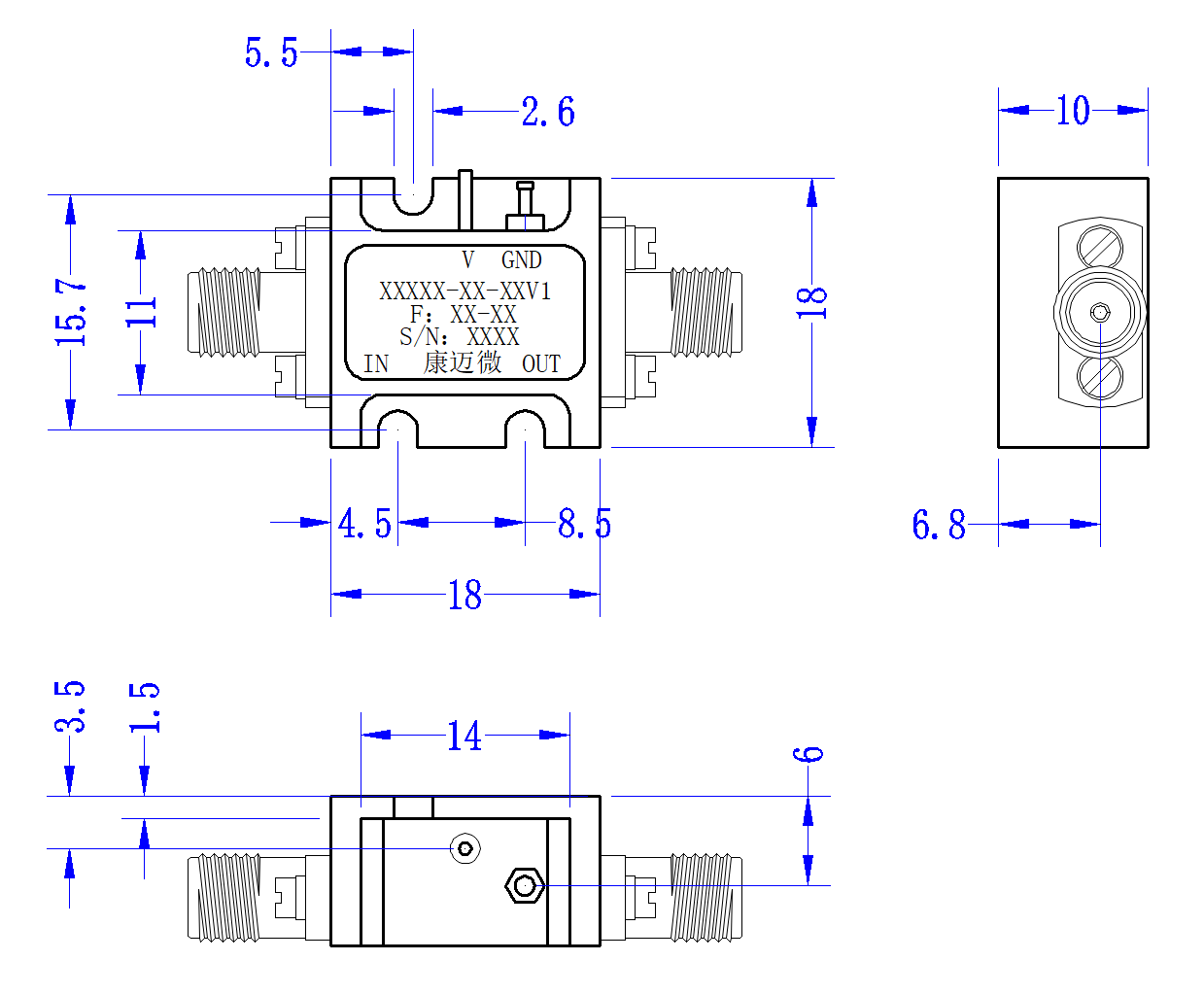

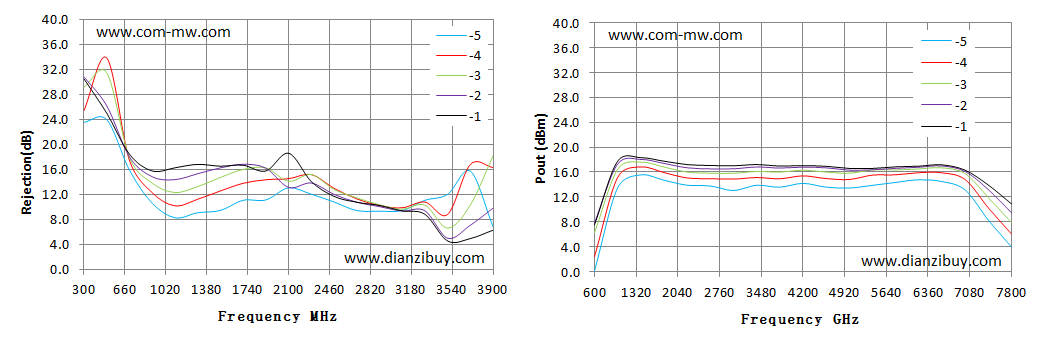

| Input F (MHz) | Fundamental wave Rejection (dBc) | Out put F (MHz) | Output power (dBm) |
|---|---|---|---|
| 300 | 29.25 | 600 | 6.25 |
| 500 | 31.5 | 1000 | 16.47 |
| 700 | 17.92 | 1400 | 17.61 |
| 900 | 13.86 | 1800 | 16.82 |
| 1100 | 13.38 | 2200 | 16.01 |
| 1300 | 13.33 | 2600 | 15.83 |
| 1500 | 14.79 | 3000 | 15.82 |
| 1700 | 16.07 | 3400 | 16.11 |
| 1900 | 16.31 | 3800 | 16.01 |
| 2100 | 14.17 | 4200 | 16.3 |
| 2300 | 15.25 | 4600 | 16.01 |
| 2500 | 12.86 | 5000 | 15.82 |
| 2700 | 11.53 | 5400 | 16.36 |
| 2900 | 10.41 | 5800 | 16.36 |
| 3100 | 9.7 | 6200 | 16.52 |
| 3300 | 10.35 | 6600 | 16.69 |
| 3500 | 6.7 | 7000 | 15.76 |
| 3700 | 10.39 | 7400 | 11.94 |
| 3900 | 18.29 | 7800 | 7.89 |
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Working or storage temperature less than 125 ℃;
