Working frequency LDC-2.0GHz, Working frequency H3.0-18.0GHz
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
High performance, ultra bandwidth
Low loss, high isolation
Small size, excellent performance
Customizable according to requirements
| Items | Parameters | Units |
|---|---|---|
| Working frequency L | DC-2.0 | GHz |
| Working frequency H | 3.0-18.0 | GHz |
| IL | <1.5 | dB |
| Ripple | <1.5 | dB |
| VSWR | <2.0:1 | |
| Reverse isolation | >6.0 | dBc |
| Rejection L | >60@3.0-18.0GHz | dB |
| Rejection H | >60@DC-2.0GHz | dB |

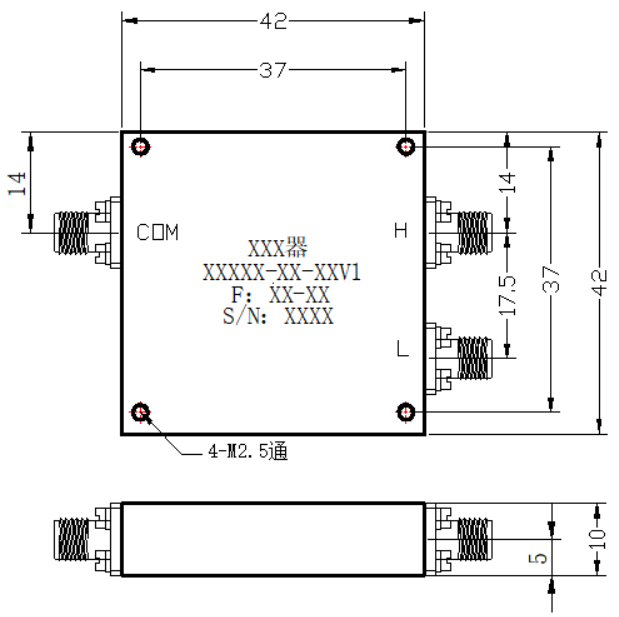

| Port form | SMA-K |
| surface treatment | Black paint |
| power | 5W CW |
| Operation Temp. | -40~+70℃ |
| Storage Temp. | -55~+85℃ |
/
2: Good grounding of products and systems to reduce electromagnetic interference and signal reflection;
/
/
