Working frequency LDC-2.6GHz, Working frequency H3.2-8.5GHz
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
High performance, ultra bandwidth
Low loss, high isolation
Small size, excellent performance
Customizable according to requirements
| Items | Parameters | Units |
|---|---|---|
| Working frequency L | DC-2.6 | GHz |
| Working frequency H | 3.2-8.5 | GHz |
| IL | <2.0 | dB |
| Ripple | <2.0 | dB |
| VSWR | <1.8:1 | |
| Rejection L | >40@3.2-8.5GHz | dB |
| Rejection H | >40@DC-2.6GHz | dB |
| power | 5W CW |
| Operation Temp. | -55~+85℃ |
| Storage Temp. | -55~+85℃ |

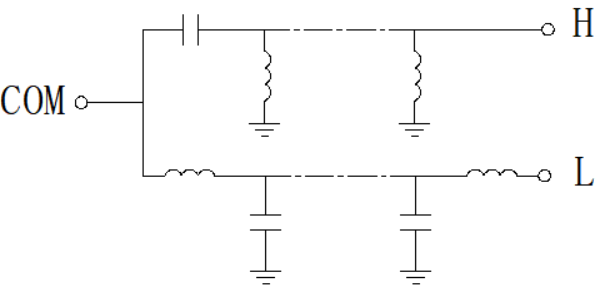

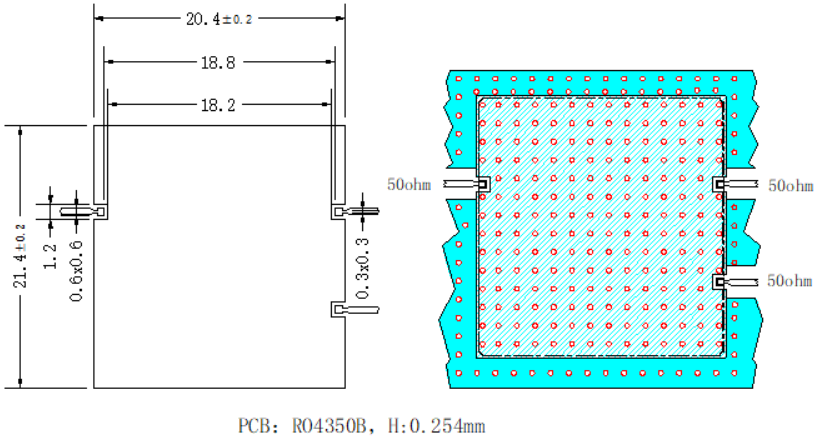

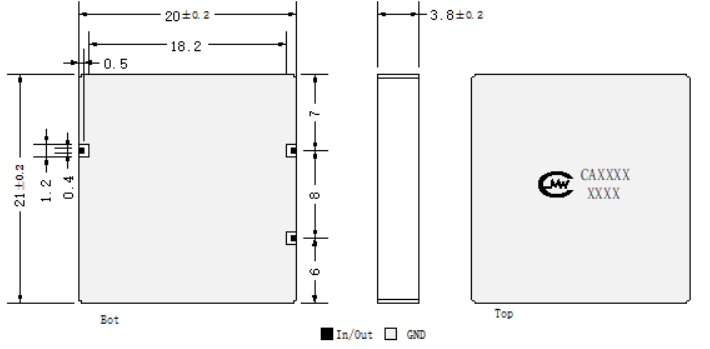

1:建议分腔使用，端口可互换，单侧距离侧壁1.0mm，表面距上盖2.0mm，支持260℃回流焊
2:表贴式滤波器的接地很重要，如果接地效果不理想，会对滤波器的电特性造成影响，尤其是带外抑制指标会明显变差，只有良好的接地和正常的安装才能发挥滤波器最佳性能，获得最佳效果
3:在清洗过程中滤波器不能长时间浸泡在清洗液中，清洗不应对滤波器性能、标识及焊点产生影响，清洗后放入40-50°的烤箱中，烘烤干燥20-30分钟
4:实际使用中空间对谐波抑制影响较大，在滤波器表面或壳体上填充吸收材料可获取更有效的谐波抑制
