Bandwidth13.6-16.0GHz, Rejection40@DC-11.0GHz, 40@18.0-28.0GHz
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Low insertion loss.
Small volume.
High power, low-temperature drift.

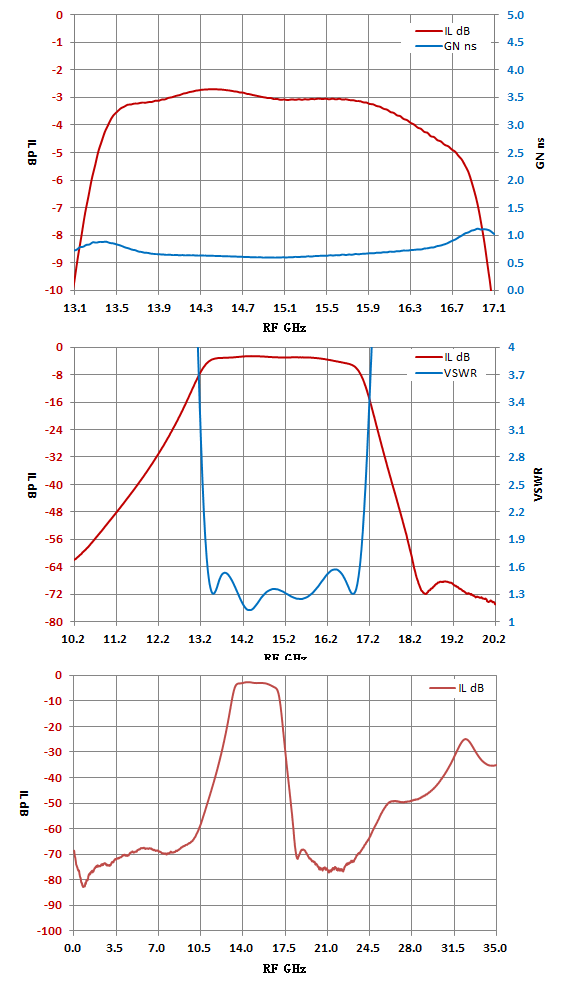

| Items | Parameters | Units |
|---|---|---|
| Center Frequency | 14.8 | GHz |
| Bandwidth | 13.6-16.0 | GHz |
| Center loss | 3.4 | dB |
| Ripple | 1.0 | dB |
| VSWR | 1.8:1 | |
| Group delay ripple | 1.0 | ns |
| Rejection | 40@DC-11.0GHz | dBc |
| Rejection | 40@18.0-28.0GHz | dBc |
| Impedance | 50Ω |
| Connector | SMA-K，SMA-J |
| power | 5W CW |
| Operation Temp. | -45~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |
1, Rotate the connector nut for connection during installation, do not rotate the filter or cable for connection.
2. The filter should not be immersed in cleaning solution during the cleaning process.
