Bandwidth9.0-9.2GHz, Rejection30@DC-8.4GHz, 20@9.6-9.8GHz, 40@13.0-22.0GHz
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

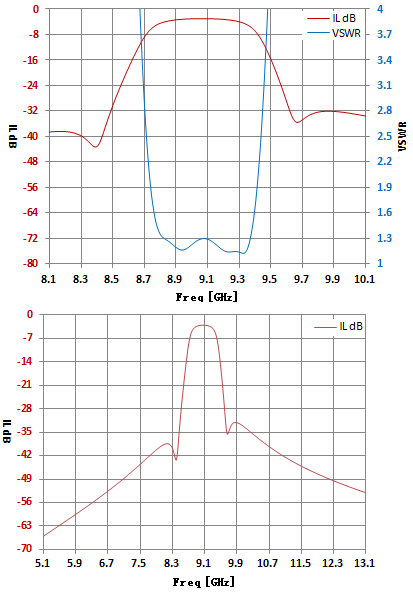

| Center Frequency | 9.1 | GHz |
|---|---|---|
| Bandwidth | 9.0-9.2 | GHz |
| IL | 4.5 | dB |
| Ripple | 1.0 | dB |
| VSWR | 1.8:1 | |
| Rejection | 30@DC-8.4GHz | dBc |
| Rejection | 20@9.6-9.8GHz | dBc |
| Rejection | 40@13.0-22.0GHz | dBc |
| power | 5W CW |
| Operation Temp. | -55~+85℃ |
| Storage Temp. | -55~+85℃ |
Low temperature drift, high power.

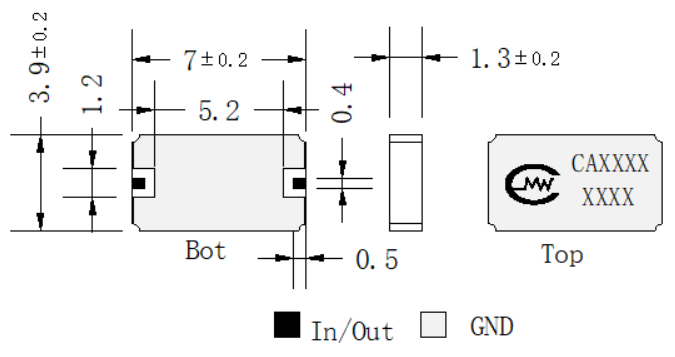

Small size, easy to integrate.
Technical parameters superior to LTCC filters.
Applied in fields such as radar, electronic countermeasures, and mobile communication.
