Bandwidth4.5-6.1GHz, Rejection10@1.1-2.1GHz, 30@6.6-7.2GHz
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Low temperature drift, high power.
Small size, easy to integrate.
Technical parameters superior to LTCC filters.
Applied in fields such as radar, electronic countermeasures, and mobile communication.
| Items | Parameters | Units |
|---|---|---|
| Center Frequency | 5.3 | GHz |
| Bandwidth | 4.5-6.1 | GHz |
| Center loss | 2.0 | dB |
| Ripple | 2.5 | dB |
| VSWR | 1.7:1 | |
| Group delay ripple | 1.0 | ns |
| Rejection | 10@1.1-2.1GHz | dBc |
| Rejection | 5@4.2GHz | dBc |
| Rejection | 30@6.6-7.2GHz | dBc |
| power | 5W CW |
| Operation Temp. | -55~+85℃ |
| Storage Temp. | -55~+85℃ |

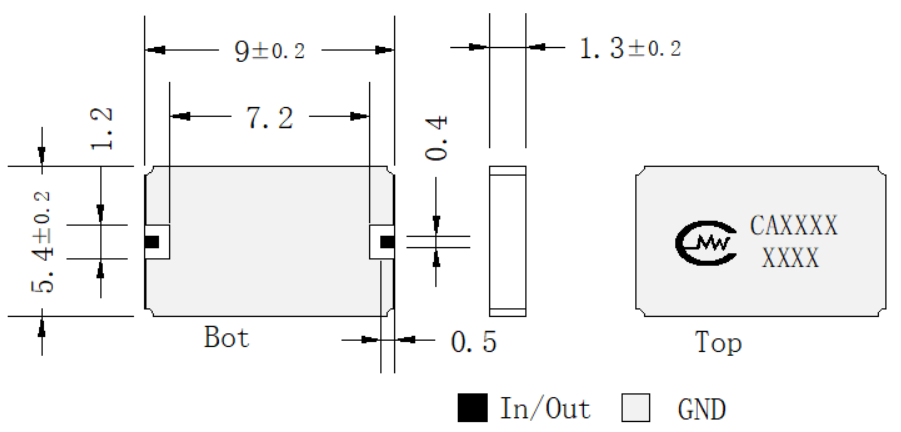

1: Suggest using separate chambers with interchangeable ports, with a distance of 1.0mm from the side wall on one side and a distance of 2.0mm from the top cover on the surface. Supports reflow soldering at 260 ℃;
2：表贴式滤波器的接地很重要，如果接地效果不理想，会对滤波器的电特性造成影响，尤其是带外抑制指标会明显变差，只有良好的接地和正常的安装才能发挥滤波器最佳性能，获得最佳效果;
3：在清洗过程中滤波器不能长时间浸泡在清洗液中，清洗不应对滤波器性能、标识及焊点产生影响，清洗后放入40-50°的烤箱中，烘烤干燥20-30分钟;
4：实际使用中空间对谐波抑制影响较大，在滤波器表面或壳体上填充吸收材料可获取更有效的谐波抑制：
