Bandwidth16.0-16.4GHz, Rejection40@DC-14.7GHz, 36@17.7-25.0GHz
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Low temperature drift, high power.
Small size, easy to integrate.
Technical parameters superior to LTCC filters.
Applied in fields such as radar, electronic countermeasures, and mobile communication.

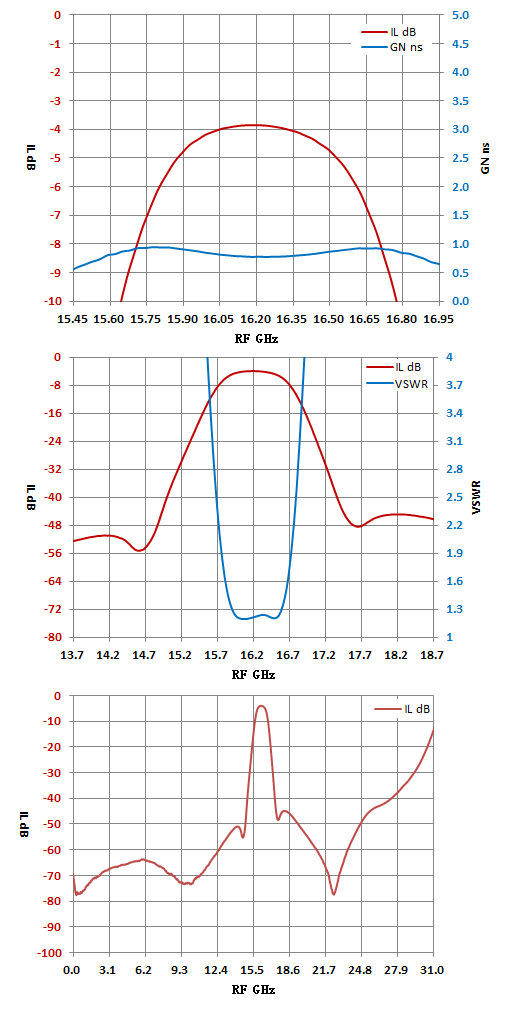

| Items | Parameters | Units |
|---|---|---|
| Center Frequency | 16.2 | GHz |
| Bandwidth | 16.0-16.4 | GHz |
| Center loss | 4.5 | dB |
| Ripple | 1.0 | dB |
| VSWR | 1.7:1 | |
| Group delay ripple | 0.5 | ns |
| Rejection | 40@DC-14.7GHz | dBc |
| Rejection | 36@17.7-25.0GHz | dBc |
| power | 5W CW |
| Operation Temp. | -55~+85℃ |
| Storage Temp. | -55~+85℃ |

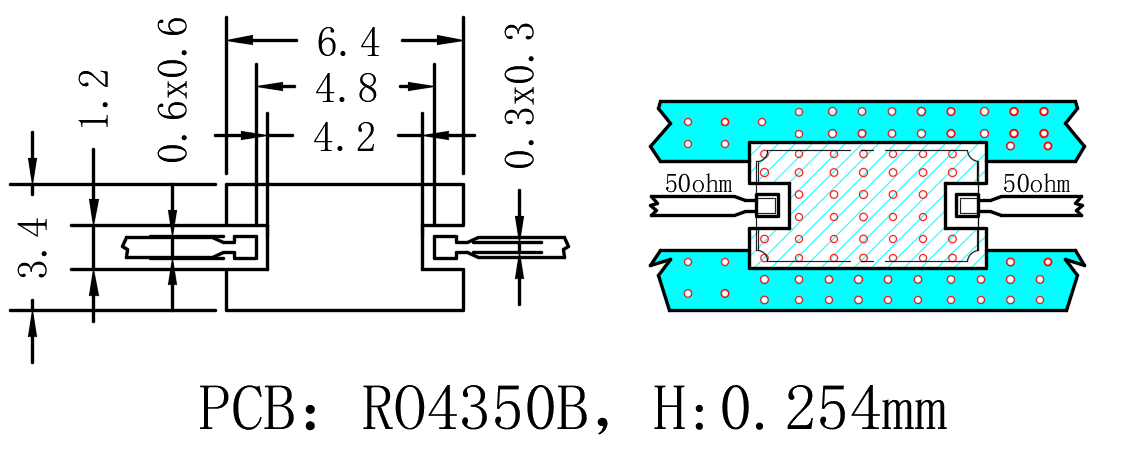

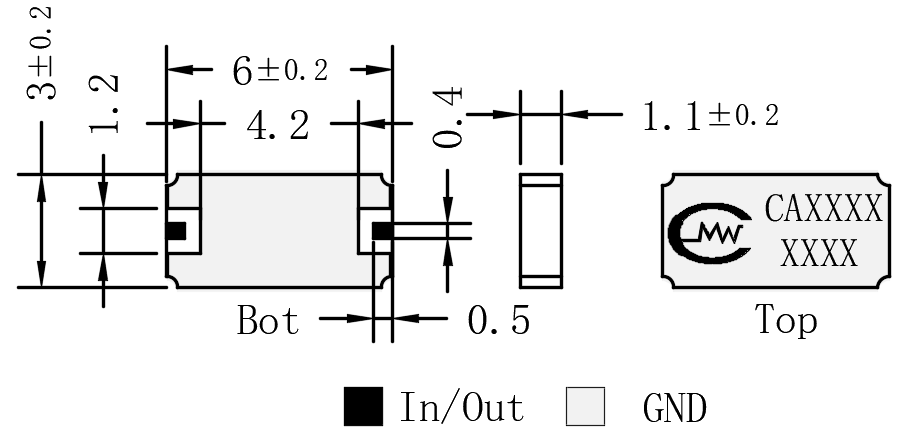

1. It is recommended to use it separately, with a distance of 1mm from the side wall and 2mm from the upper cover, It supports 260 ℃ reflow soldering;
2: Grounding is very important, only good grounding can maximize the performance of the filter;
3: During the cleaning process, the filter should not be immersed in the cleaning solution for a long time;
4: Filling absorbing material above the filter can achieve better harmonic suppression.
